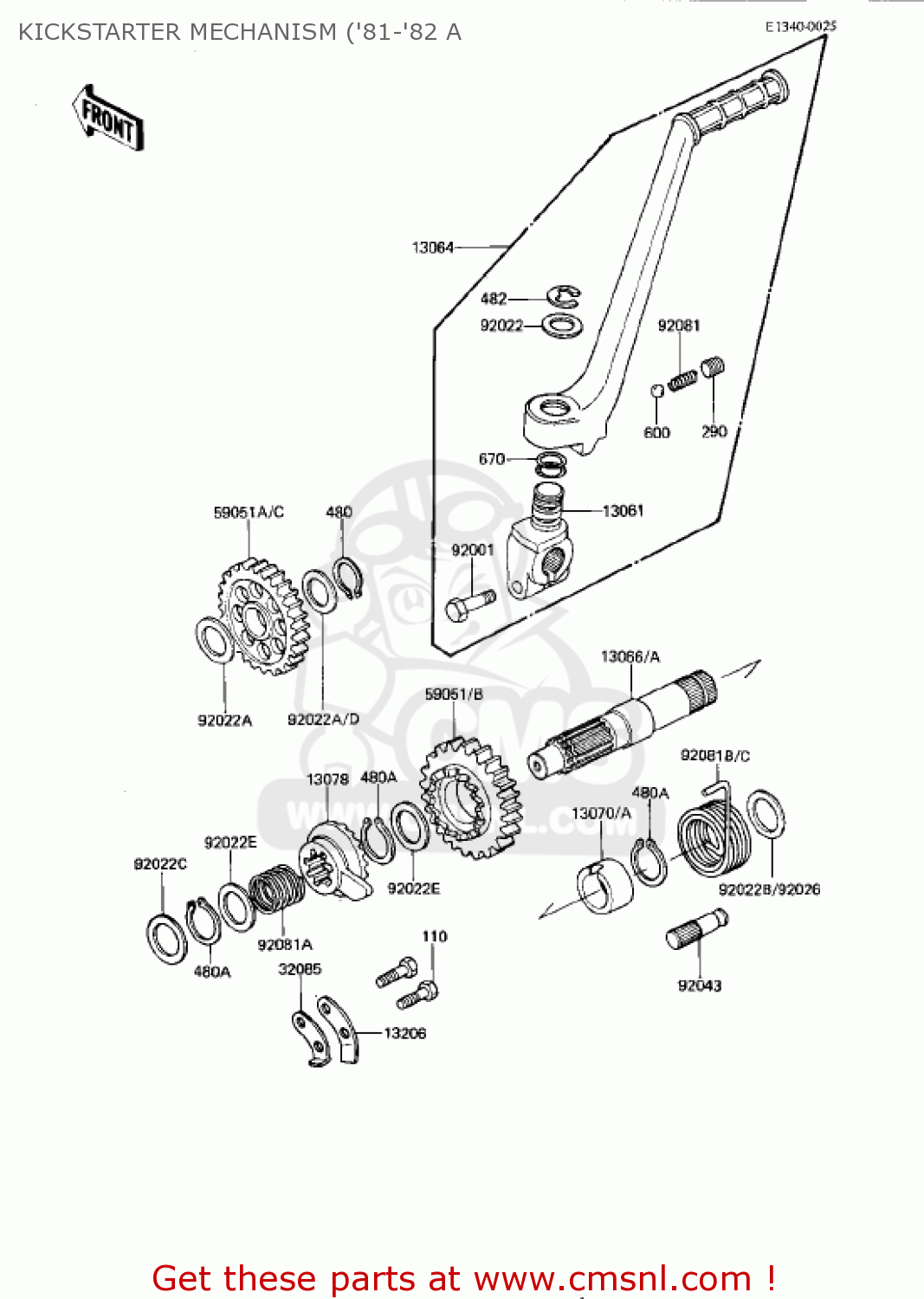

KICKSTARTER MECHANISM ('81-'82 A

ref

part #

description

quantity

13061

130615001
ref: 13061

BOSS,KICK PEDAL

€ 41.00

13064

130645005
ref: 13064

LEVER-ASSY-KICK PEDAL

€ 166.00

13066

130661014
ref: 13066

SHAFT,KICKSTARTER

€ 137.50

13066A

130661014
ref: 13066A

SHAFT,KICKSTARTER

€ 137.50

13070

13070008
ref: 13070

GUIDE,KICK SPRING

€ 6.00

13070A

130701063
ref: 13070A

GUIDE,KICK SPRING

€ 14.00

13078

130781052
ref: 13078

RATCHET,KL250-D2

€ 50.50

13206

132061059
ref: 13206

GUIDE-KICK

€ 7.00

32085

320851016
ref: 32085

STOPPER,KICKSTARTER

€ 5.50

59051

590511008
ref: 59051

GEAR-SPUR,KICK,25T

€ 83.00

59051A

590511009
ref: 59051A

GEAR-SPUR,IDLE,31T

€ 61.00

59051B

590511040
ref: 59051B

GEAR-SPUR,KICK,26T

€ 78.50

59051C

590511041
ref: 59051C

GEAR-SPUR,KICK,30T

€ 74.00

92001

920011042
ref: 92001

BOLT,HEX HEAD,8X28

€ 4.00

92022

920221019
ref: 92022

WASHER,15.2X20X1

€ 3.50

92022A

920221045
ref: 92022A

WASHER,15.3X25X0.5

€ 3.00

92022B

92022268
ref: 92022B

WASHER,16.3X24X1

€ 5.50

92022C

92022269
ref: 92022C

WASHER,PLAIN

€ 1.00

92022D

92022279
ref: 92022D

WASHER,15.3X25X1

€ 7.00

92022E

92022315
ref: 92022E

WASHER, 16.8X22X0.5

€ 4.00

92026

920261037
ref: 92026

SPACER,17.2X23X0.5

€ 2.50

92043

92043102
ref: 92043

PIN

€ 2.50

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

920811450
ref: 92081B

SPRING,KICK

€ 14.00

92081C

92082005
ref: 92081C

SPRING,KICKSTARTER

€ 13.50

110

112G0618
ref: 110

BOLT-UPSET

€ 0.50

290

290G0808
ref: 290

SCREW-SET-SOCKET,8X8

€ 0.00

480

480J1500
ref: 480

CIRCLIP-TYPE-C,15MM

€ 1.00

480A

480J1600
ref: 480A

CIRCLIP-TYPE-C,16MM

€ 2.50

480A

480J1600
ref: 480A

CIRCLIP-TYPE-C,16MM

€ 2.50

482

482K0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

670

670B2012
ref: 670

O RING,12MM

€ 1.00
