SUSPENSION/SHOCK ABSORBER
ZG1300A4 Z1300 1988 FG

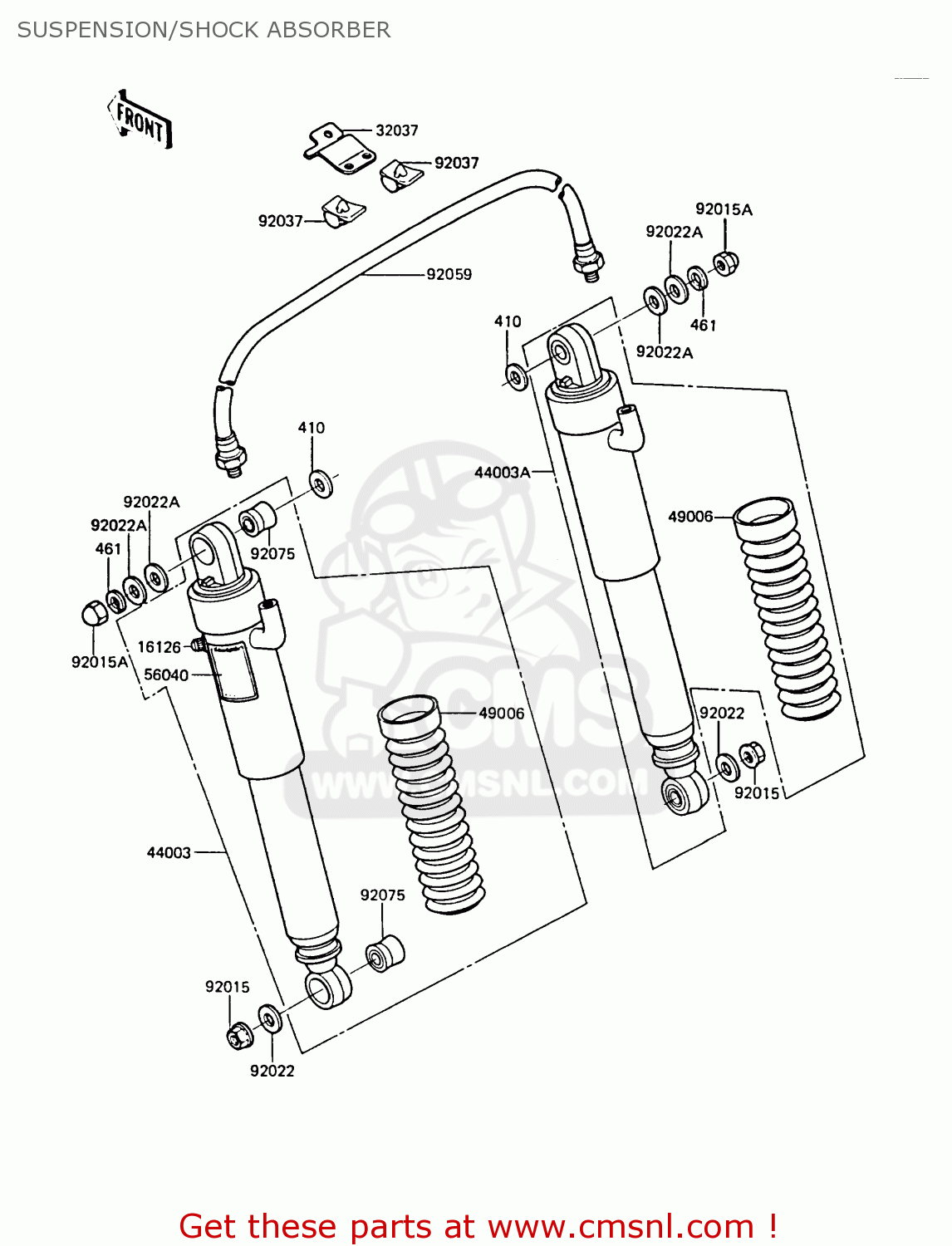

Suspension/shock absorber diagram ZG1300A4 Z1300 1988 FG
SUSPENSION/SHOCK ABSORBER ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
410
410B1400
ref: 410
410B1400
461
461F1200
ref: 461
WASHER-SPRING,12MM
€ 0.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
32037
320371138
ref: 32037
BRACKET-SHOCKABSORBER
€ 13.00
44003
440031508
ref: 44003
DAMPER-ASSY,SHOCKABSO
€ 485.00
44003A
440031509
ref: 44003A
DAMPER-ASSY,SHOCKABSO
€ 392.00
49006
490061092
ref: 49006
BOOT,SHOCKABSORBER,BL
€ 40.50
56040
560401117
ref: 56040
LABEL-WARNING,SHOCKAB
€ 2.50
92015
920151415
ref: 92015
NUT,10MM
€ 3.00
92015A
92020014
ref: 92015A
NUT,CAP,12MM
€ 6.50
92022
920221193
ref: 92022
WASHER,10.5X30X2.3
€ 4.50
92022A
920221562
ref: 92022A
WASHER,12.4X28X2.3
€ 3.00
92037
920371340
ref: 92037
CLAMP,LEAD WIRE
€ 7.50
92059
920591452
ref: 92059
TUBE,SHOCKABSORBER
€ 91.50
92075
920751141
ref: 92075
BUSHING,SHOCK ABSORBE
€ 10.00
