HEADLIGHT(S)
ZG1300A4 Z1300 1988 FG

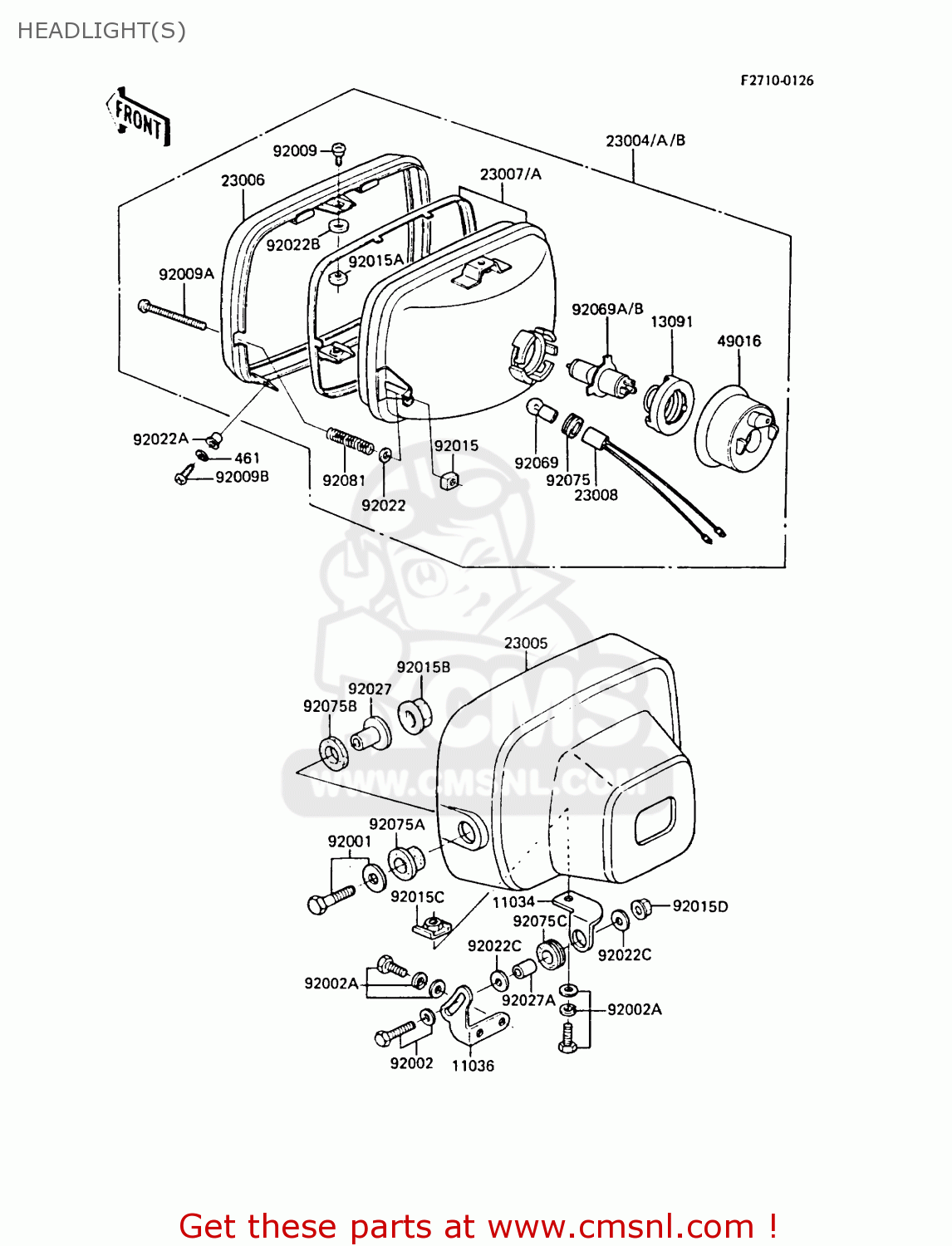

Headlight(s) diagram ZG1300A4 Z1300 1988 FG
HEADLIGHT(S) ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
11034
110341289
ref: 11034
BRACKET,HEAD LAMP BOD
€ 6.00
11036
110361042
ref: 11036
BRACKET-A,HEAD LAMP B
€ 6.00
13091
130911036
ref: 13091
HOLDER,HEAD LAMP SOCK
€ 12.50
23005
23005102421
ref: 23005
BODY-COMP-HEAD LAMP,F
€ 87.00
23006
230061005
ref: 23006
RIM-LAMP
€ 56.00
23007
230071042
ref: 23007
LENS-COMP,HEAD LAMP
€ 180.00
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
49016
490161023
ref: 49016
COVER-SEAL,HEAD LAMP
€ 11.50
92001
920011910
ref: 92001
BOLT,FLANGED,8X35
€ 4.50
92002
920021125
ref: 92002
BOLT,6X28
€ 2.50
92002A
920021257
ref: 92002A
BOLT,6X16
€ 0.50
92009
23019023
ref: 92009
SCREW-PAN HEAD,5X12
€ 3.50
92009A
920091047
ref: 92009A
SCREW,HEAD LAMP LENS
€ 3.00
92009B
92011024
ref: 92009B
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
23020020
ref: 92015A
NUT,5MM
€ 3.00
92015B
920151014
ref: 92015B
NUT,8MM
€ 0.50
92015C
920151050
ref: 92015C
NUT,HEAD LAMP BODY
€ 6.00
92015D
920151193
ref: 92015D
NUT,FLANGED,6MM
€ 0.50
92022
23021004
ref: 92022
WASHER,4.1X8X0.8
€ 2.00
92022A
23021010
ref: 92022A
WASHER
€ 2.50
92022B
23021012
ref: 92022B
WASHER
€ 3.00
92022C
92022125
ref: 92022C
WASHER,6.5X20X1.6
€ 1.00
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92075A
920751109
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 4.00
92075B
920751110
ref: 92075B
DAMPER,HEAD LAMP FITT
€ 3.00
92075C
92075209
ref: 92075C
DAMPER RUBBER
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
