OIL PAN/OIL FILTER
ZG1300A4 Z1300 1988 FG

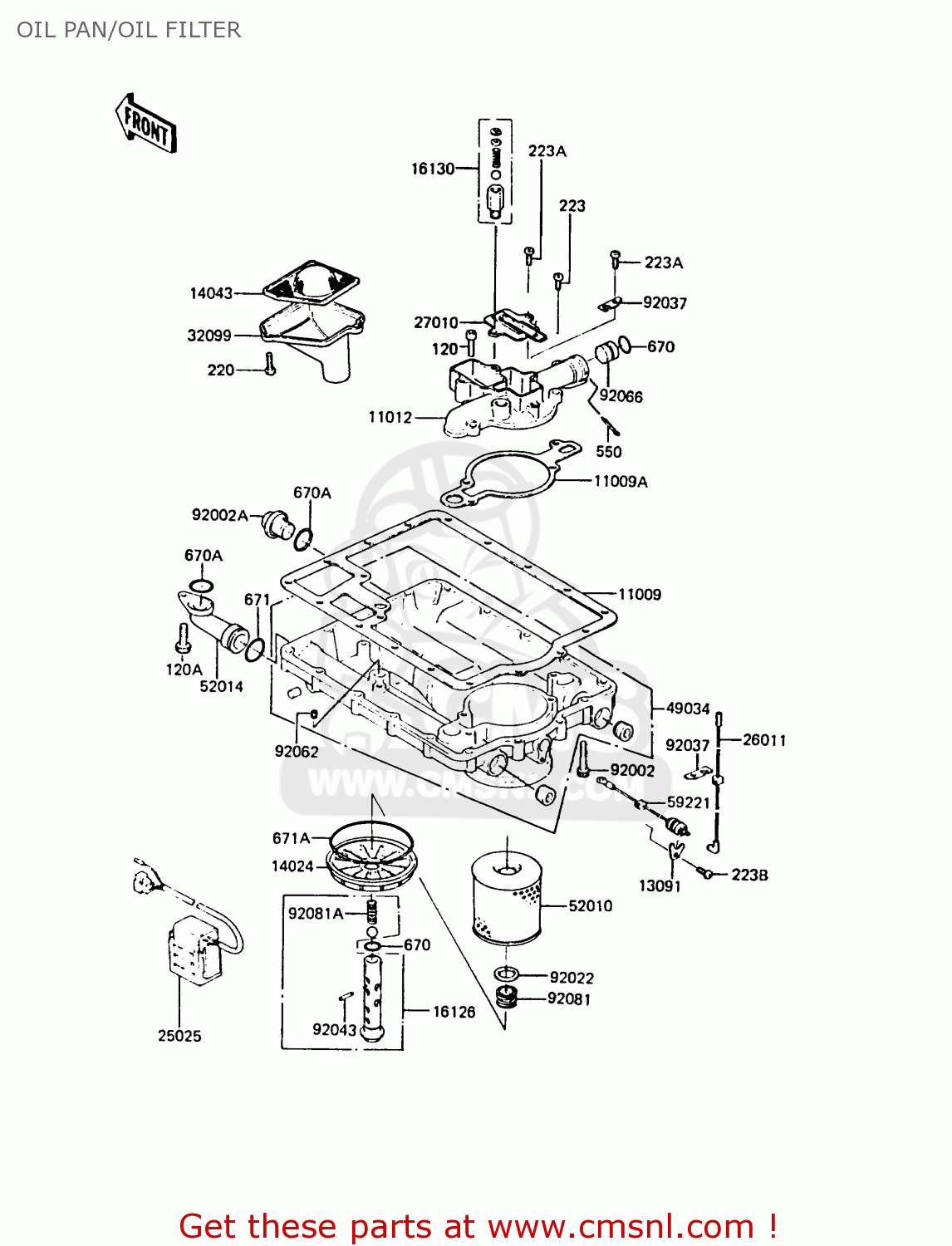

Oil pan/oil filter diagram ZG1300A4 Z1300 1988 FG
OIL PAN/OIL FILTER ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
120
120P0635
ref: 120
BOLT,SOCKET,6X35
€ 1.50
120A
120Z0620
ref: 120A
BOLT-SOCKET,6X20
€ 3.00
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
223
223B0406
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
223A
223B0614
ref: 223A
SCREW-KIT
€ 2.50
223B
223D0614
ref: 223B
SCREW-PAN-WS-CROS
€ 2.00
550
550D2040
ref: 550
PIN,COTTER,2.0X40
€ 1.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
670A
670B2022
ref: 670A
O RING,22MM
€ 3.00
671
671B2525
ref: 671
O RING,25MM
€ 3.00
671A
671B2595
ref: 671A
O RING,95MM
€ 4.50
11009
110091093
ref: 11009
GASKET,OIL PAN (MCA)
€ 22.50
11009A
110091198
ref: 11009A
GASKET,OIL FILTER (MCA)
€ 7.00
11012
110121148
ref: 11012
CAP,OIL FILTER
€ 40.50
13091
130911080
ref: 13091
HOLDER,CONNECTOR
€ 3.50
14024
140251170
ref: 14024
COVER,OIL FILTER
€ 35.00
14043
140431008
ref: 14043
FILTER,OIL
€ 17.50
16126
161261006
ref: 16126
BOLT ASSY,OIL FILTER
€ 39.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
25025
250251003
ref: 25025
WARNER,OIL LEVEL
€ 238.00
26011
260111262
ref: 26011
WIRE-LEAD,OIL SWITCH
€ 6.50
27010
270101038
ref: 27010
SWITCH,OIL LEVEL
€ 96.50
32099
320991017
ref: 32099
CASE,OIL FILTER
€ 24.00
49034
490345005
ref: 49034
PAN-OIL
€ 210.00
52010
16099002
ref: 52010
ELEMENT-OIL FILTER
€ 13.00
52014
520141002
ref: 52014
ELBOW,OIL PASSAGE
€ 31.50
59221
592211002
ref: 59221
CONNECTOR,OIL SW CORD
€ 65.50
92002
920021270
ref: 92002
BOLT,6X35
€ 2.50
92002A
920021276
ref: 92002A
BOLT,OIL DRAIN
€ 17.50
92022
920221012
ref: 92022
WASHER,20.5X30X1
€ 3.00
92037
920371211
ref: 92037
CLAMP,LEAD WIRE
€ 2.50
92043
92043111
ref: 92043
SPRING PIN
€ 4.00
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92066
920661023
ref: 92066
PLUG,OIL GALLARY,16X3
€ 3.50
92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 3.00
92081A
92081133
ref: 92081A
SPRING,PISTON
€ 5.50
