FRONT FORK
ZG1300A4 Z1300 1988 FG

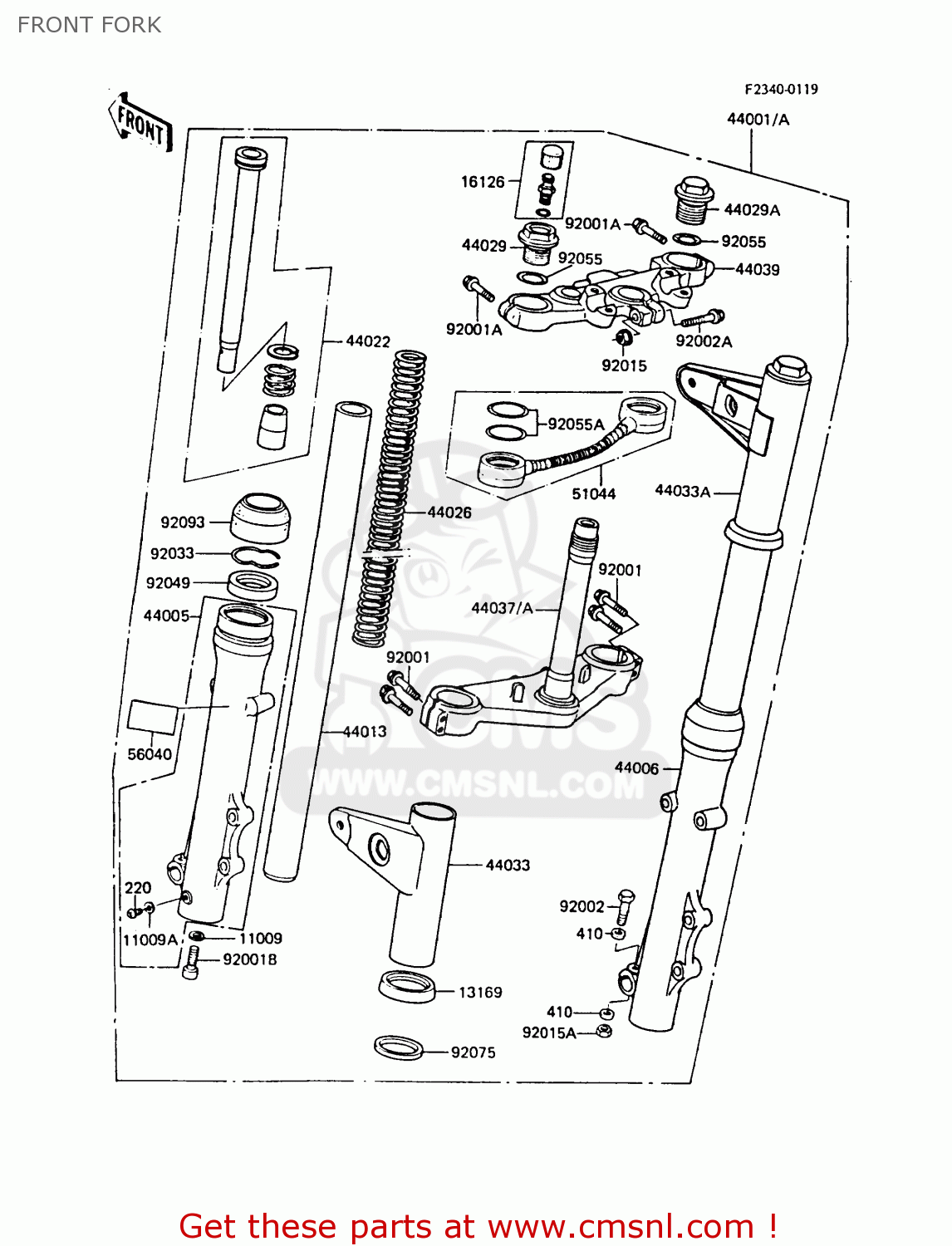

Front fork diagram ZG1300A4 Z1300 1988 FG
FRONT FORK ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
13169
131691163
ref: 13169
PLATE,FORK COVER,LWR
€ 6.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001A
440011537
ref: 44001A
FORK-FRONT
€ 1,434.00
44005
440051043
ref: 44005
PIPE-LEFT FORK OUTER
€ 406.00
44006
440061043
ref: 44006
TUBE,R.H,FORK OUTER
€ 364.00
44013
440131214
ref: 44013
PIPE-FORK INNER
€ 200.50
44022
440221163
ref: 44022
CYLINDER-FORK
€ 122.00
44026
440261269
ref: 44026
SPRING-FRONT FORK
€ 67.00
44029
440291047
ref: 44029
SEAT-FORK SPRING,LH
€ 31.00
44029A
440291048
ref: 44029A
SEAT-FORK SPRING,RH
€ 35.00
44033
440331164
ref: 44033
COVER-FORK,LH
€ 94.00
44033A
440331165
ref: 44033A
COVER-FORK,RH
€ 94.00
44037A
440371165
ref: 44037A
HOLDER-FORK UNDER
€ 367.00
44039
440391013
ref: 44039
HOLDER-FORK UPPER
€ 243.00
51044
510441025
ref: 51044
TUBE-ASSY,FRONT FORK
€ 99.50
56040
560401030
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92001
920011188
ref: 92001
BOLT,8X40
€ 5.50
92001A
920011189
ref: 92001A
BOLT,10X45
€ 6.00
92001B
920011309
ref: 92001B
BOLT,FORK CYLINDER
€ 4.50
92002
920021160
ref: 92002
BOLT,8X55
€ 6.00
92002A
920021161
ref: 92002A
BOLT,FLANGED,8X55
€ 3.00
92015
920151389
ref: 92015
NUT,FLANGED,8MM
€ 3.00
92015A
920151390
ref: 92015A
NUT,LOCK,8MM
€ 3.50
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491043
ref: 92049
OIL SEAL
€ 13.00
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92055A
920551106
ref: 92055A
RING-O,FORK AIR TUBE
€ 3.50
92075
920751155
ref: 92075
DAMPER,FORK COVER
€ 3.00
92093
920931023
ref: 92093
SEAL,FORK
€ 10.50
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
410
410D0800
ref: 410
WASHER-PLAIN,8MM
€ 2.00
