FOOTRESTS
ZG1300A4 Z1300 1988 FG

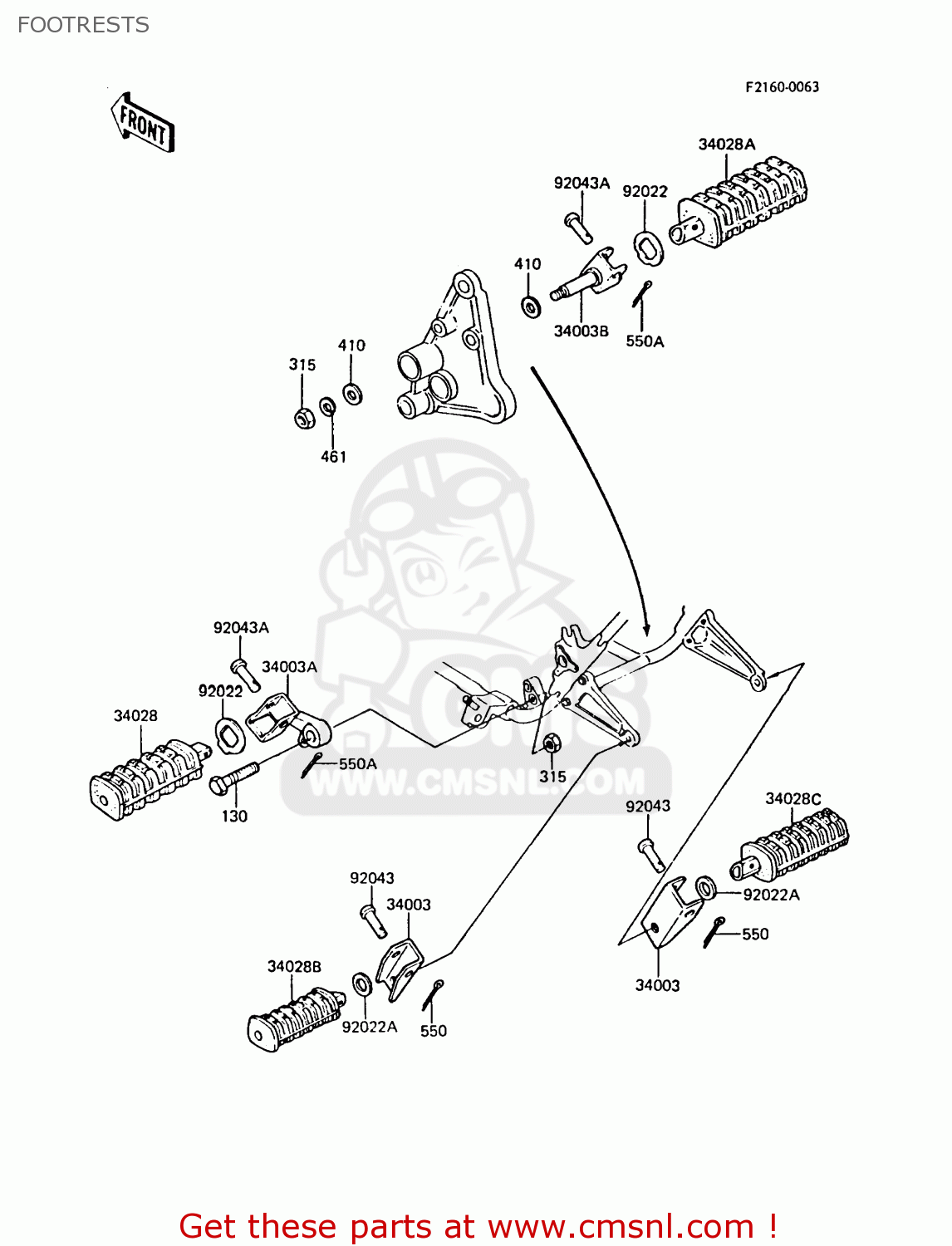

Footrests diagram ZG1300A4 Z1300 1988 FG
FOOTRESTS ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
130
130J1235
ref: 130
BOLT-FLANGED
€ 3.50
315
315B1200
ref: 315
NUT,12MM
€ 0.50
410
410B1200
ref: 410
WASHER-PLAIN-SMALL,12
€ 0.50
461
461F1200
ref: 461
WASHER-SPRING,12MM
€ 0.50
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
34003
340031025
ref: 34003
HOLDER-STEP,RR
€ 18.00
34003A
340031029
ref: 34003A
HOLDER-STEP,FR,LH
€ 41.00
34003B
340031030
ref: 34003B
HOLDER-STEP,FR,RH
€ 41.00
34028
340281015
ref: 34028
STEP,FR,LH
€ 59.50
34028A
340281016
ref: 34028A
STEP,FR,RH
€ 59.50
34028B
340281128
ref: 34028B
STEP,LH
€ 26.50
34028C
340281129
ref: 34028C
STEP,RH
€ 26.50
92022
920221096
ref: 92022
WASHER,LOCK
€ 3.00
92022A
920221514
ref: 92022A
WASHER,STEP FITTING
€ 3.50
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92043A
92043080
ref: 92043A
PIN-FOOTREST BAR FIT
€ 3.50
