CLUTCH
ZG1300A4 Z1300 1988 FG

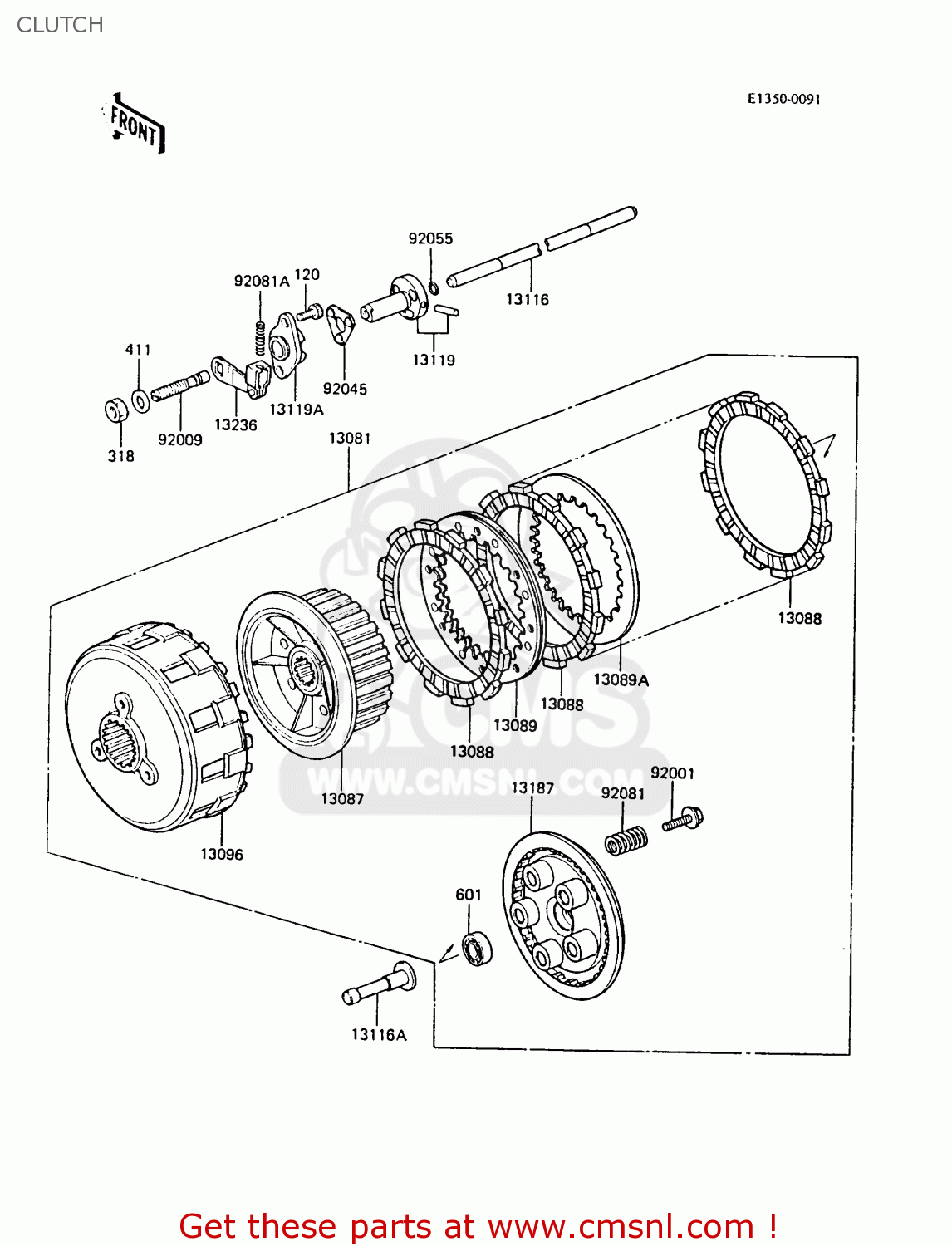

Clutch diagram ZG1300A4 Z1300 1988 FG
CLUTCH ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
120
120P0614
ref: 120
BOLT,6X14
€ 3.00
318
318B0800
ref: 318
NUT,8MM
€ 0.50
411
411B0800
ref: 411
WASHER-PLAIN,8MM
€ 0.50
601
601B6001
ref: 601
BALL BEARING,#6001C3
€ 15.50
13081
130811172
ref: 13081
CLUTCH-ASSY
€ 356.50
13087
130871055
ref: 13087
HUB-CLUTCH
€ 139.00
13088
130881018
ref: 13088
PLATE-FRICTION (NAS)
€ 15.00
13089
130891056
ref: 13089
PLATE-CLUTCH (NAS)
€ 20.00
13089A
130891057
ref: 13089A
PLATE-CLUTCH (NAS)
€ 6.50
13096
130961059
ref: 13096
HOUSING-CLUTCH
€ 277.00
13116
131161050
ref: 13116
ROD-PUSH,CLUTCH
€ 22.00
13116A
131161108
ref: 13116A
ROD-PUSH
€ 16.50
13119
131191007
ref: 13119
CAM-RELEASE,CLUTCH,IN
€ 38.50
13119A
131191008
ref: 13119A
CAM-RELEASE,CLUTCH,OU
€ 34.50
13187
131871015
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 51.50
13236
132361055
ref: 13236
LEVER-COMP,CLUTCH REL
€ 8.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92009
920091052
ref: 92009
SCREW,CLUTCH RELEASE
€ 9.50
92045
920451023
ref: 92045
BEARING-BALL,CLUTCH R
€ 8.00
92055
92055087
ref: 92055
0RING
€ 1.00
92081
920811033
ref: 92081
SPRING,CLUTCH
€ 6.50
92081A
920811532
ref: 92081A
SPRING,COIL,9.7X95
€ 3.00
