FRONT MASTER CYLINDER
ZG1300A4 Z1300 1988 FG

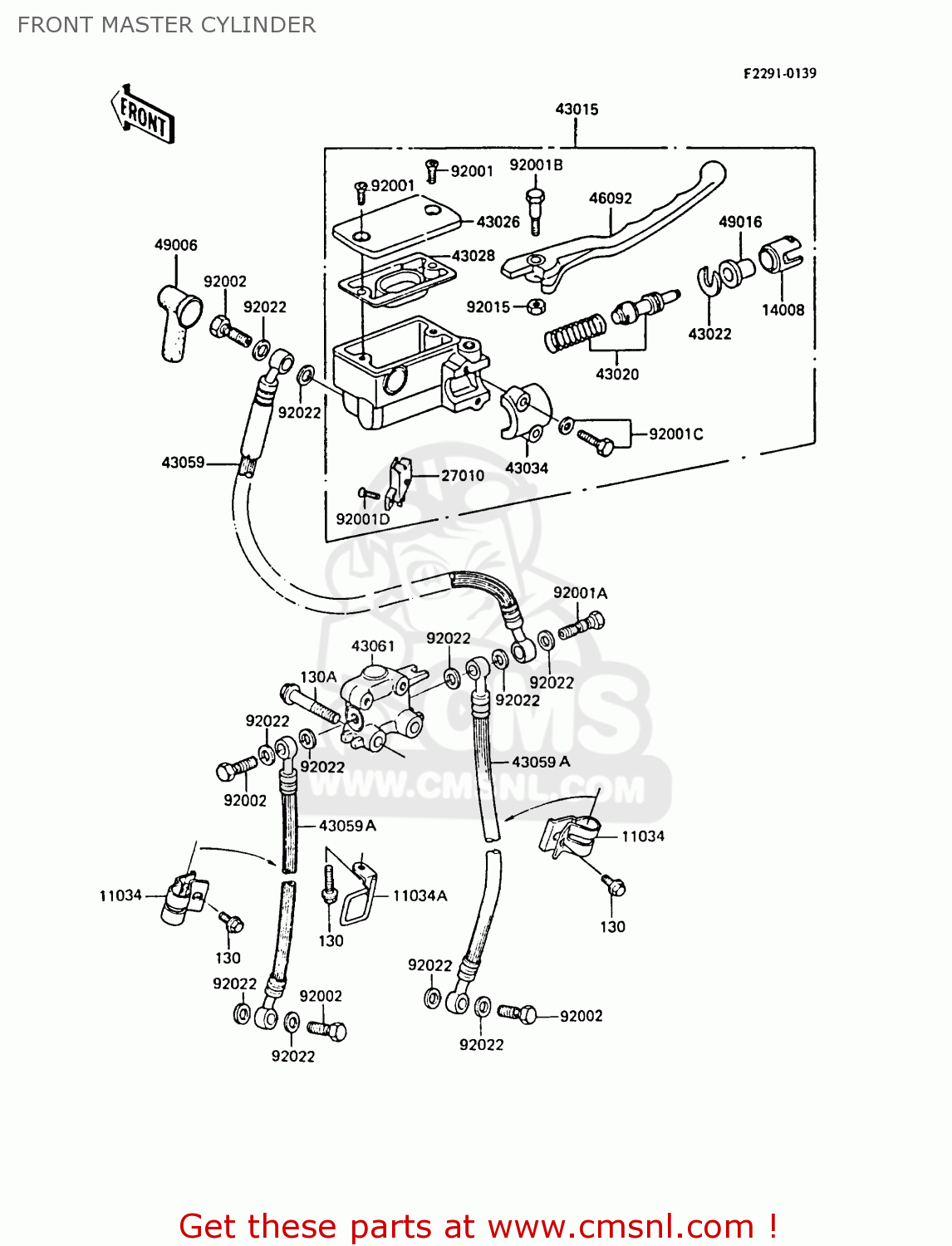

Front master cylinder diagram ZG1300A4 Z1300 1988 FG
FRONT MASTER CYLINDER ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
130
130B0608
ref: 130
BOLT,FLANGED,6X8
€ 0.50
130A
130G0845
ref: 130A
BOLT,FLANGET,8X45
€ 1.00
11034
110341284
ref: 11034
BRACKET,BRAKE HOSE
€ 7.00
11034A
110341285
ref: 11034A
BRACKET,SPEEDOMETER C
€ 8.00
14008
140081035
ref: 14008
LINER,PISTON
€ 8.00
27010
270101056
ref: 27010
SWITCH,BRAKE
€ 24.50
43015
430151088
ref: 43015
CYLINDER-ASSY-MASTER,
€ 275.00
43020
430201079
ref: 43020
PISTON-COMP-BRAKE
€ 59.00
43022
430221009
ref: 43022
STOPPER-BRAKE,PISTON
€ 3.50
43026
430261018
ref: 43026
CAP-BRAKE,FR
€ 26.50
43028
430281029
ref: 43028
DIAPHRAGM,MASTER CYLI
€ 17.50
43034
430341013
ref: 43034
HOLDER-BRAKE,MASTER C
€ 20.00
43059
430591265
ref: 43059
HOSE-BRAKE,L=350
€ 68.50
43059A
430591275
ref: 43059A
HOSE-BRAKE,L=530
€ 74.50
43061
430611001
ref: 43061
JOINT-BRAKE
€ 38.50
46092
460921026
ref: 46092
LEVER-GRIP,FRONT BRAK
€ 15.00
49006
490061041
ref: 49006
BOOT,DUST
€ 7.50
49016
490161041
ref: 49016
COVER-SEAL,BRAKE PIST
€ 8.50
92001
920011055
ref: 92001
SCREW,COUNTERSUNK HED
€ 3.50
92001A
920011203
ref: 92001A
BOLT,OIL
€ 8.50
92001B
920011512
ref: 92001B
BOLT,6X37.3,BLACK
€ 5.50
92001C
920011513
ref: 92001C
BOLT,BOLT,6X25,W/WASH
€ 3.00
92001D
920011532
ref: 92001D
SCREW-COUNTERSUNK
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
€ 3.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
