FRAME
ZG1300A4 Z1300 1988 FG

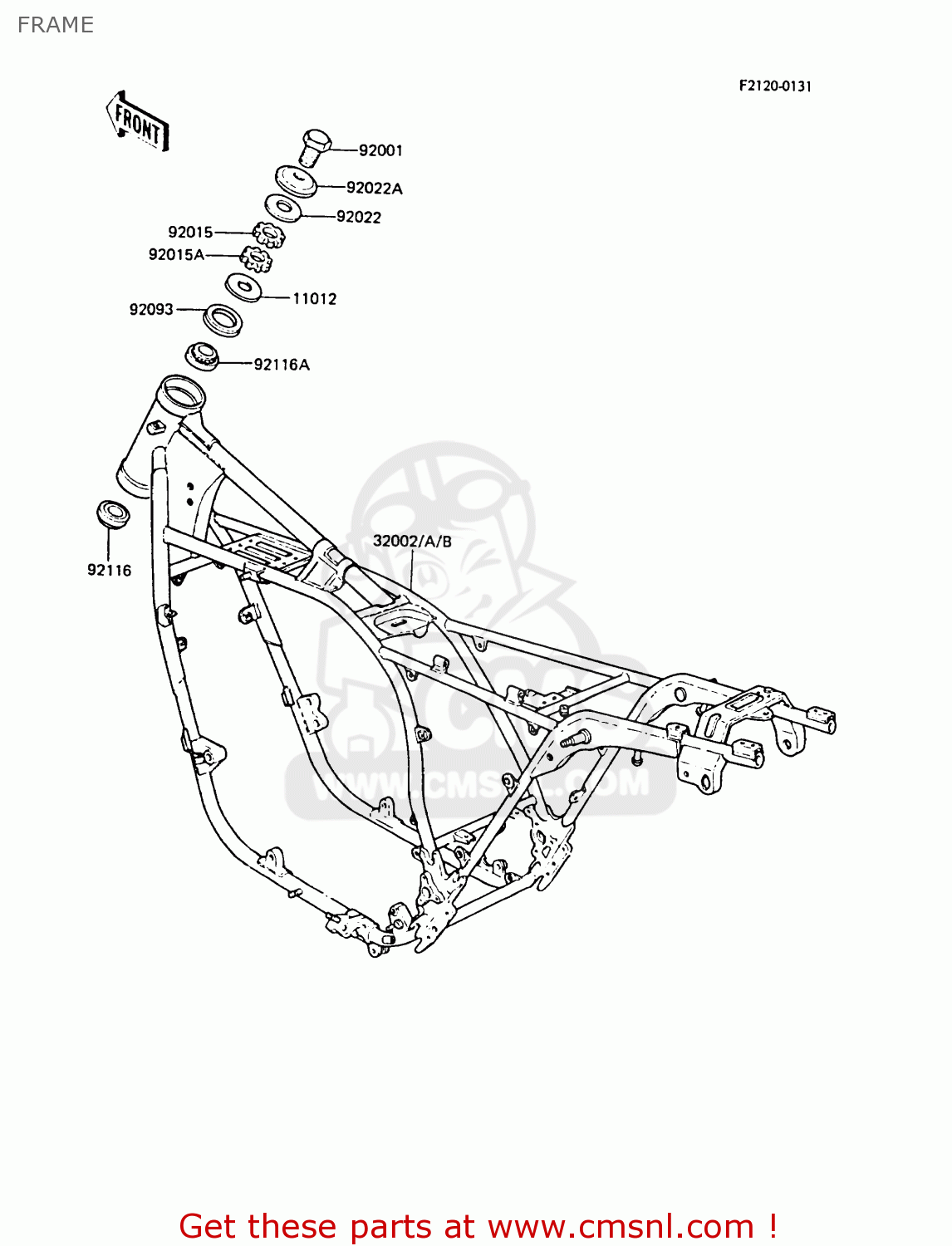

Frame diagram ZG1300A4 Z1300 1988 FG
FRAME ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
11012
110121206
ref: 11012
CAP,STEERING
€ 3.00
32002A
320021664
ref: 32002A
FRAME-COMP
€ 1,171.00
92001
92007031
ref: 92001
BOLT-STEERG STEM HEAD
€ 17.50
92015
920151417
ref: 92015
NUT,28MM,T=6
€ 7.50
92015A
920151418
ref: 92015A
NUT,28MM,T=8.5
€ 13.50
92022
46100003
ref: 92022
WASHER,WAVE
€ 6.50
92022A
92022230
ref: 92022A
WASHER-STEERG STM HD
€ 7.50
92093
920931070
ref: 92093
SEAL,STEERING
€ 5.50
92116
921161008
ref: 92116
BEARING-ROLLER,LWR,32
€ 78.00
92116A
921161009
ref: 92116A
BEARING R,HR320/28XJ
€ 41.00
