HANDLEBAR
ZG1300A4 Z1300 1988 FG

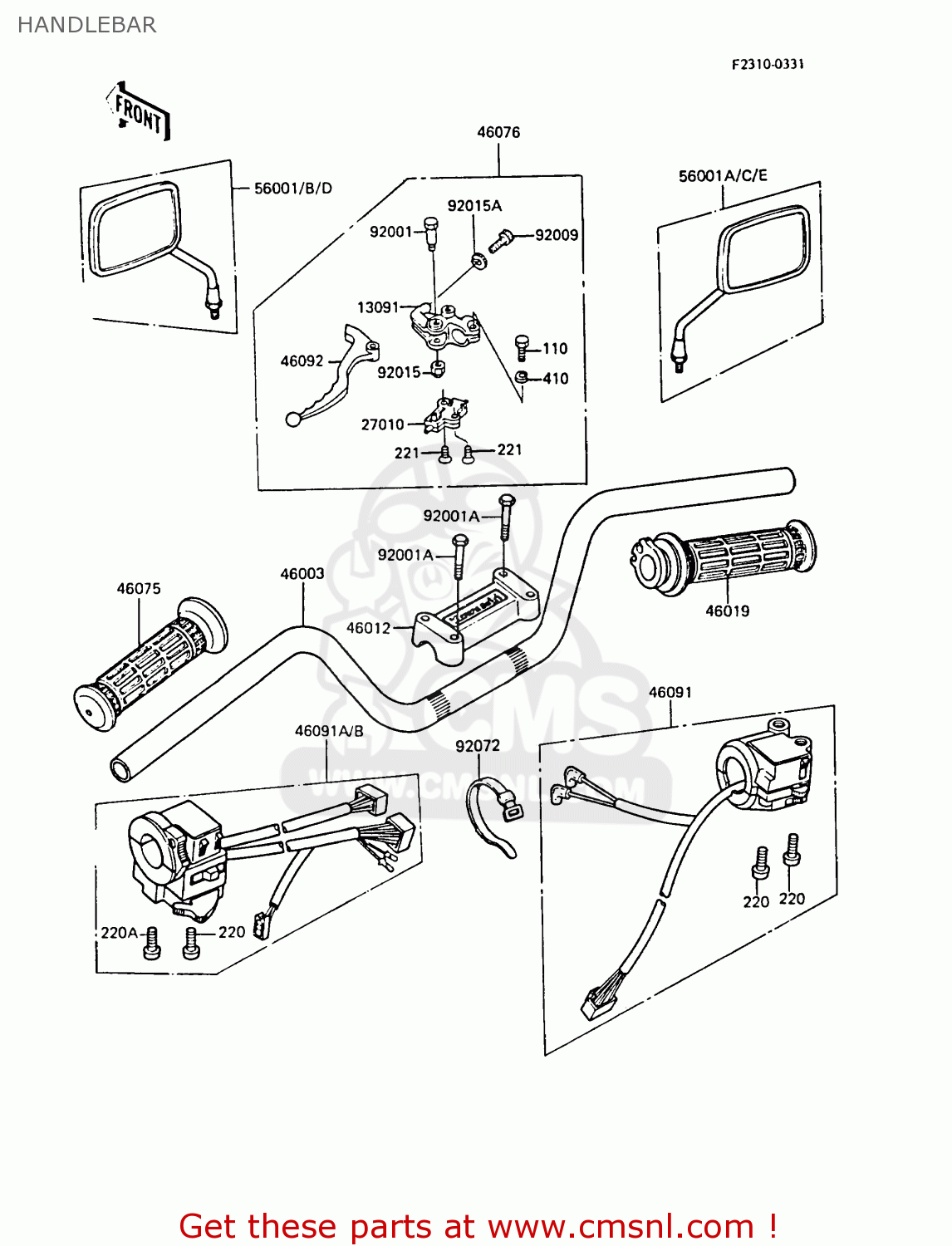

Handlebar diagram ZG1300A4 Z1300 1988 FG
HANDLEBAR ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
110
110C0622
ref: 110
BOLT,6X22,BLACK
€ 3.00
220
220B0535
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0545
ref: 220A
SCREW-PAN HEAD,5X45
€ 1.50
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
13091
130911254
ref: 13091
HOLDER,CLUTCH LEVER
€ 28.00
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
46003
460031040
ref: 46003
HANDLE,SEMI-LOW
€ 103.00
46012
460121007
ref: 46012
HOLDER,HANDLEBAR
€ 22.50
46019
460191013
ref: 46019
GRIP-ASSY,THROTTLE
€ 20.50
46075
460751020
ref: 46075
GRIP,LH
€ 11.50
46076
460761121
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 48.00
46091
460911321
ref: 46091
HOUSING-ASSY-CONTROL,
€ 141.50
46091A
460911419
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 253.00
46092
460921101
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.50
56001
560011063
ref: 56001
REAR VIEW MIRROR,L.H
€ 128.50
56001A
560011064
ref: 56001A
REAR VIEW MIRROR,R.H
€ 128.50
92001
920011548
ref: 92001
BOLT,CLUTCH LEVER,BLA
€ 5.50
92001A
920011910
ref: 92001A
BOLT,FLANGED,8X35
€ 4.50
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
