GEAR CHANGE DRUM/SHIFT FORK(S)

ZG1300A4 Z1300 1988 FG

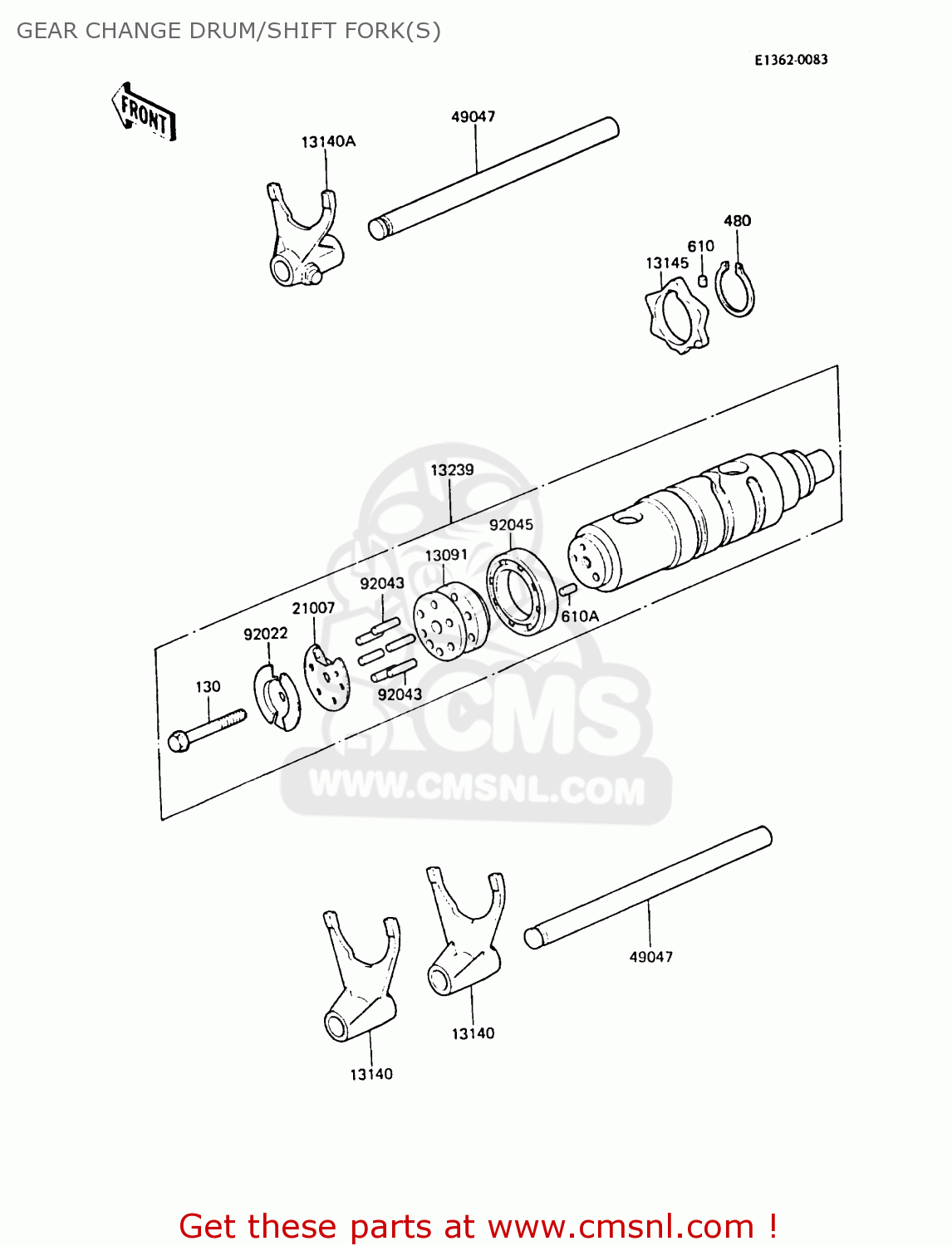

Gear change drum/shift fork(s) diagram ZG1300A4 Z1300 1988 FG

prices are in EUR

ref

part #

description

quantity

130

130G0635
ref: 130

BOLT, FLANGED, 6X35

€ 0.50

480

480J3000
ref: 480

CIRCLIP-TYPE-C,30MM

€ 3.50

610

610A0406
ref: 610

ROLLER,4X6

€ 2.50

610A

610A0408
ref: 610A

ROLLER,4X8

€ 2.50

13091

130911113
ref: 13091

HOLDER,BEARING

€ 34.00

13140

131401050
ref: 13140

FORK-SHIFT,LOW,2ND &

€ 100.00

13140A

131401051
ref: 13140A

FORK-SHIFT,4TH & TOP

€ 73.00

13145

131451058
ref: 13145

CAM-CHANGE DRUM

€ 15.00

13239

132391109
ref: 13239

DRUM-ASSY-CHANGE

€ 206.00

21007

210071070
ref: 21007

ROTOR,NEUTRAL

€ 2.50

49047

490471008
ref: 49047

ROD,SHIFT,12X173

€ 20.50

92022

920221399
ref: 92022

WASHER,NEUTRAL ROTOR

€ 2.50

92043

92042020
ref: 92043

PIN-GEAR CHANGE DRUM

€ 3.00

92045

920451016
ref: 92045

BEARING-BALL,#6906

€ 29.00

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
