METER(S)
ZG1300A4 Z1300 1988 FG

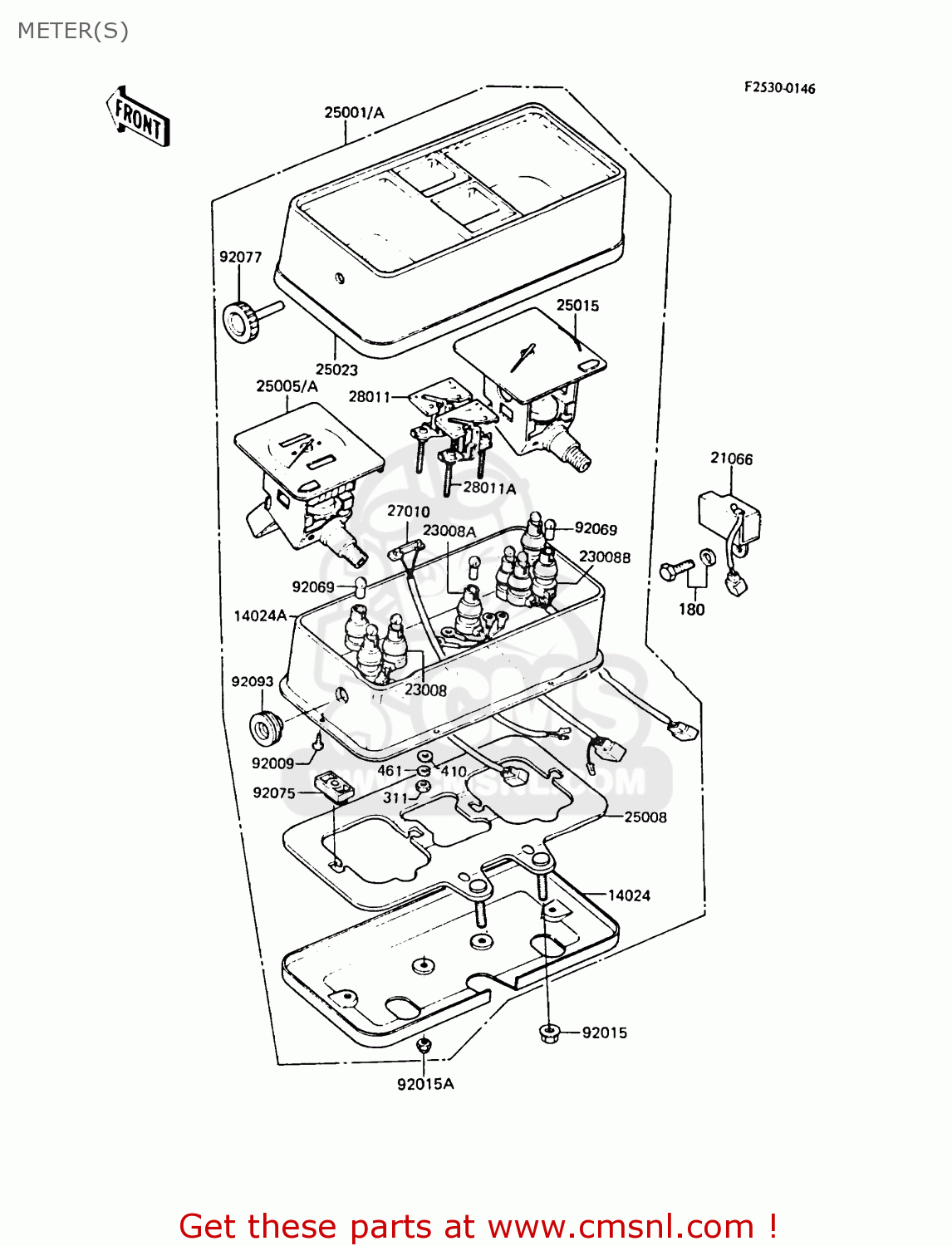

Meter(s) diagram ZG1300A4 Z1300 1988 FG
METER(S) ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
311
311B0400
ref: 311
NUT-HEX,4MM
€ 0.50
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
14024
140251098
ref: 14024
COVER,METER,LWR
€ 30.50
14024A
140251805
ref: 14024A
COVER,METER HOUSING
€ 120.00
21066
210661006
ref: 21066
REGULATOR,VOLTAGE
€ 75.50
23008
230081132
ref: 23008
SOCKET-ASSY,SPEEDOMET
€ 33.50
23008A
230081133
ref: 23008A
SOCKET-ASSY,FUEL METE
€ 21.00
23008B
230081213
ref: 23008B
SOCKET-ASSY,METER
€ 51.50
25001
250011505
ref: 25001
METER-ASSY,KPH
€ 2,498.50
25005A
250051051
ref: 25005A
SPEEDOMETER,KPH
€ 207.00
25008
250081015
ref: 25008
BRACKET,METER
€ 39.50
25015
250151206
ref: 25015
TACHOMETER,(X1000R/MI
€ 176.00
25023
250231010
ref: 25023
COVER-METER CASE,UPP
€ 131.00
27010
270101032
ref: 27010
SENSOR,DISTANCE
€ 20.50
28011
280111003
ref: 28011
METER,FUEL
€ 88.00
28011A
280111007
ref: 28011A
METER,TEMPERATURE
€ 101.00
92009
92008012
ref: 92009
SCREW,TAPPING
€ 2.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92075
920751140
ref: 92075
DAMPER,METER BRACKET
€ 3.50
92077
920771008
ref: 92077
KNOB,TRIP
€ 4.50
92093
920931029
ref: 92093
SEAL,TRIP KNOB
€ 2.50
