CHASSIS ELECTRICAL EQUIPMENT
ZG1300A4 Z1300 1988 FG

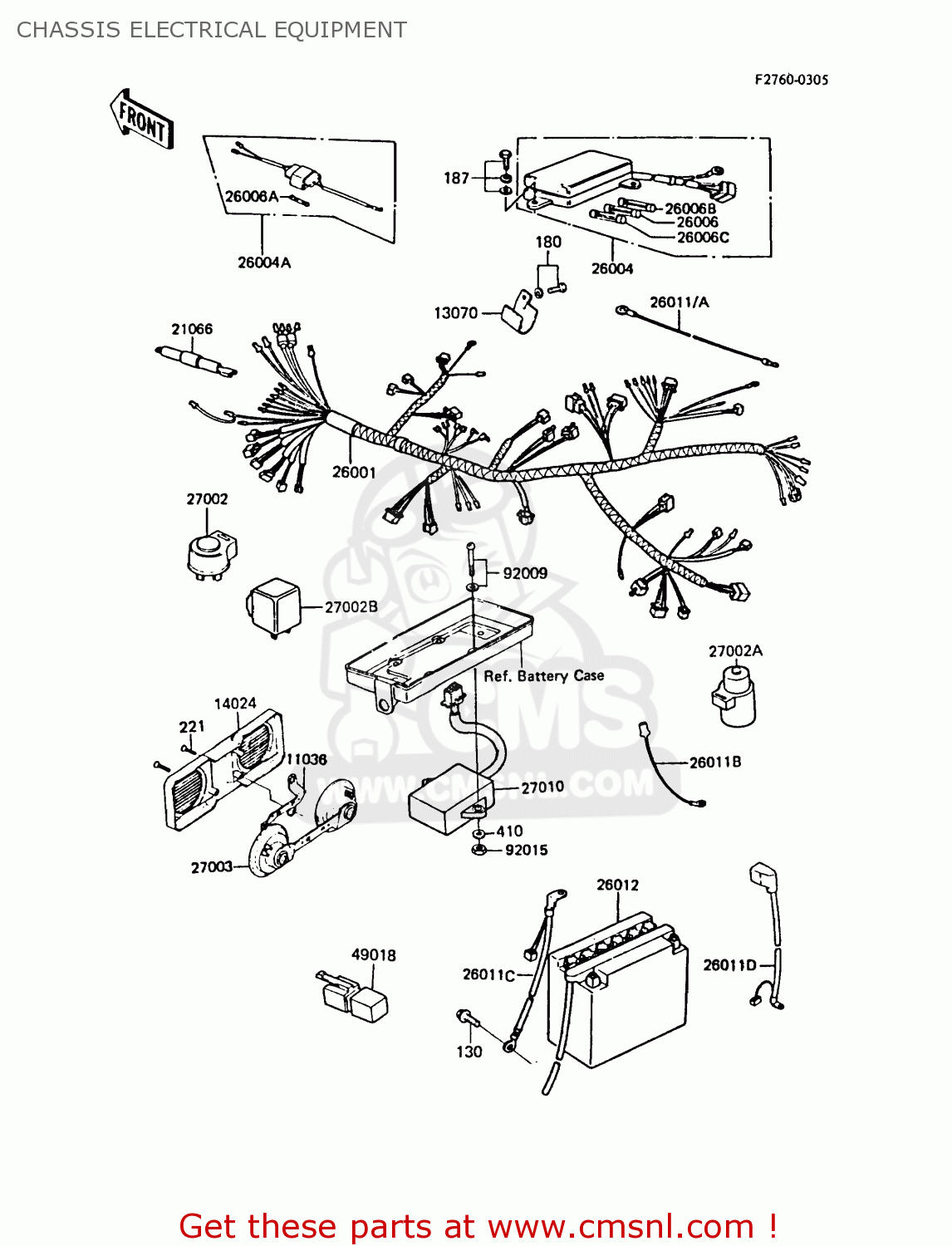

Chassis electrical equipment diagram ZG1300A4 Z1300 1988 FG
CHASSIS ELECTRICAL EQUIPMENT ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
187
187B0612
ref: 187
BOLT-UPSET-WSP
€ 0.50
221
221C0430
ref: 221
SCREW-CSK-CROS
€ 2.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
11036
110361028
ref: 11036
BRACKET-A,HORN
€ 10.00
13070
130701022
ref: 13070
GUIDE,MAIN HARNESS
€ 6.00
14024
140251310
ref: 14024
COVER,HORN
€ 26.00
21066
21066026
ref: 21066
REGULATOR-VOLTAGE
€ 13.00
26001
260011589
ref: 26001
HARNESS,MAIN
€ 353.50
26004
260041009
ref: 26004
FUSE ASSY
€ 55.00
26004A
260041018
ref: 26004A
FUSE-ASSY
€ 40.50
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
260061002
ref: 26006A
FUSE,10A,L=30M/M
€ 3.00
26006B
260061004
ref: 26006B
FUSE,2A,L=25M/M
€ 2.50
26006C
260061005
ref: 26006C
FUSE,30A,L=25M/M
€ 3.00
26011
26011063
ref: 26011
WIRE-LEAD,L=185
€ 5.00
26011A
26011095
ref: 26011A
WIRE-LEAD,L=285
€ 8.00
26011B
260111100
ref: 26011B
WIRE-LEAD,ACCESSORY G
€ 7.00
26011C
260111265
ref: 26011C
WIRE-LEAD,BATTERY(-)
€ 23.50
26011D
260111275
ref: 26011D
WIRE-LEAD,BATTERY(+)
€ 23.50
26012
260121012
ref: 26012
BATTERY,12V 20AH
€ 79.50
27002A
270021051
ref: 27002A
RELAY-ASSY
€ 32.00
27002B
270021060
ref: 27002B
RELAY-ASSY,TURN SIGNA
€ 65.50
27003
270031037
ref: 27003
HORN
€ 124.50
27010
270101077
ref: 27010
SWITCH,TURN SIGNAL OP
€ 55.00
49018
490181052
ref: 49018
DIODE
€ 35.50
92009
920091274
ref: 92009
SCREW,6X35
€ 2.00
92015
92017013
ref: 92015
NUT,LOCK,8MM
€ 5.50
