Genuine ZG Kawasaki Parts delivered quickly!


FRAME FITTINGS

ZG1300A4 Z1300 1988 FG

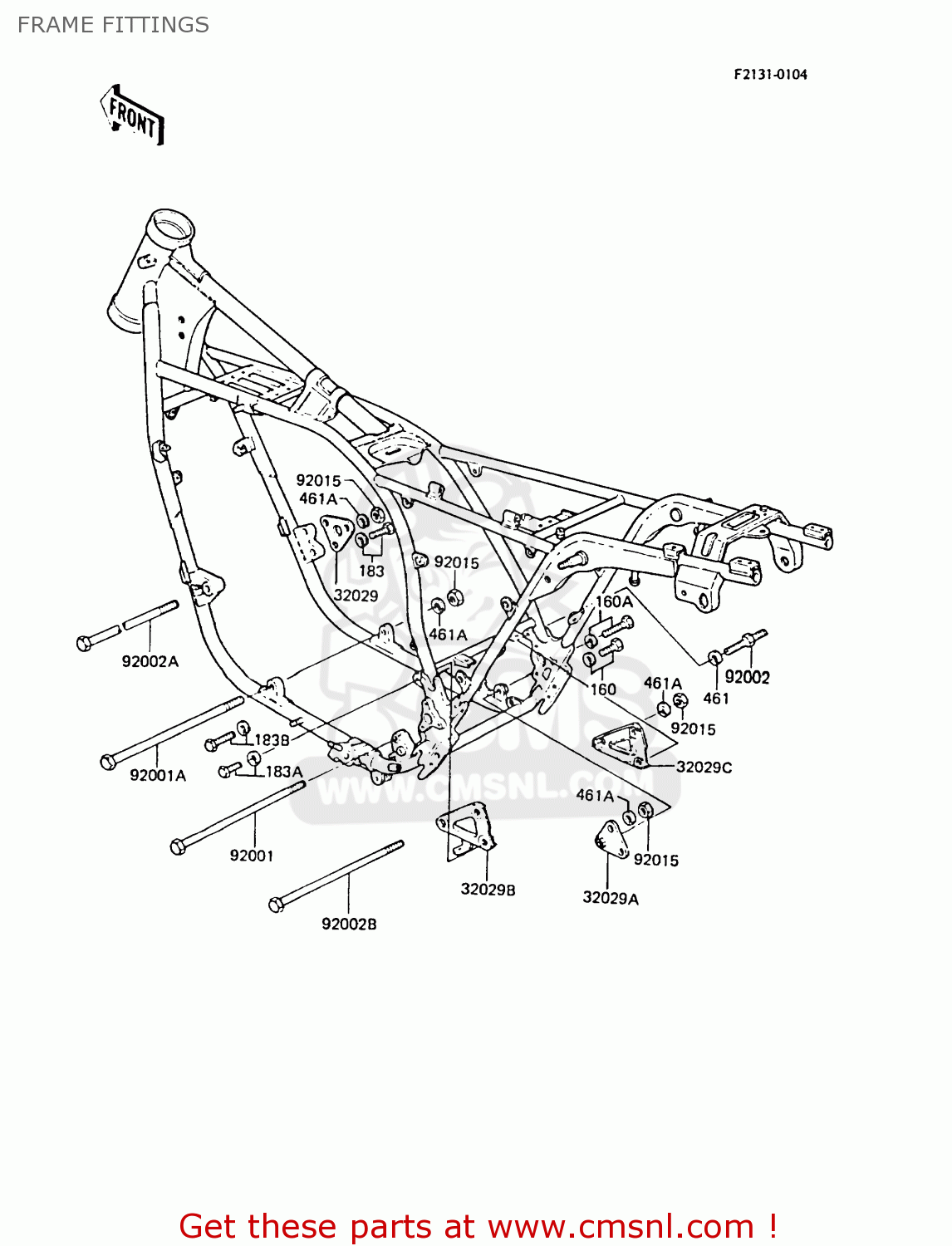

Frame fittings diagram ZG1300A4 Z1300 1988 FG

FRAME FITTINGS ZG1300A4 Z1300 1988 FG
FRAME FITTINGS ZG1300A4 Z1300 1988 FG
FRAME FITTINGS ZG1300A4 Z1300 1988 FG
prices are in EUR
ref
part #
description
quantity
160
160G1016
ref: 160
BOLT-FINE-WS
€ 2.00
160A
160G1040
ref: 160A
BOLT-FINE-WS
€ 3.00
183
183J0822
ref: 183
BOLT-UPSET-WS-SMALL
€ 3.00
183A
183J0825
ref: 183A
BOLT-UPSET-WS-SMALL
€ 3.00
183B
183J0840
ref: 183B
BOLT-UPSET-WS-SMALL
€ 3.00
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
461K0800
€ 1.50
461A
461K1000
ref: 461A
461K1000
32029
320291061
ref: 32029
BRACKET-ENGINE,FR,RH,
€ 7.00
32029A
320291062
ref: 32029A
BRACKET-ENGINE,FR,RH,
€ 9.50
32029B
320291063
ref: 32029B
BRACKET-ENGINE,RR,UPP
€ 25.00
32029C
320291064
ref: 32029C
BRACKET-ENGINE,RR,UPP
€ 21.00
92001
920011992
ref: 92001
BOLT,FLANGED,10X305
€ 16.50
92001A
920011993
ref: 92001A
BOLT,FLANGED,10X315
€ 16.50
92002
920021205
ref: 92002
BOLT,ENGINE BRACKET,8
€ 3.50
92002A
920021207
ref: 92002A
BOLT,10X370
€ 14.00
92002B
920021458
ref: 92002B
BOLT,FLANGED,10X287
€ 10.00
92015
920151189
ref: 92015
NUT,LOCK,10MM,BLACK
920151189
€ 4.50
