BATTERY CASE
ZG1300A4 Z1300 1988 FG

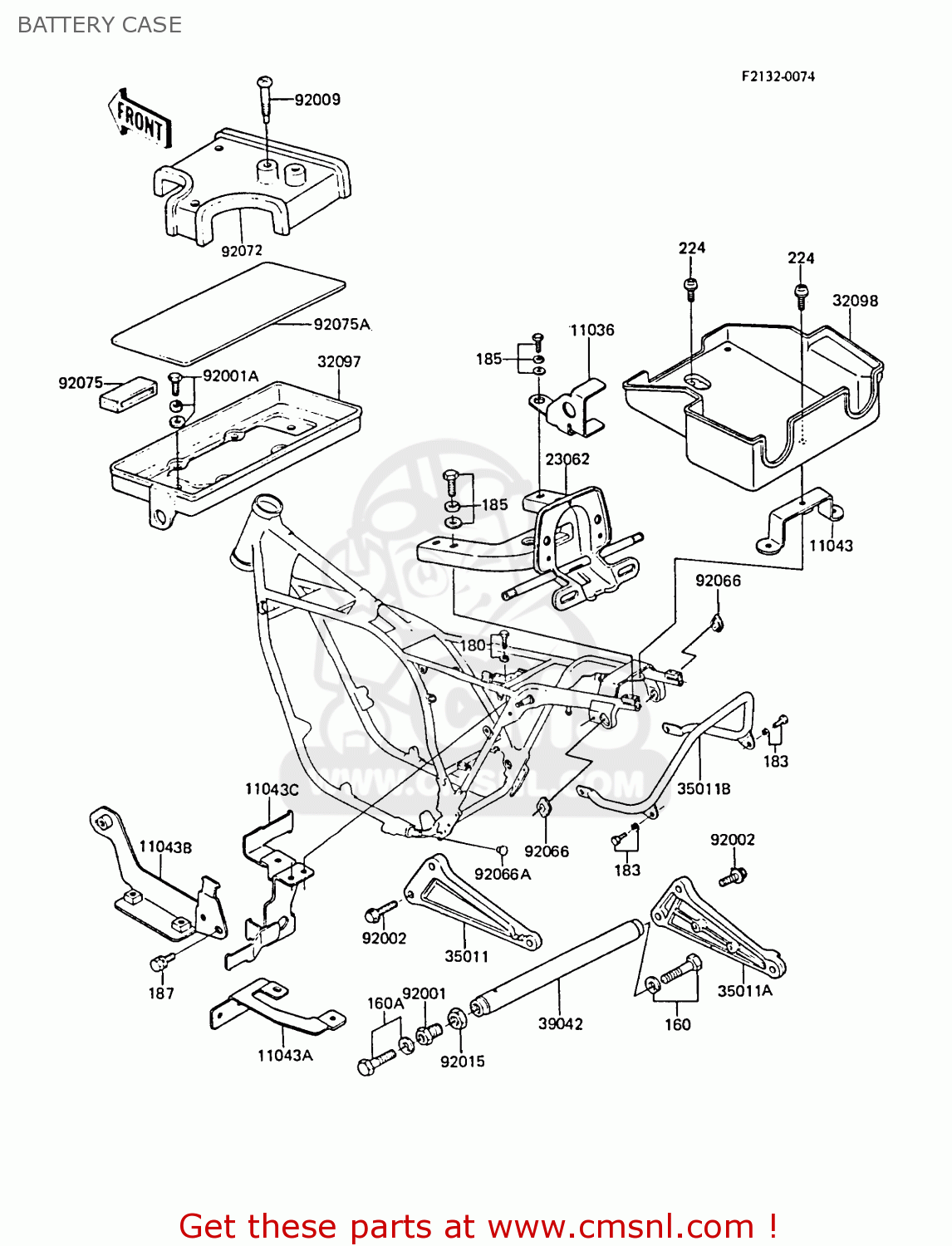

Battery case diagram ZG1300A4 Z1300 1988 FG
BATTERY CASE ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
160
160B1025
ref: 160
BOLT-FINE-WS
€ 2.50
160A
160B1030
ref: 160A
BOLT-FINE-WS
€ 2.00
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
183
183C0814
ref: 183
BOLT-UPSET-WS-SMALL
€ 2.50
185
185B0816
ref: 185
BOLT-UPSET-WSP-SMALL
€ 0.50
187
187B0612
ref: 187
BOLT-UPSET-WSP
€ 0.50
224
224B0612
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
11036
110361480
ref: 11036
BRACKET,WARNER
€ 8.50
11043
110431201
ref: 11043
BRACKET
€ 6.00
11043A
110431202
ref: 11043A
BRACKET
€ 9.50
11043B
110431337
ref: 11043B
BRACKET,REGULATOR
€ 14.50
11043C
110431399
ref: 11043C
BRACKET,ELECTRO BASE
€ 18.50
23062
230621005
ref: 23062
BRACKET-COMP
€ 121.00
32097
320971015
ref: 32097
CASE-BATTERY
€ 18.00
32098
320981051
ref: 32098
CASE-TOOL
€ 17.00
35011
350111019
ref: 35011
STAY,MUFFLER,LH
€ 51.50
35011A
350111020
ref: 35011A
STAY,MUFFLER,RH
€ 51.50
35011B
350111070
ref: 35011B
STAY,RR
€ 128.50
39042
390421001
ref: 39042
CROSSMEMBER
€ 38.50
92001
920011216
ref: 92001
BOLT,CROSSMEMBER FITT
€ 8.50
92001A
920011763
ref: 92001A
BOLT,W/SP,6X16
€ 3.00
92002
920021208
ref: 92002
BOLT,8X28
€ 3.00
92009
920091042
ref: 92009
SCREW,6X38
€ 2.50
92015
920151086
ref: 92015
NUT,CROSSMEMBER FITTI
€ 3.00
92066
32112007
ref: 92066
PLUG,23X30X4
€ 2.50
92066A
920661077
ref: 92066A
CAP,REAR VIEW MIRROR
€ 3.00
92072
920721021
ref: 92072
BAND,BATTERY
€ 21.00
92075
920751099
ref: 92075
DAMPER,BATTERY
€ 2.00
92075A
920751105
ref: 92075A
DAMPER,BATTERY,UNDER
€ 5.50
