GEAR CHANGE MECHANISM
ZG1300A4 Z1300 1988 FG

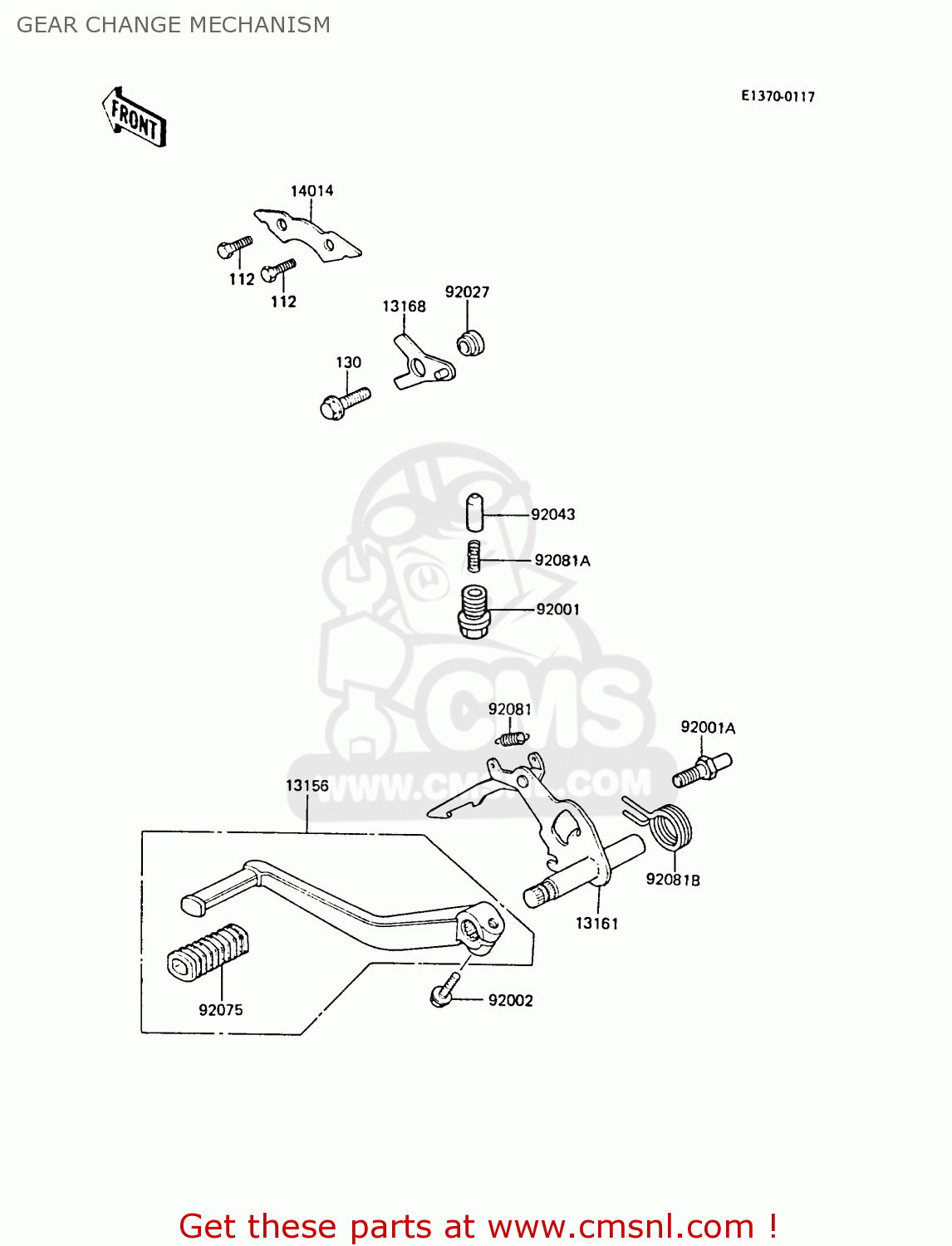

Gear change mechanism diagram ZG1300A4 Z1300 1988 FG
GEAR CHANGE MECHANISM ZG1300A4 Z1300 1988 FG
×
prices are in EUR
ref
part #
description
quantity
112
112G0616
ref: 112
BOLT UPSET,6X16
€ 1.00
130
130G0825
ref: 130
BOLT,FLANGED,8X25
€ 0.50
13156
131561038
ref: 13156
LEVER-CHANGE,PEDAL
€ 59.50
13161
131611114
ref: 13161
LEVER-COMP-CHANGE SHA
€ 59.50
13168
131681034
ref: 13168
LEVER,CHANGE
€ 7.00
14014
140141008
ref: 14014
PLATE-POSITION
€ 6.00
92001
92001131
ref: 92001
BOLT,10MM
€ 14.00
92001A
920011401
ref: 92001A
BOLT,RETURN SPRING
€ 3.00
92002
920021339
ref: 92002
BOLT,6X25
€ 2.50
92027
920271139
ref: 92027
COLLAR,L=8.7
€ 4.50
92043
92043076
ref: 92043
PIN-NEUTRAL PISTON
€ 8.00
92075
920751175
ref: 92075
DAMPER,CHANGE PEDAL
€ 3.00
92081
92081076
ref: 92081
SPRING-CHANG LEVER
€ 3.50
92081A
92081112
ref: 92081A
SPRING
€ 4.00
92081B
920811662
ref: 92081B
SPRING,CHANGE SHAFT R
€ 7.00
