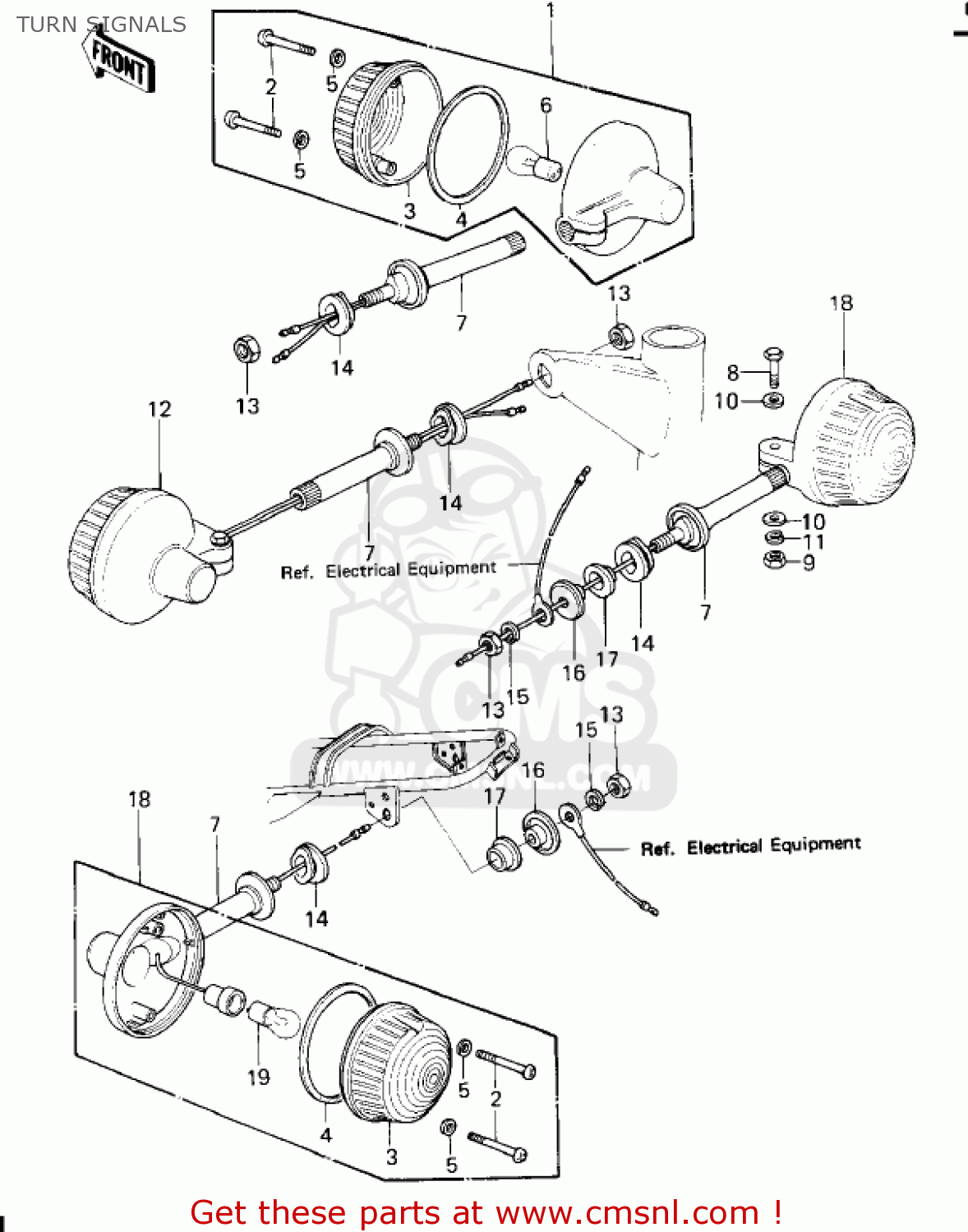

TURN SIGNALS

ref

part #

description

quantity

1

230401005
ref: 1

LAMP-SIGNAL,RH

€ 52.00

2

220E0435A
ref: 2

SCREW-PAN HEAD,4X35

€ 4.50

3

230481024
ref: 3

LENS-SIGNAL LAMP,6.14

€ 12.50

4

23050002
ref: 4

GASKET,TURN SIGNAL LA (NAS)

€ 3.00

5

23058002
ref: 5

WASHER,PLAIN,4MM

€ 2.00

6

92069060
ref: 6

BULB.12V 23/8W

€ 5.00

7

23051053
ref: 7

BRACKET-SIGNAL LAMP

€ 38.50

8

112G0630
ref: 8

BOLT-UPSET

€ 1.00

9

311B0600
ref: 9

NUT,6MM

€ 0.50

10

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

11

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

230401006
ref: 12

TURN SIGNAL LAMP ASSEMBLY,LH

€ 52.00

13

315B1000
ref: 13

NUT,10MM

€ 0.50

14

92075128
ref: 14

DAMPER,LAMP

€ 3.50

15

461F1000
ref: 15

WASHER-SPRING,10MM

€ 0.50

16

92027147
ref: 16

COLLAR

€ 9.00

17

92075158
ref: 17

DAMPER

€ 3.50

18

23040029
ref: 18

LAMP-SIGNAL

€ 90.00

19

92069055
ref: 19

BULB 12V 32CP

€ 4.50
