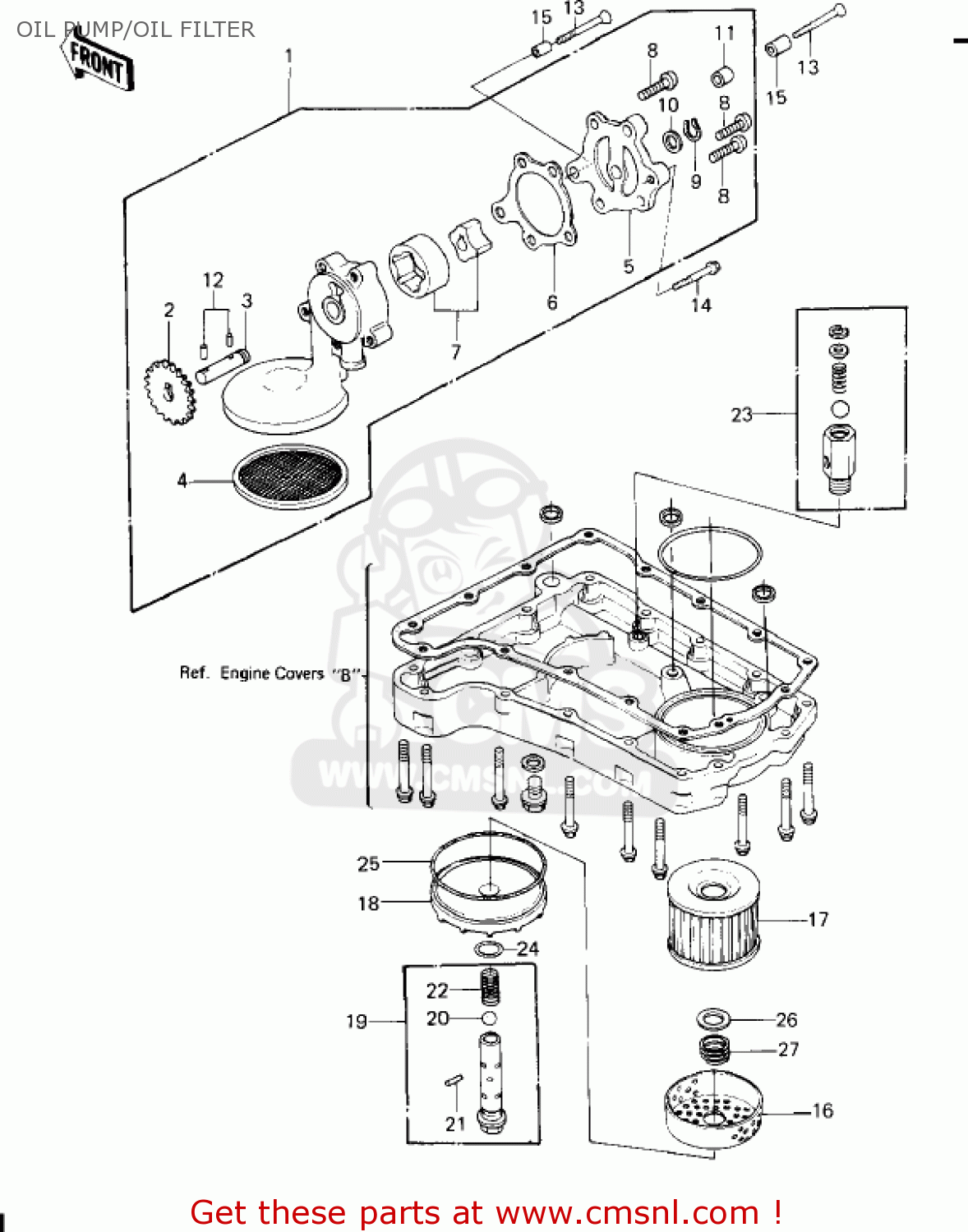

OIL PUMP/OIL FILTER

ref

part #

description

quantity

1

16082064
ref: 1

PUMP-ASSY-OIL

€ 165.00

2

16085025
ref: 2

GEAR, OIL PUMP, 57T

€ 31.50

3

16086004
ref: 3

SHAFT,OIL PUMP

€ 17.00

4

16111004
ref: 4

FILTER,OIL PUMP

€ 23.50

5

16142005
ref: 5

COVER-PUMP

€ 24.00

6

16145004
ref: 6

GASKET,OIL PUMP COVER (NAS)

€ 2.50

7

16154003
ref: 7

ROTOR-PUMP

€ 47.50

8

220B0622
ref: 8

SCREW-PAN HEAD,6X22

€ 2.50

9

480J1100
ref: 9

CIRCLIP-TYPE-C,11MM

€ 0.50

10

92022311
ref: 10

WASHER,PLAIN

€ 2.50

11

920431302
ref: 11

PIN,DOWEL,8X10

€ 1.00

12

92042041
ref: 12

PIN,DOWEL

€ 4.50

13

221B0650
ref: 13

SCREW, CONTRUNK HEAD

€ 2.50

14

92001165
ref: 14

BOLT,HEX HEAD,6X45

€ 3.00

15

92042050
ref: 15

PIN, DOWEL, 6.2X8X28

€ 2.50

16

131691110
ref: 16

PLATE,OIL FILTER

€ 4.50

17

16099003
ref: 17

FILTER,OIL

€ 6.50

18

16101004
ref: 18

COVER,OIL FILTER

€ 31.00

19

161261108
ref: 19

VALVE,OIL FILTER

€ 29.00

20

600A1200
ref: 20

BALL-STEEL,3/8

€ 0.50

21

92043111
ref: 21

SPRING PIN

€ 4.00

22

92081109
ref: 22

SPRING

€ 7.50

23

161301001
ref: 23

VALVE-ASSY-RELIEF

€ 28.50

24

670B2016
ref: 24

O RING,16MM

€ 1.00

25

671B2590
ref: 25

O RING,90MM

€ 6.50

26

920221012
ref: 26

WASHER,20.5X30X1

€ 3.00

27

920811018
ref: 27

SPRING,OIL FILTER

€ 3.00
