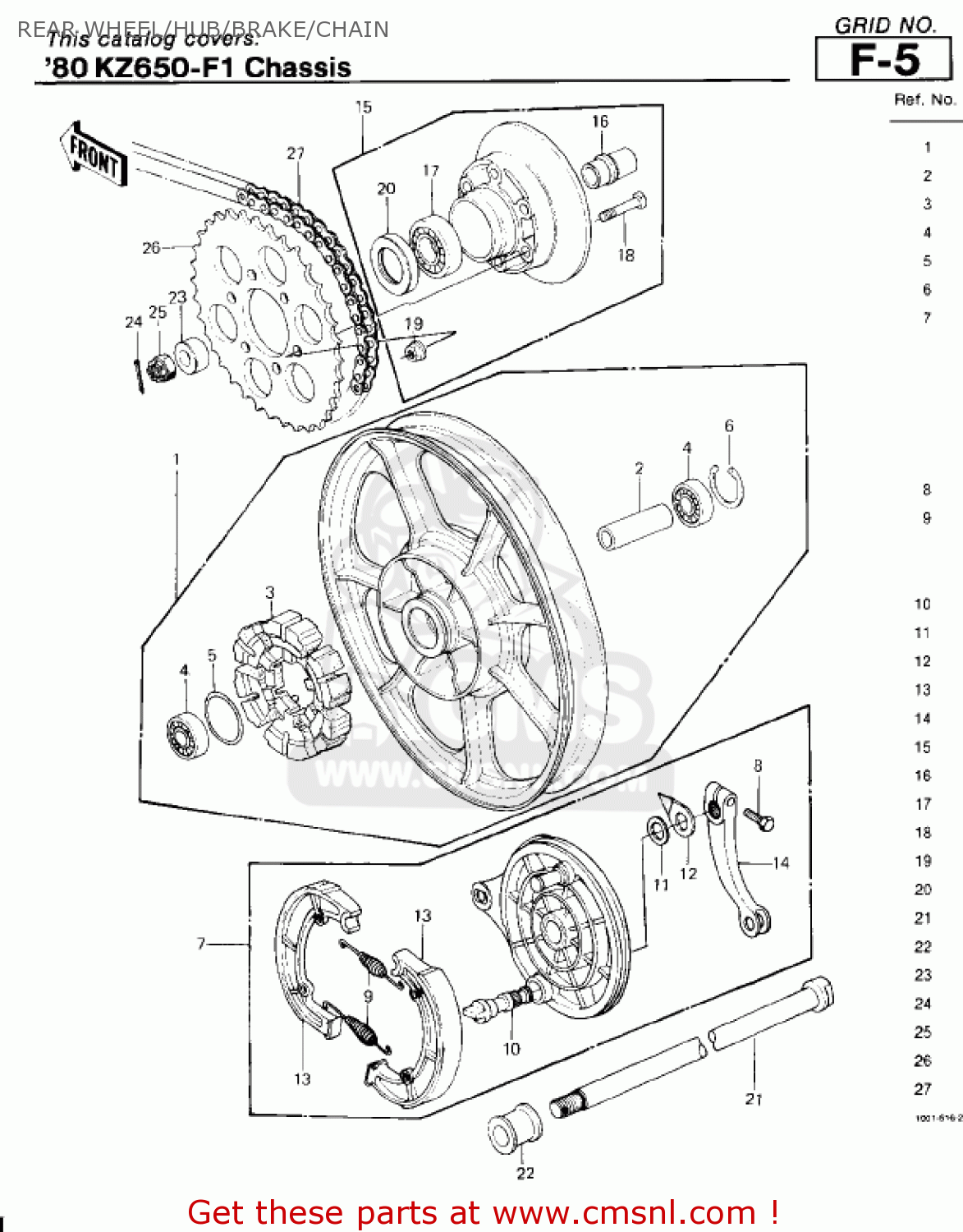

REAR WHEEL/HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

410731103
ref: 1

SOLID WHEEL ASSY,RR

€ 522.50

2

42010033
ref: 2

COLLAR,REAR HUB,L=61

€ 14.50

3

42014026
ref: 3

DAMPER,RR HUB SHOCK

€ 51.00

4

601B6303ZZ
ref: 4

BEARING-BALL,#6303ZZC

€ 32.50

5

671B2555
ref: 5

O RING,55MM

€ 4.00

6

920331042
ref: 6

CIRCLIP,47M/M

€ 4.00

7

410351056
ref: 7
F/NO. 000001~002240

PANEL-ASSY-BRAKE,RR

€ 277.00

7

410351056
ref: 7
F/NO. 000001~002240

PANEL-ASSY-BRAKE,RR

€ 277.00

7

410351055
ref: 7
F/NO. 002241~007063

PANEL ASY,RR BRK,BLCK

€ 335.50

7

410351055
ref: 7
F/NO. 002241~007063

PANEL ASY,RR BRK,BLCK

€ 335.50

8

114G0828
ref: 8

BOLT-SMALL,8X28

€ 2.50

9

41049012
ref: 9

SPRING, BRKE SHOE

€ 6.00

10

41050017
ref: 10

CAM-BRAKE

€ 25.50

11

41051003
ref: 11

DUST SHIELD-BRAKE CAM

€ 2.50

12

41085004
ref: 12

INDICATOR,BRAKE SHOE

€ 10.00

13

42019012
ref: 13

SHOE, BRAKE (MCA)

€ 26.00

14

42029039
ref: 14

LEVER REAR BRAKE CAM

€ 37.00

15

42008032
ref: 15

COUPLING ASSY,REAR HB

€ 132.50

16

42036026
ref: 16

SLEEVE,RR HUB COUPLIN

€ 39.00

17

601B6305
ref: 17

BEARING-BALL,#6305C3

€ 30.00

18

92003087
ref: 18

BOLT-RR SPRCKT 10X49

€ 4.00

19

920151415
ref: 19

NUT,10MM

€ 3.00

20

92050076
ref: 20

OIL SEAL, # 38629

€ 13.50

21

410681086
ref: 21

AXLE,RR

€ 49.00

22

42032017
ref: 22

COLLAR-REAR AXLE

€ 10.50

23

42032067
ref: 23

COLLAR,REAR AXLE,LH,L

€ 15.50

24

550D4035
ref: 24

PIN-COTTER,4.0X35

€ 1.00

25

92015055
ref: 25

NUT,16MM

€ 8.00

26

42041065
ref: 26

REAR SPROCKET,50T

€ 122.00

27

920571232
ref: 27

CHAIN,DRIVE,EK50MV-OX

€ 167.50
