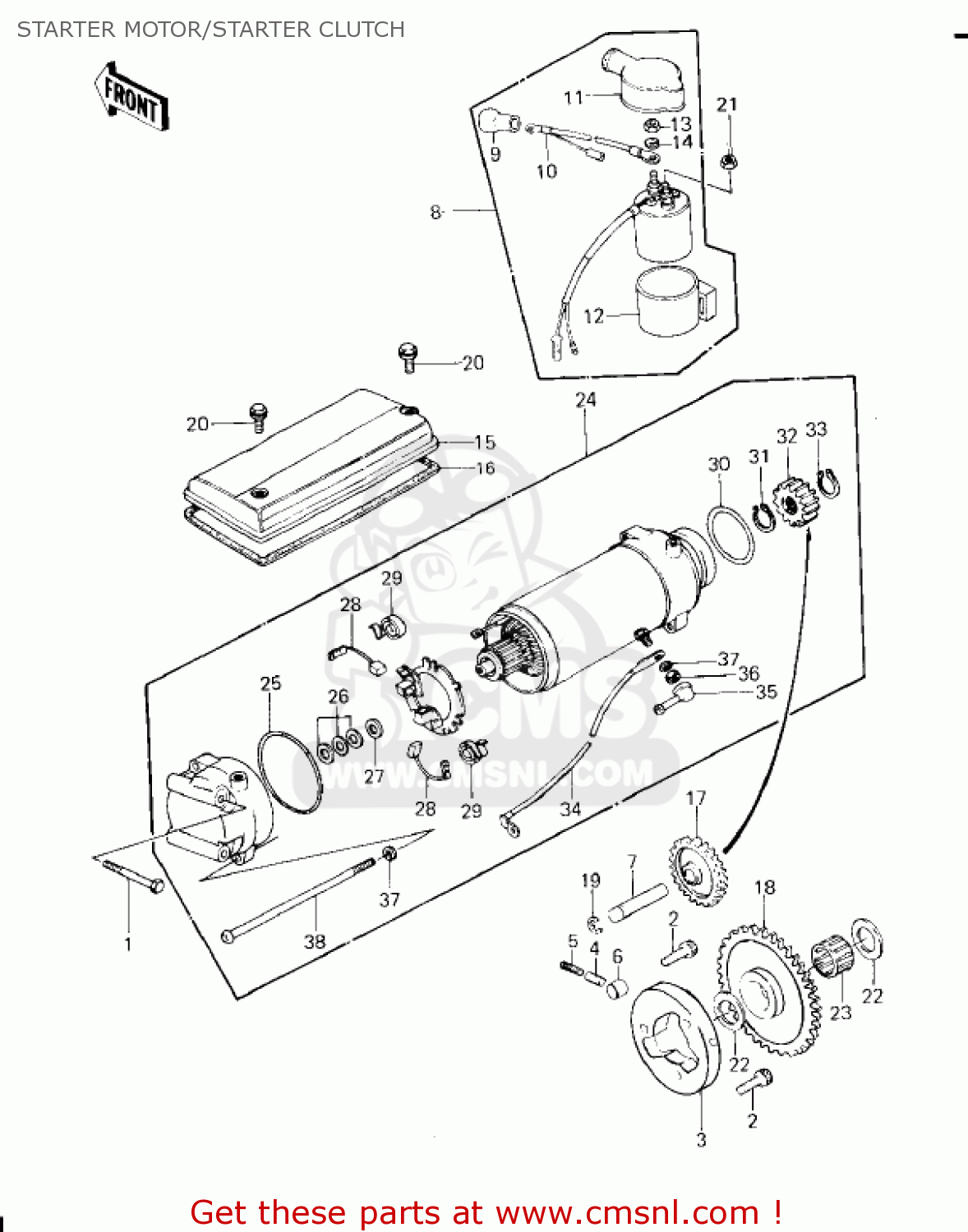

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

1

112G0660
ref: 1

BOLT-UPSET

€ 3.00

2

120P0812
ref: 2

BOLT,SOCKET,8X12

€ 2.50

3

131931012
ref: 3

CLUTCH TARIER

€ 152.50

4

92043087
ref: 4

PIN

€ 8.00

5

92081110
ref: 5

SPRING

€ 3.00

6

92122004
ref: 6

ROLLER,15X13

€ 7.00

7

21143003
ref: 7

SHAFT,IDLE GEAR

€ 10.00

8

270101050
ref: 8

SWITCH,MAGNETIC

€ 88.50

9

21017023
ref: 9

GROMMET,MAGNETIC SWIT

€ 12.00

10

260111128
ref: 10

WIRE-LEAD,MAGNETIC SW

€ 36.00

11

21141004
ref: 11

COVER,MAG SWITCH

€ 8.50

12

21064002
ref: 12

DAMPER,MAGNETIC SWITC

€ 13.50

13

312B0600
ref: 13

NUT,6MM

€ 0.50

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

21165003
ref: 15

COVER,STARTER

€ 13.50

16

21166003
ref: 16

GASKET,STARTER COVER (NAS)

€ 9.50

17

21167004
ref: 17

GEAR-SPUR,IDLE,29T

€ 69.50

18

120461032
ref: 18

SPROCKET,STARTER,58T

€ 99.50

19

482K0200
ref: 19

CIRCLIP-TYPE-E,12MM

€ 0.50

20

920011151
ref: 20

BOLT,6X10

€ 3.00

21

92017014
ref: 21

NUT,LOCK,6MM

€ 4.00

22

920261025
ref: 22

SPACER,25X36X3.2

€ 3.50

23

92046056
ref: 23

BEARING-NEEDLE,K25301

€ 24.00

24

211631022
ref: 24

STARTER ELECTRIC

€ 573.50

25

21027006
ref: 25

RING-O,62MM

€ 8.00

26

21025011
ref: 26

WASHER, THRUST, 0.2T

€ 4.00

27

21025010
ref: 27

WASHER,THRUST,T=1.6

€ 4.00

28

21039003
ref: 28

BRUSH,CARBON

€ 23.50

29

21040003
ref: 29

SPRING-BRUSH

€ 4.50

30

21027008
ref: 30

O RING, 40M/M

€ 8.50

31

92033034
ref: 31

CIRCLIP

€ 7.00

32

21053004
ref: 32

PINION, STARTER

€ 69.00

33

92033037
ref: 33

RING-SNAP,13MM

€ 6.50

34

260111099
ref: 34

WIRE-LEAD,STARTER

€ 34.50

35

21017?020
ref: 35

21017?020

36

312B0600
ref: 36

NUT,6MM

€ 0.50

37

461F0600
ref: 37

WASHER-SPRING,6MM

€ 0.50

38

21099?006
ref: 38

21099?006
