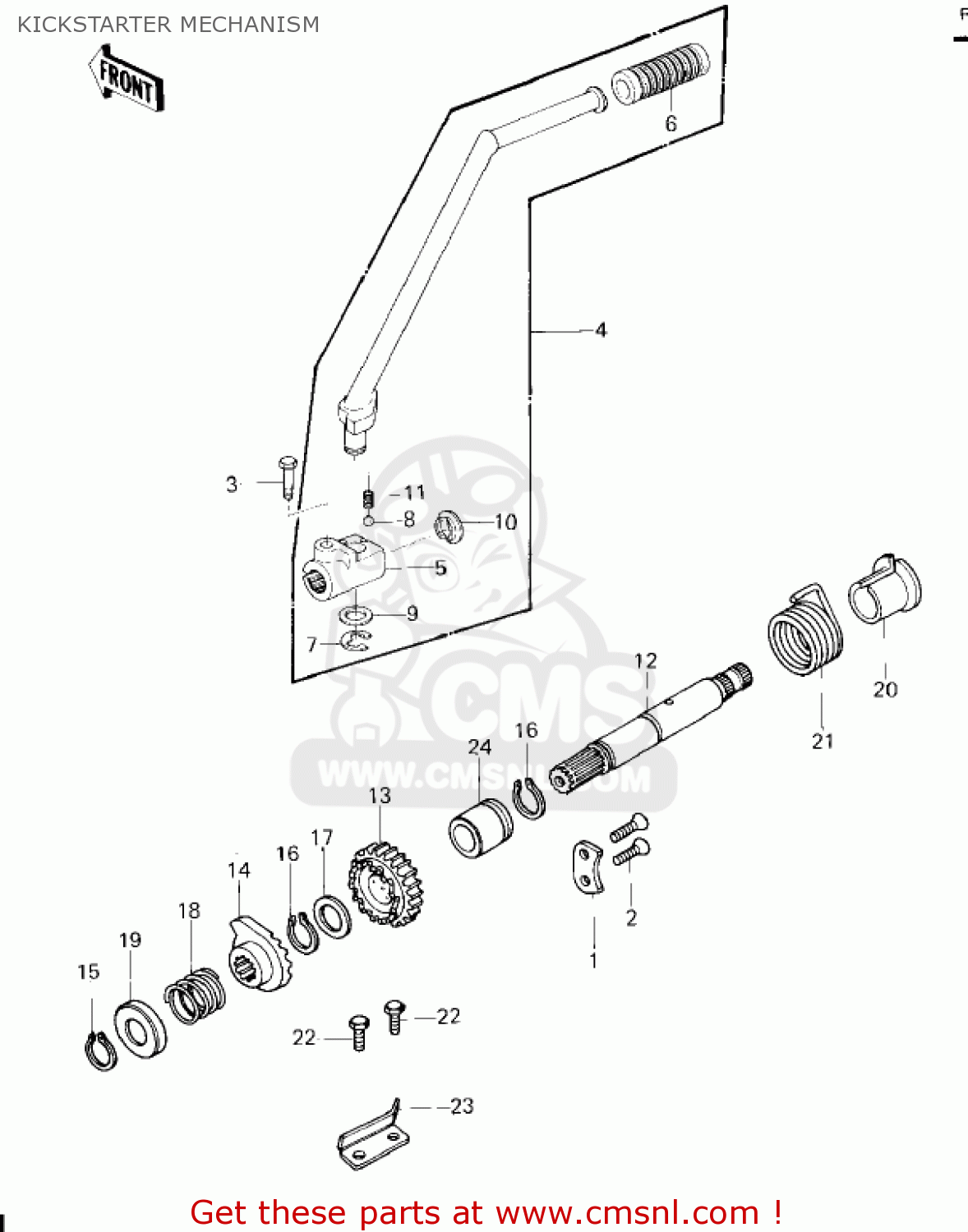

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

13169007
ref: 1

PLATE-DRUM LEV POSTON

€ 9.00

2

221B0612
ref: 2

SCREW-CNTSNK HD,6X12

€ 1.50

3

115B0832
ref: 3

BOLT-SMALL UPSET

€ 1.50

4

130641005
ref: 4

PEDAL ASSY,KICK

€ 179.50

5

130611008
ref: 5

BOSS,KICK PEDAL

€ 29.50

6

13063004
ref: 6

DAMPER,KICK PEDAL

€ 6.50

7

482J0100
ref: 7

CIRCLIP-TYPE-E,10MM

€ 0.50

8

600A0800
ref: 8

BALL-STEEL,1/4

€ 0.50

9

920221019
ref: 9

WASHER,15.2X20X1

€ 3.50

10

92066058
ref: 10

PLUG,A,KICKSTARTER

€ 2.50

11

92081154
ref: 11

SPRING

€ 2.00

12

13066045
ref: 12

SHAFT, KICKSTARTER

€ 38.50

13

13068035
ref: 13

GEAR, KICKSTARTER,20T

€ 33.50

14

13078011
ref: 14

RATCHET

€ 58.50

15

480J1900
ref: 15

CIRCLIP-TYPE-C,19MM

€ 1.00

16

480J2000
ref: 16

CIRCLIP-TYPE-C,20MM

€ 1.00

17

92022112
ref: 17

WASHER,20.5X30X1,STEE

€ 6.00

18

92081104
ref: 18

SPRING-RATCHET

€ 6.50

19

92102008
ref: 19

CAP-KICKSTARTER

€ 4.00

20

13070009
ref: 20

GUIDE,KICK SPRING

€ 8.00

21

92082006
ref: 21

SPRING,KICK RETURN

€ 17.00

22

112G0614
ref: 22

BOLT-UPSET,6X14

€ 2.50

23

13072018
ref: 23

STOPPER, KICKSTARTER

€ 6.00

24

92028175
ref: 24

BUSHING,KICK SHAFT

€ 12.50
