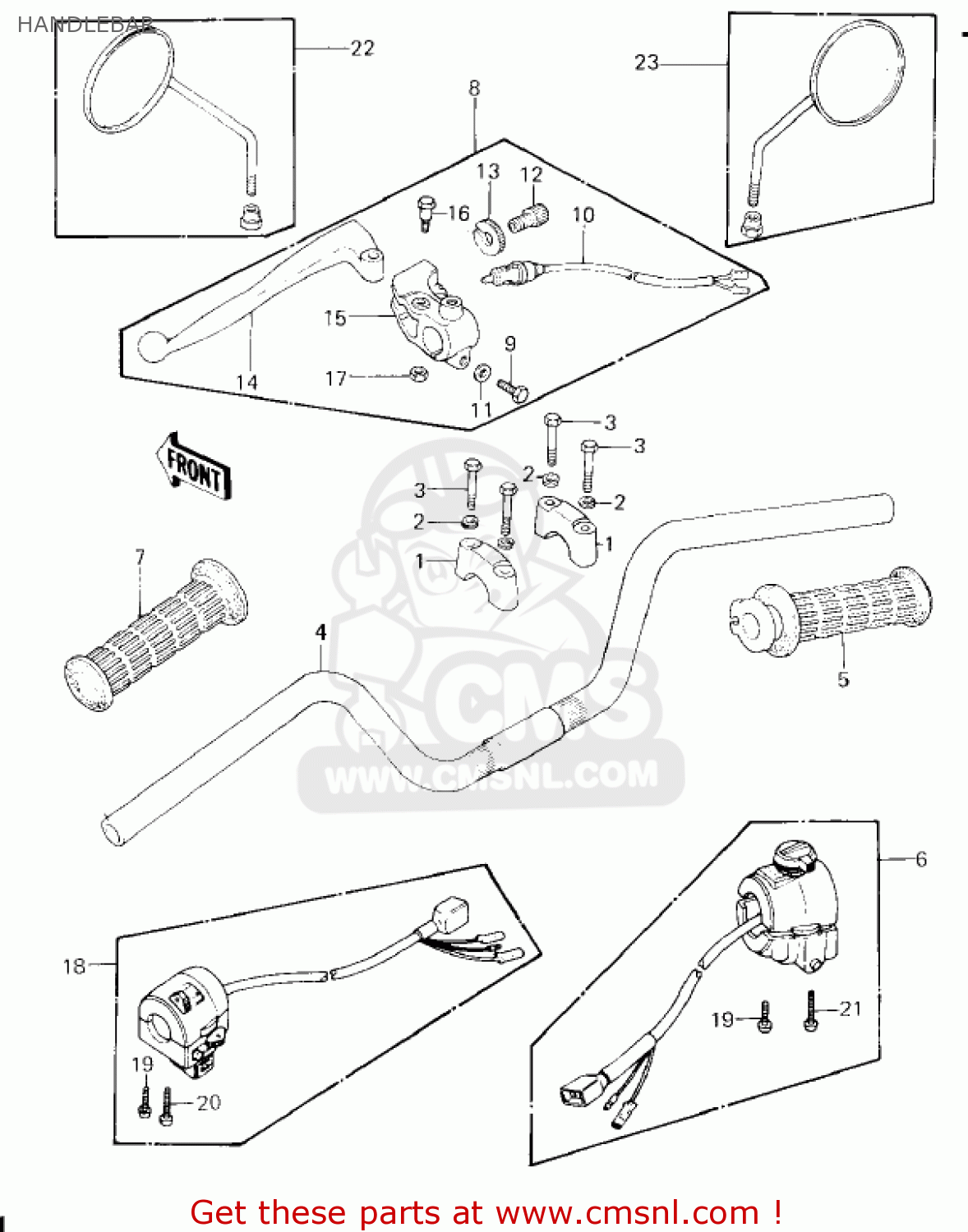

HANDLEBAR

ref

part #

description

quantity

1

46012008
ref: 1

HOLDER-HANDLE,UPP

€ 23.00

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

920011405
ref: 3

BOLT,8X38

€ 10.00

4

460031026
ref: 4

HANDLEBAR

€ 94.50

5

46019038
ref: 5

GRIP-ASSY,THROTTLE

€ 80.50

6

460911047
ref: 6

HOUSING ASSY, CONT,RH

€ 118.50

7

46075028
ref: 7

GRIP,LH

€ 32.00

8

46076054
ref: 8

LEVER-ASSY-GRIP,CLUTC

€ 101.00

9

110N0625
ref: 9

BOLT-HEX HEAD,6X25

€ 3.50

10

27043002
ref: 10

SWITCH,CLUTCH

€ 21.00

11

410B0600
ref: 11

WASHER-PLAIN-SMALL,6M

€ 0.50

12

46055003
ref: 12

SCREW-CABLE ADJUST

€ 11.50

13

46056007
ref: 13

NUT,CABLE ADJUST LOCK

€ 9.00

14

46092023
ref: 14

LEVER-GRIP,CLUTCH

€ 17.00

15

46094019
ref: 15

HOLDER,CLUTCH LEVER

€ 55.00

16

92007047
ref: 16

BOLT,HEX HEAD

€ 6.50

17

92017014
ref: 17

NUT,LOCK,6MM

€ 4.00

18

460911048
ref: 18

CONTROLLER HOUSING ASSEMBLY,LH

€ 146.00

19

220B0530
ref: 19

SCREW-PAN-CROS

€ 2.00

20

220B0535
ref: 20

SCREW-PAN-CROS

€ 2.00

21

220B0540
ref: 21

SCREW-PAN-CROS

€ 2.00

22

56003019
ref: 22

MIRROR-ASSY,LH

€ 51.00

23

56002029
ref: 23

MIRROR-ASSY,RH

€ 49.00

all assemblies
