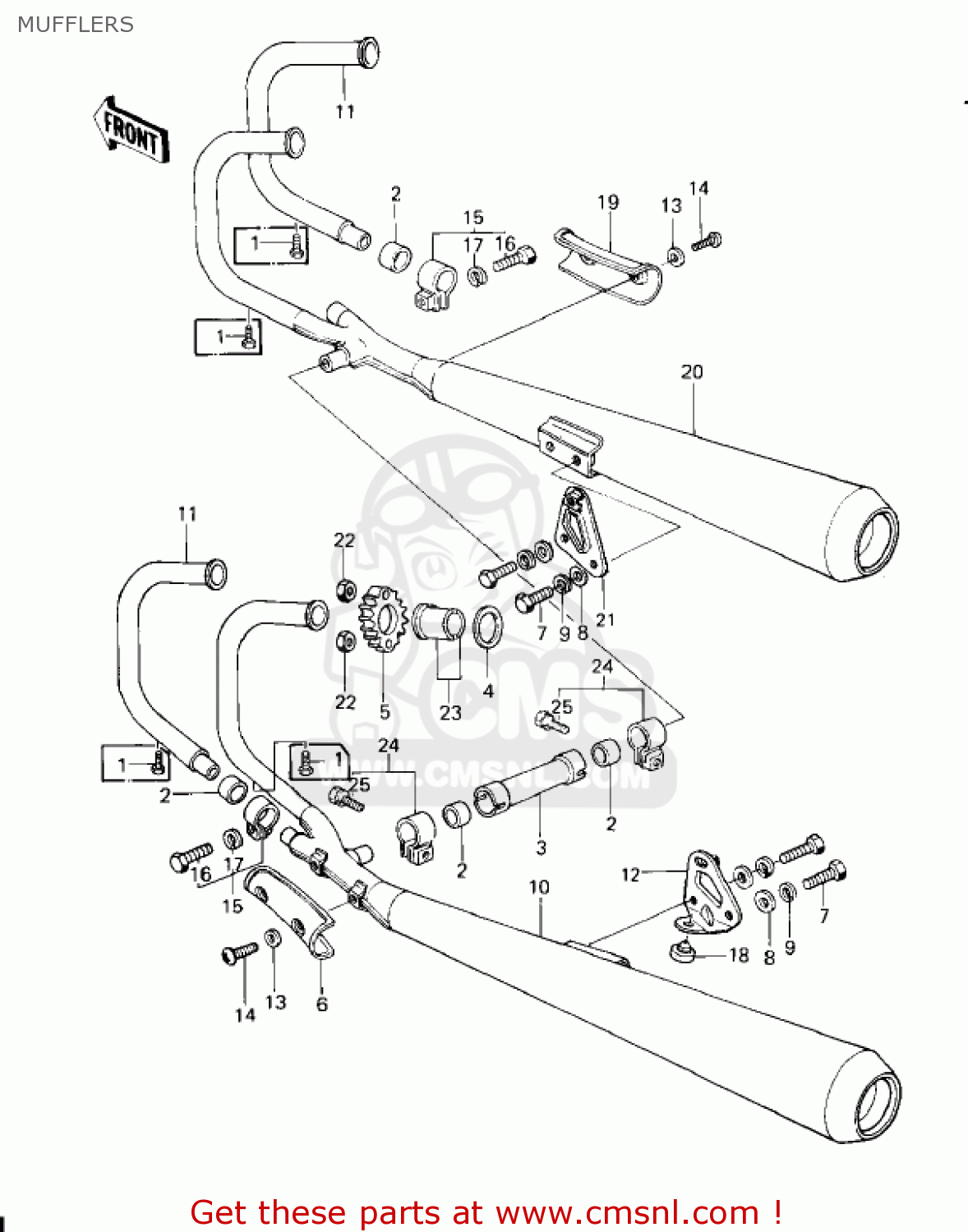

MUFFLERS

ref

part #

description

quantity

1

110R0610
ref: 1

BOLT,6X10

€ 5.00

2

110601051
ref: 2

GASKET,MUFFLER CONNEC (NAS)

€ 15.00

3

320321669
ref: 3

PIPE,MUFFLER CONNECTI

€ 15.50

4

110091866
ref: 4

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

5

180691006
ref: 5

HOLDER-EXHAUST PIPE

€ 16.00

6

140251099
ref: 6

COVER,MUFFLER,L.H

€ 41.00

7

115G0816
ref: 7

BOLT-HEX,HEAD 8X16

€ 0.50

8

411B0800
ref: 8

WASHER-PLAIN,8MM

€ 0.50

9

461F0800
ref: 9

WASHER-SPRING,8MM

€ 0.50

10

180011002
ref: 10

MUFFLER ,L.H,31159

€ 476.00

10

180011002
ref: 10

MUFFLER ,L.H,31159

€ 476.00

11

180491013
ref: 11

PIPE,EXHAUST 1,SWISS

€ 136.00

11

180491397
ref: 11

PIPE-EXHAUST,#4

€ 136.00

12

320691040
ref: 12

BRACKET,MUFFLER,R.H

€ 19.00

13

411D0600
ref: 13

WASHER-PLAIN,6MM

€ 1.50

14

92011039
ref: 14

SCREW, PAN HEAD, 6X8

€ 2.00

15

920371220
ref: 15

CLAMP,MUFFLER

€ 9.50

16

115G0825
ref: 16

BOLT-HEX,HEAD,8X25

€ 3.00

17

461F0800
ref: 17

WASHER-SPRING,8MM

€ 0.50

18

92075015
ref: 18

DAMPER RUBB-MAIN STND

€ 3.00

19

140251100
ref: 19

COVER,MUFFLER,R.H

€ 41.00

20

180011003
ref: 20

MUFFLER ,R.H,31159

€ 577.50

20

180011003
ref: 20

MUFFLER ,R.H,31159

€ 577.50

21

320691039
ref: 21

BRACKET,MUFFLER,L.H

€ 20.50

22

92017014
ref: 22

NUT,LOCK,6MM

€ 4.00

23

92027264
ref: 23

COLLAR, EXHAUST PIPE

€ 3.00

24

920371223
ref: 24

CLAMP

€ 8.50

25

920011379
ref: 25

BOLT,8X30

€ 3.00

all assemblies
