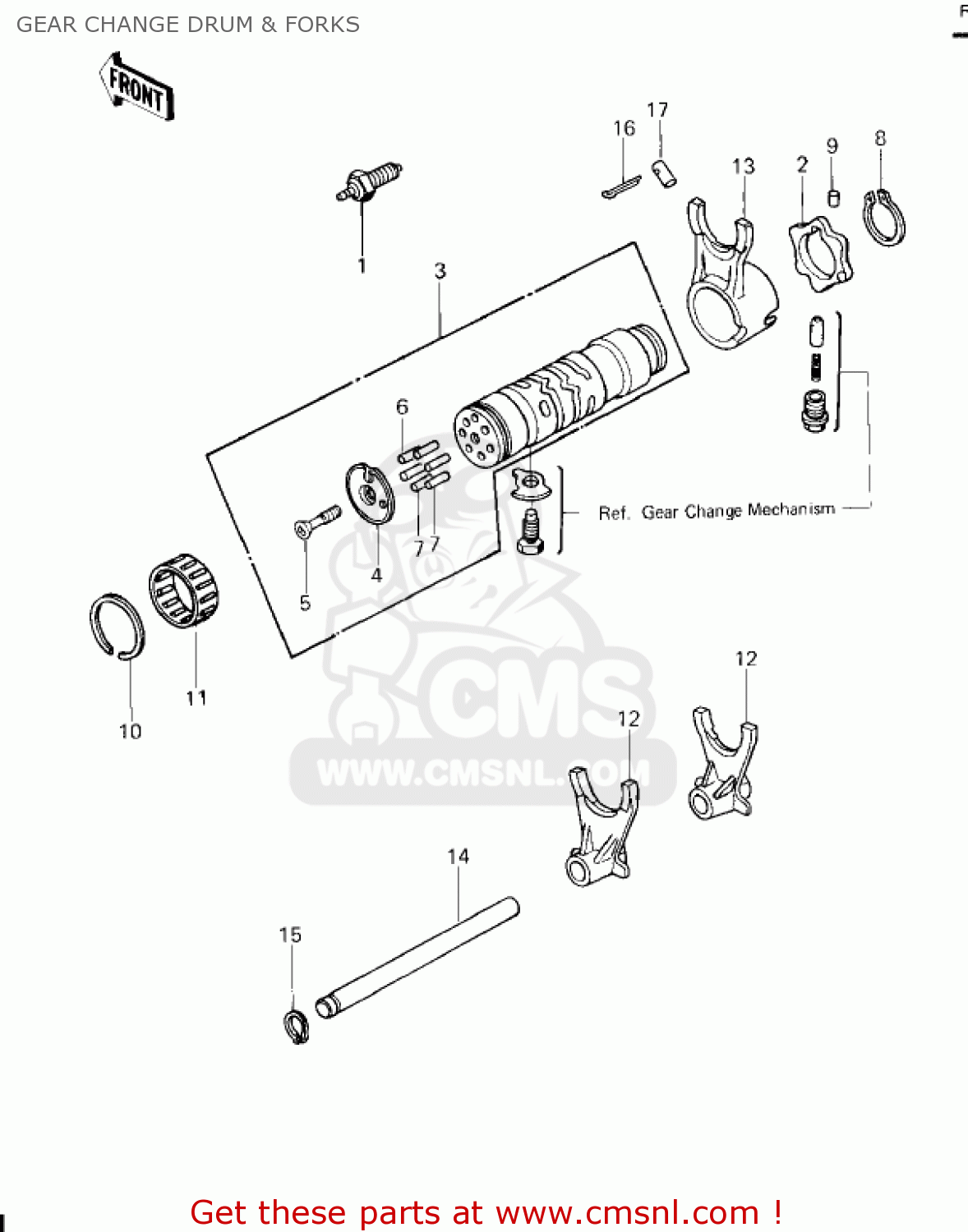

GEAR CHANGE DRUM & FORKS

ref

part #

description

quantity

1

131515002
ref: 1

SWITCH,NEUTRAL

€ 22.50

2

131451058
ref: 2

CAM-CHANGE DRUM

€ 15.00

3

132391069
ref: 3

DRUM-ASSY-CHANGE

€ 148.50

4

130911104
ref: 4

HOLDER,CHANGE DRUM PI

€ 16.50

5

221B0620
ref: 5

SCREW-CNTSNK HD,6X20

€ 0.50

6

92042014
ref: 6

PIN-GEAR CHANGE DRUM

€ 0.50

7

92042030
ref: 7

PIN,GEAR CHNGE DRUM

€ 2.50

8

480J3000
ref: 8

CIRCLIP-TYPE-C,30MM

€ 3.50

9

610A0406
ref: 9

ROLLER,4X6

€ 2.50

10

92033035
ref: 10

RING-SNAP,37MM

€ 4.00

11

92046051
ref: 11

BEARING-NEEDLE,37BTM4

€ 23.00

12

131401008
ref: 12

FORK-SHIFT,LOW,2ND&3R

€ 79.00

13

131401009
ref: 13

FORK-SHIFT,4TH&TOP

€ 79.00

14

490475003
ref: 14

ROD-SHIFT

€ 21.50

15

480J1200
ref: 15

CIRCLIP-TYPE-C,12MM

€ 0.50

16

550D3020
ref: 16

PIN-COTTER,3.0X20

€ 2.00

17

92042021
ref: 17

PIN,DOWEL,8X18

€ 7.00
