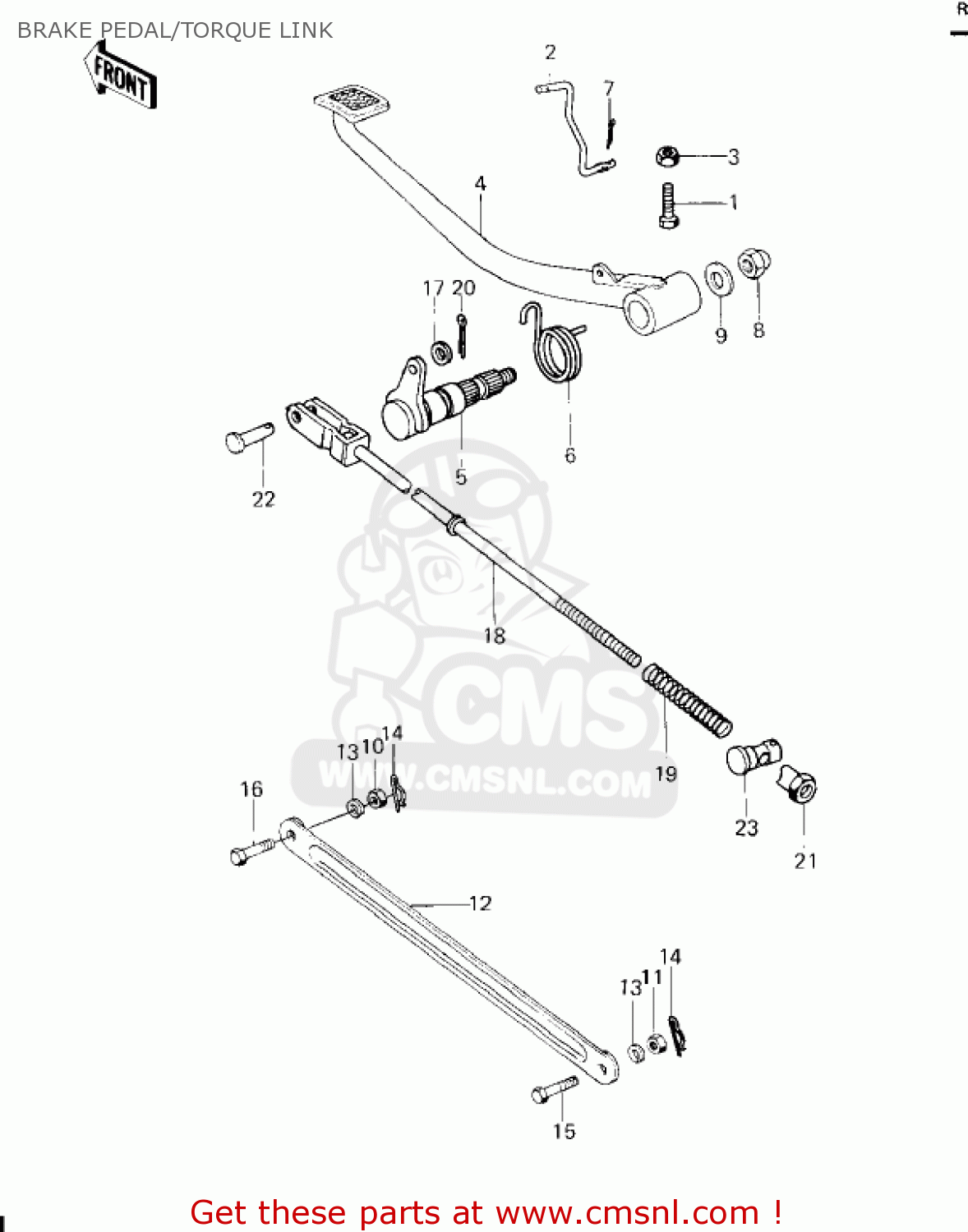

BRAKE PEDAL/TORQUE LINK

ref

part #

description

quantity

1

112G0620
ref: 1

BOLT 6X20

€ 1.00

2

270121003
ref: 2

HOOK,BRAKE SW SPRING

€ 3.00

3

311B0600
ref: 3

NUT,6MM

€ 0.50

4

430011009
ref: 4

LEVER-BRAKE,PEDAL

€ 88.00

5

43004012
ref: 5

SHAFT, BRAKE PEDAL

€ 78.00

6

43005022
ref: 6

SPRING,BRAKE PEDAL

€ 4.50

7

550D1610
ref: 7

PIN-COTTER,1.6X10

€ 2.00

8

92019013
ref: 8

NUT,CAP,LOCK,8MM

€ 5.50

9

920221561
ref: 9

WASHER,8.5X20X1.6

€ 2.50

10

314B1000
ref: 10

NUT,10MM

€ 0.50

11

315B1000
ref: 11

NUT,10MM

€ 0.50

12

43007027
ref: 12

TORQUE LINK-REAR BRK

€ 18.50

13

461F1000
ref: 13

WASHER-SPRING,10MM

€ 0.50

14

554A0800
ref: 14

PIN-SNAP,8MM

€ 1.00

15

92003034
ref: 15

BOLT-HEX HEAD,10MM

€ 9.00

16

92003096
ref: 16

BOLT-TRQ LINK 10X29

€ 7.00

17

410B0600
ref: 17

WASHER-PLAIN-SMALL,6M

€ 0.50

18

43011009
ref: 18

ROD-BRAKE

€ 12.50

19

43012001
ref: 19

SPRING,BRAKE ROD

€ 3.00

20

550D2015
ref: 20

PIN-COTTER,2.0X15

€ 1.00

21

92015042
ref: 21

NUT-BRAKE ROD ADJUST

€ 4.00

22

92043064
ref: 22

PIN-BRAKE ROD FITTING

€ 4.50

23

92043065
ref: 23

PIN-BRAKE ROD

€ 3.50
