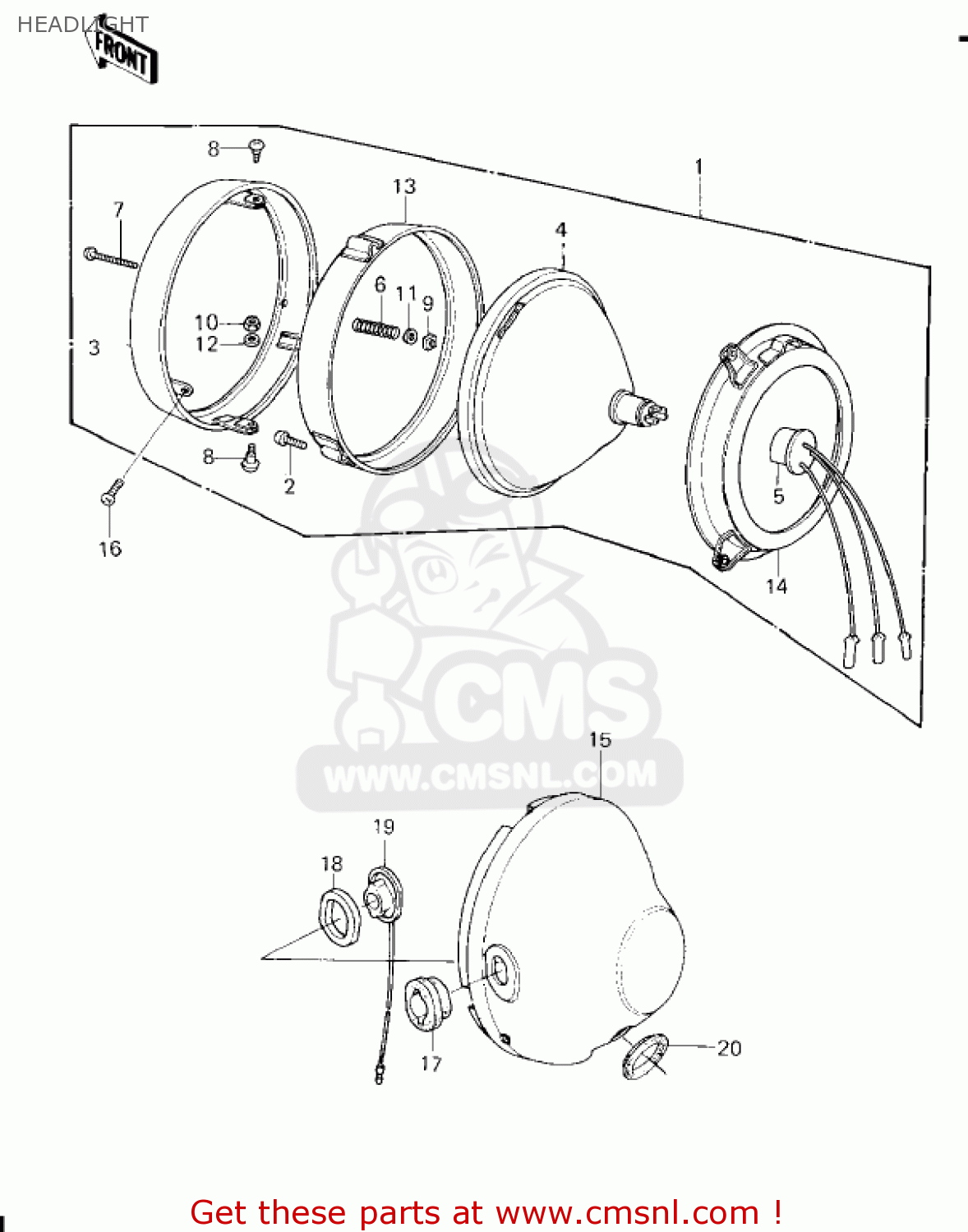

HEADLIGHT

ref

part #

description

quantity

1

23003017
ref: 1

LAMP UNIT, HEAD

€ 429.00

2

220B0312
ref: 2

SCREW-PAN CROS,3X12

€ 2.00

3

23006038
ref: 3

RIM-LAMP

€ 56.50

4

23007041
ref: 4

LENS-COMP,001-1014 MA

€ 102.00

5

23008037
ref: 5

SOCKET-ASSY,HEAD LAMP

€ 12.50

6

23014005
ref: 6

SPRING-FOCUS ADJUST

€ 2.50

7

23019021
ref: 7

SCREW-FORCUS ADJUST

€ 3.00

8

23019023
ref: 8

SCREW-PAN HEAD,5X12

€ 3.50

9

23020018
ref: 9

NUT,4MM,FOCUS ADJUST

€ 3.00

10

23020023
ref: 10

NUT,5MM

€ 3.00

11

23021004
ref: 11

WASHER,4.1X8X0.8

€ 2.00

12

23021012
ref: 12

WASHER

€ 3.00

13

23072001
ref: 13

RETAINER,HEAD LAMP

€ 26.00

14

23074001
ref: 14

HOLDER,HEAD LAMP

€ 28.00

15

23005101521
ref: 15

BODY-COMP-HEAD LAMP,F

€ 136.50

16

23019022
ref: 16

SCREW-SPECIAL,5X14

€ 1.50

17

23066015
ref: 17

DAMPER

€ 4.50

18

23066016
ref: 18

DAMPER

€ 4.50

19

23076005
ref: 19

COLLAR

€ 31.00

20

920711008
ref: 20

GROMMET

€ 4.00
