FRONT BRAKE

KZ650F1 1980 USA CANADA

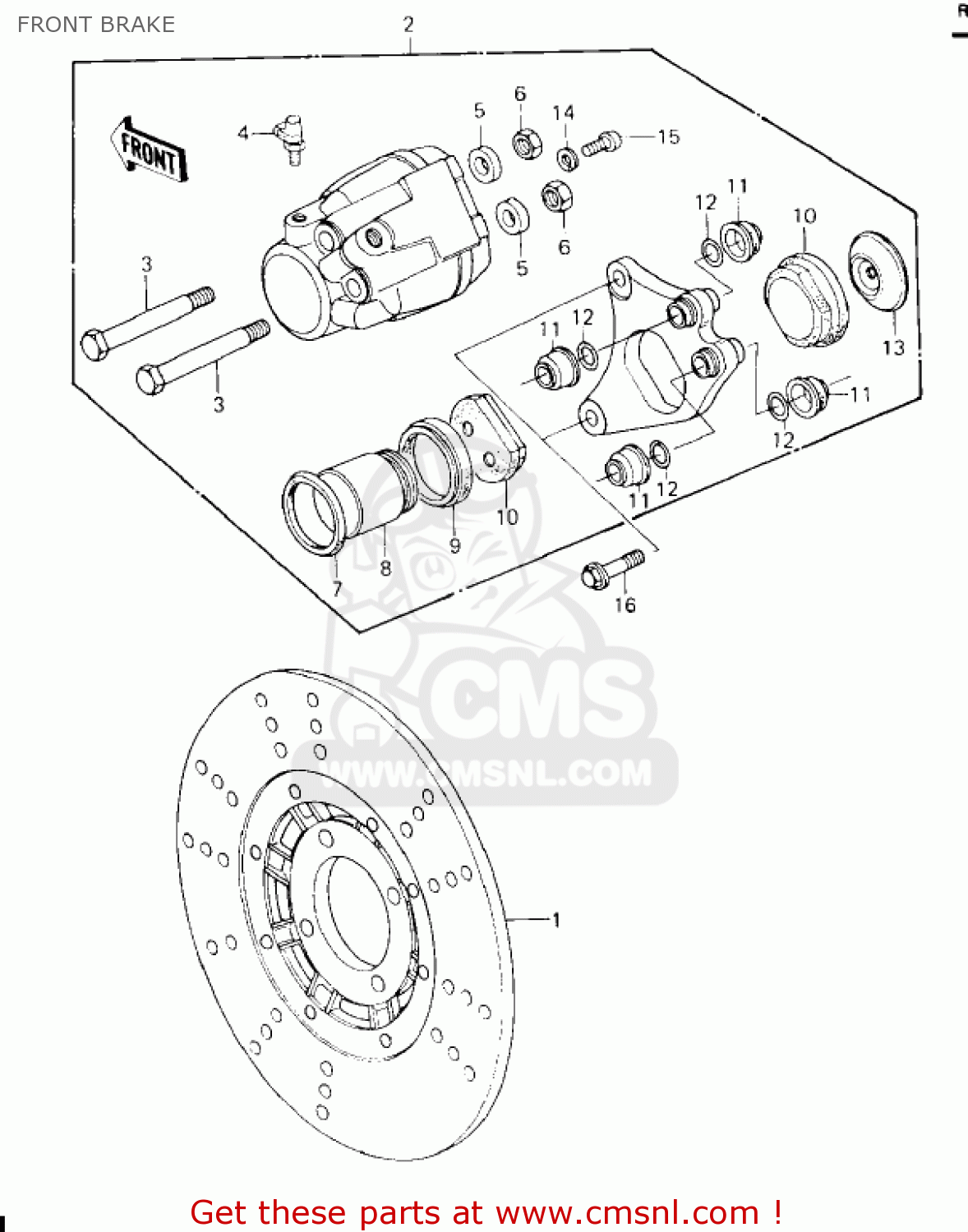

Front brake diagram KZ650F1 1980 USA CANADA

FRONT BRAKE KZ650F1 1980 USA CANADA

FRONT BRAKE KZ650F1 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

410801022
ref: 1

DISC PLATE,FRONT BRAK

€ 352.50

2

430411024
ref: 2

CALIPER ASSY,L.H.

€ 429.50

3

43045006
ref: 3

BOLT

€ 18.00

4

43085001
ref: 4

BREEDER SET

€ 16.50

5

43088002
ref: 5

PLUG

€ 6.50

6

315B1000
ref: 6

NUT,10MM

€ 0.50

7

43049002A
ref: 7

PISTON SEAL RING

€ 9.00

8

430201012
ref: 8

PISTON-COMP-BRAKE

€ 65.50

9

43054003
ref: 9

BOOT,PISTON

€ 10.00

10

430821001
ref: 10

PAD SET (MCA)

€ 34.00

11

43052005
ref: 11

BOOT,SHAFT

€ 7.50

12

43053006
ref: 12

RING-O

€ 7.00

13

43040004
ref: 13

SPACER

€ 8.00

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

220B0612
ref: 15

SCREW-PAN HEAD,6X12

€ 1.00

16

920011293
ref: 16

BOLT,HEX HEAD,10X38

€ 6.50
