TRANSMISSION
KZ650F1 1980 USA CANADA

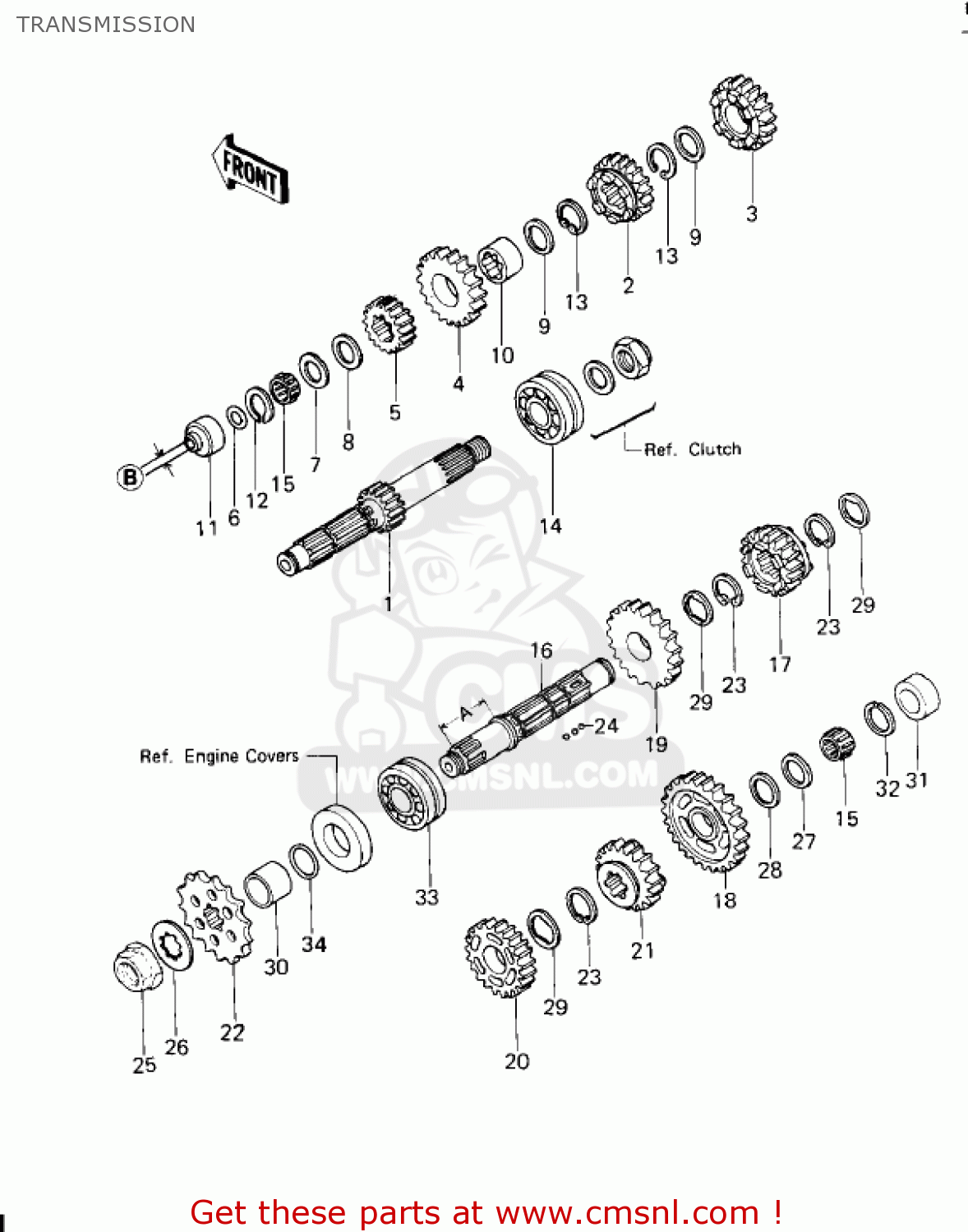

Transmission diagram KZ650F1 1980 USA CANADA
TRANSMISSION KZ650F1 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13127051
ref: 1
E/NO. 114501~118403
SHAFT,DRIVE
€ 89.50
1
131271018
ref: 1
E/NO. 118404~123772
SHAFT-TRANSMISSION IN
€ 232.50
2
131291032
ref: 2
3RD GEAR,DRIVE SHAFT
€ 90.00
3
131291044
ref: 3
GEAR,INPUT 4TH,25T
€ 87.50
4
131291045
ref: 4
TOP GEAR,DRIVE SHAFT
€ 50.50
5
13130041
ref: 5
2ND GEAR,DRIVE
€ 69.50
6
670B1507
ref: 6
E/NO. 114501~118403
O RING,7MM
€ 1.00
6
670B1508
ref: 6
E/NO. 118404~123772
O RING,8MM
€ 1.00
7
92022112
ref: 7
WASHER,20.5X30X1,STEE
€ 6.00
7
92022144
ref: 7
SHIM-KICK SHAFT
€ 4.50
7
920221026
ref: 7
WASHER,20.3X30X0.7,ST
€ 4.00
8
92022113
ref: 8
WASHER,20.5X30X1
€ 6.00
9
92022161
ref: 9
WASHER-THRUST,25MM
€ 7.00
10
920281007
ref: 10
BUSHING,INPUT TOP GEA
€ 26.50
11
92028179
ref: 11
E/NO. 114501~118403
BUSHING,INPUT SHAFT
€ 57.50
11
920281032
ref: 11
E/NO. 118404~123772
BUSHING,INPUT SHAFT
€ 56.00
12
92033015
ref: 12
CIRCLIP
€ 2.50
13
92033026
ref: 13
CIRCLIP
€ 6.00
14
92045035
ref: 14
BEARING-BALL,83993SH2
€ 66.50
15
920461030
ref: 15
BEARING-NEEDLE,VS20/1
€ 23.00
16
131281012
ref: 16
SHAFT,OUTPUT
€ 136.00
17
131291033
ref: 17
TOP GEAR,OUTPUT SHAFT
€ 59.50
18
131291046
ref: 18
GEAR,OUTPUT LOW,35T
€ 105.00
19
131291047
ref: 19
2ND GEAR,OUTPUT SHAFT
€ 107.00
20
131291048
ref: 20
3RD GEAR,OUTPUT SHAFT
€ 100.00
21
131291049
ref: 21
4TH GEAR,OUTPUT SHAFT
€ 107.00
22
13144063
ref: 22
SPROCKET-OUTPUT,16T
€ 34.00
22
131441009
ref: 22
RACING USE ONLY
SPROCKET-OUTPUT,17T(#
€ 29.00
23
480J3000
ref: 23
CIRCLIP-TYPE-C,30MM
€ 3.50
24
600A0500
ref: 24
BALL-STEEL,5/32
€ 0.50
25
920151254
ref: 25
NUT,20MM
€ 10.50
26
922001065
ref: 26
WASHER
€ 4.50
27
92022112
ref: 27
WASHER,20.5X30X1,STEE
€ 6.00
27
92022144
ref: 27
SHIM-KICK SHAFT
€ 4.50
28
92022113
ref: 28
WASHER,20.5X30X1
€ 6.00
29
92024069
ref: 29
WASHER,TOOTHED,30.5X3
€ 3.50
30
92027288
ref: 30
COLLAR,25X32X23.5
€ 22.50
31
92028180
ref: 31
BUSHING,OUTPUT SFT
€ 21.50
32
92033015
ref: 32
CIRCLIP
€ 2.50
33
92045035
ref: 33
BEARING-BALL,83993SH2
€ 66.50
34
92055035
ref: 34
O RING
€ 3.00
