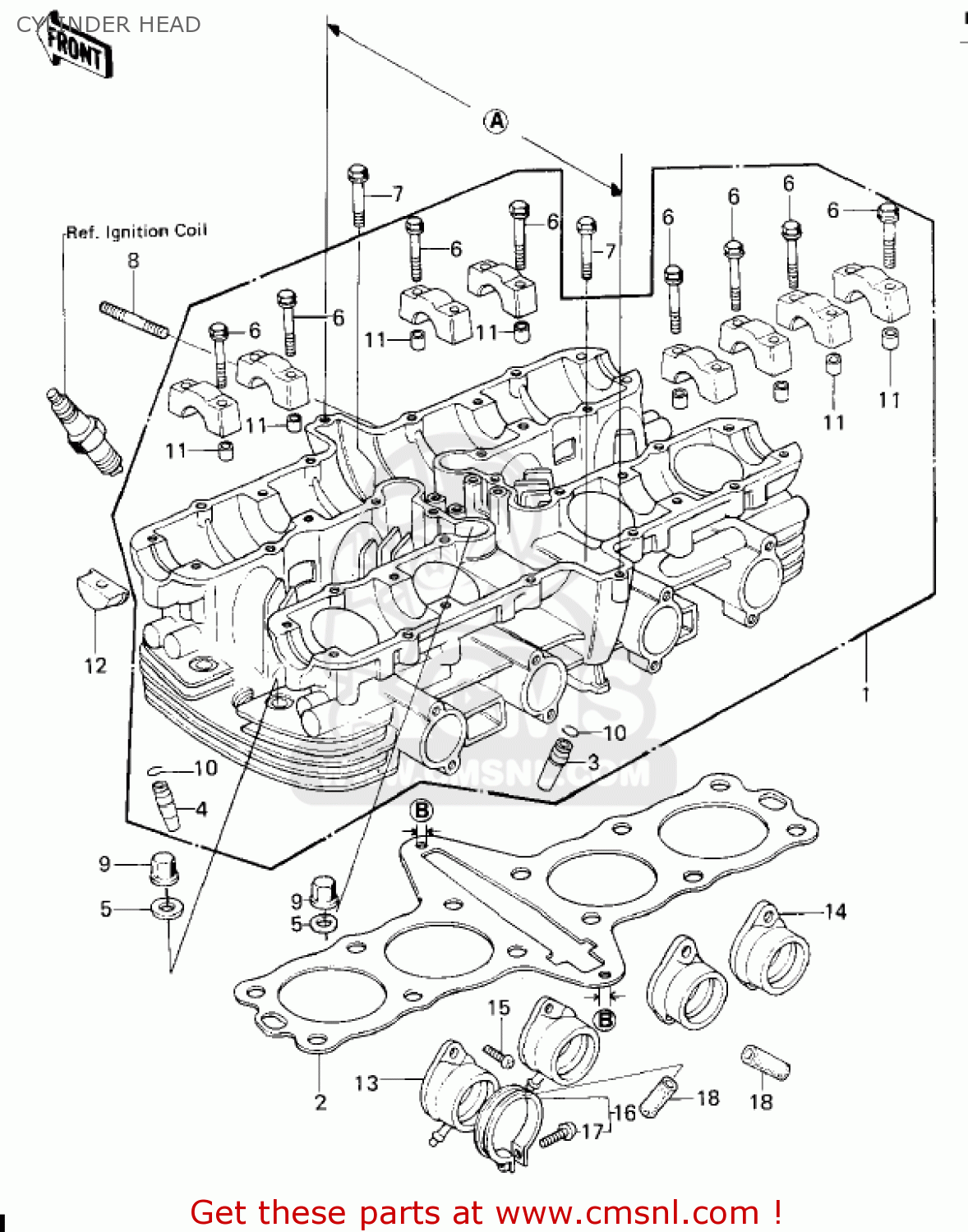

CYLINDER HEAD

ref

part #

description

quantity

1

110021014
ref: 1
E/NO. 114501~118270

CYLINDER HEAD ASSEMBLY

€ 688.00

1

110021075
ref: 1
E/NO. 118271~123772

CYLINDER HEAD ASSEMBLY,BLACK

€ 837.00

1

110021038
ref: 1

HEAD ASSY,CYL.

€ 1,237.50

2

110041107
ref: 2
E/NO. 114501~118270

GASKET-HEAD,CYLINDER (MCA)

€ 145.50

2

110041107
ref: 2
E/NO. 118271~123772

GASKET-HEAD,CYLINDER (MCA)

€ 145.50

3

12013009
ref: 3

GUIDE-VALVE,INTAKE

€ 18.00

4

490021002
ref: 4

GUIDE,EXHAUST VALVE

€ 16.00

5

411B1000
ref: 5

WASHER-PLAIN,10MM

€ 0.50

6

920011105
ref: 6

BOLT,HEX HEAD,6X38

€ 3.00

7

920021881
ref: 7
E/NO. 114501~118270

BOLT, 6X43

€ 4.50

7

920011445
ref: 7
E/NO. 118271~123772

BOLT,FLANGED,8X43

€ 6.00

7

920011445
ref: 7

BOLT,FLANGED,8X43

€ 6.00

8

92004066
ref: 8

STUD, 6X27

€ 3.50

9

92015076
ref: 9

NUT,FLANGED CAP,10MM

€ 9.00

10

92036023
ref: 10

CIRCLIP,VALVE GUIDE

€ 0.50

11

92042007
ref: 11

PIN-DOWEL

€ 4.00

12

920661111
ref: 12

PLUG,CAMSHAFT,11.35X1

€ 8.00

13

16065046
ref: 13

HOLDER-CARBURETOR,LH

€ 51.00

14

16065047
ref: 14

HOLDER-CARBURETOR,RH

€ 51.00

15

220B0618
ref: 15

SCREW-PAN HEAD,6X18

€ 2.50

16

92037178
ref: 16

CLAMP

€ 7.00

17

220B0525
ref: 17

SCREW-PAN-CROS,5X25

€ 2.50

18

92068006
ref: 18

RUBBER PLUG

€ 2.50

all assemblies
