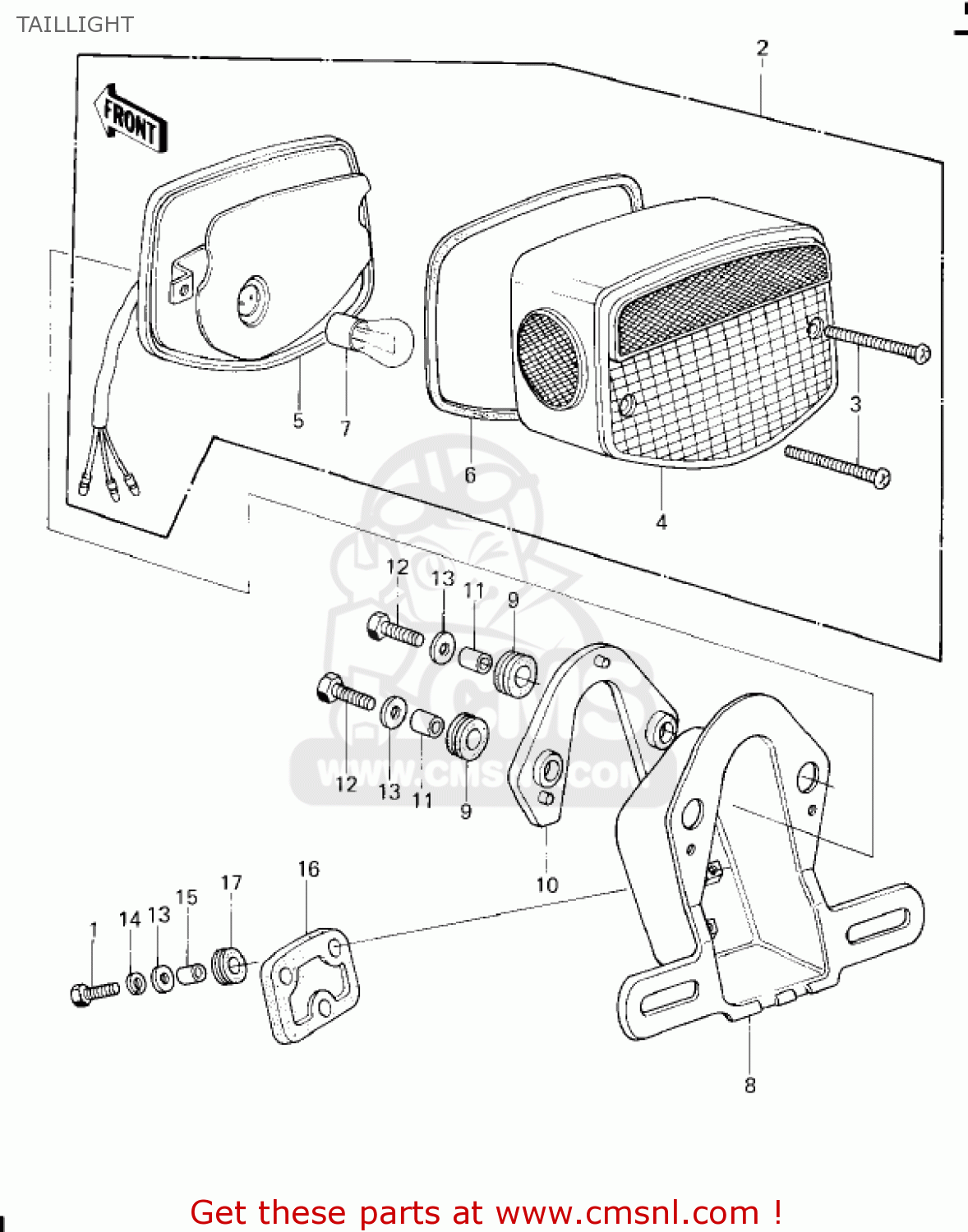

TAILLIGHT

ref

part #

description

quantity

1

112G0625
ref: 1

BOLT-UPSET,6X25

€ 4.00

2

23025064
ref: 2

LAMP-TAIL,220-40781MA

€ 139.00

3

220R0460
ref: 3

SCREW-PAN-CROS

€ 3.00

4

23026034
ref: 4

LENS,TAIL LAMP

€ 64.50

5

23027041
ref: 5

BODY-COMP-TAIL LAMP

€ 96.00

6

23028021
ref: 6

GASKET,TAIL LAMP LENS (NAS)

€ 8.00

7

92069059
ref: 7

BULB,12V 32/3CP

€ 5.50

8

23036051
ref: 8

BRACKET,LICENSE PLATE

€ 57.50

9

23066020
ref: 9

DAMPER

€ 10.00

10

23066023
ref: 10

DAMPER

€ 10.50

11

92027129
ref: 11

COLLAR,6.8X10X8.5

€ 3.00

12

112G0618
ref: 12

BOLT-UPSET

€ 0.50

13

92022125
ref: 13

WASHER,6.5X20X1.6

€ 1.00

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

92027156
ref: 15

COLLAR-BATTERY CASE

€ 3.00

16

35039004
ref: 16

DAMPER,TAIL LAMP

€ 12.00

17

92075121
ref: 17

DAMPER,FENDER

€ 2.50
