TRANSMISSION ('81KDX250-B1)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

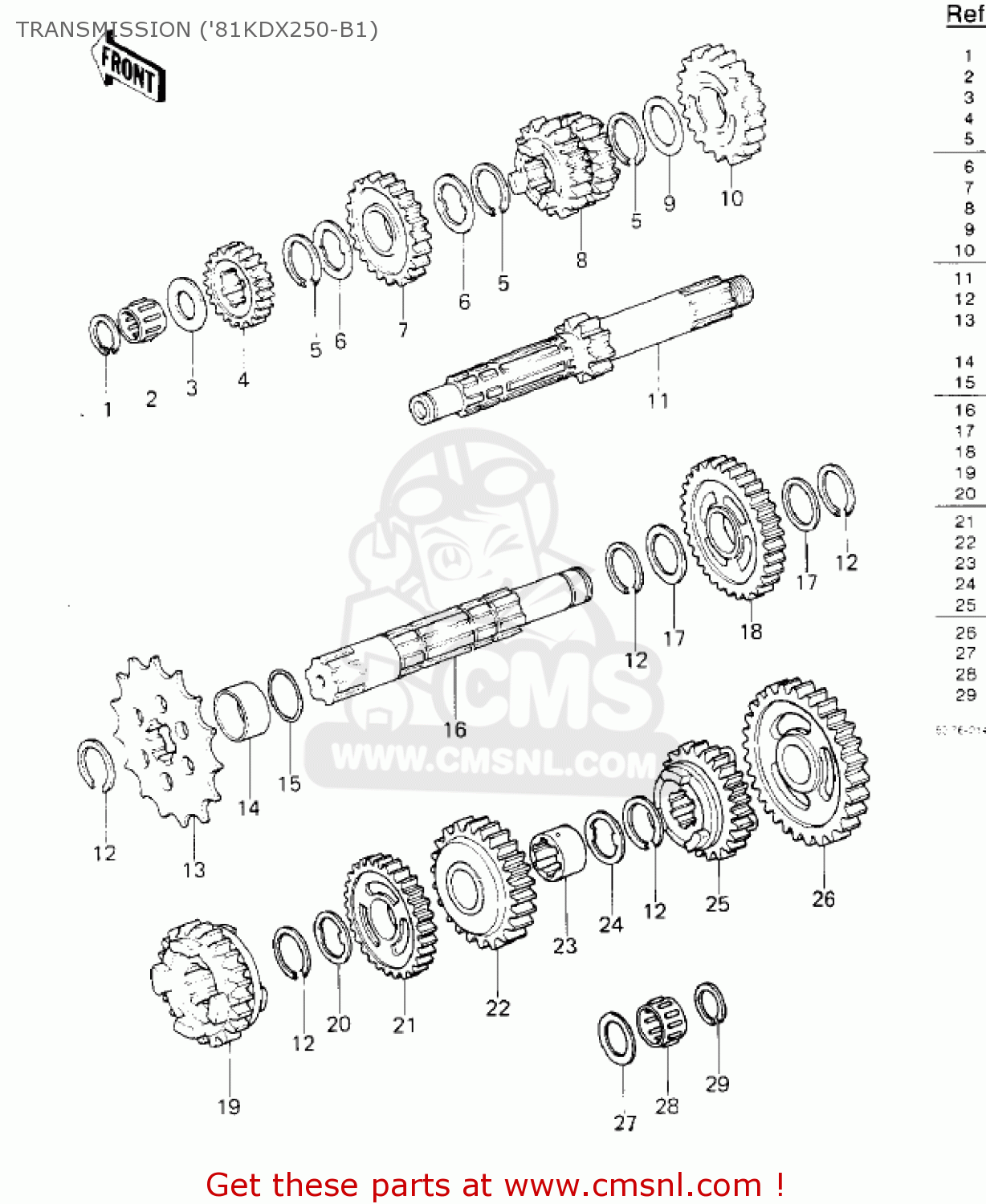

Transmission ('81kdx250-b1) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

TRANSMISSION ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

TRANSMISSION ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

1

92033032
ref: 1

CIRCLIP

€ 3.00

2

920461184
ref: 2

BEARING-NEEDLE

€ 20.00

3

92022281
ref: 3

WASHER,PLAIN

€ 4.00

4

131291226
ref: 4

GEAR,4TH

€ 57.00

5

92033025
ref: 5

CIRCLIP,25MM

€ 3.00

6

92024039
ref: 6

WASHER-LOCK

€ 4.00

7

131291228
ref: 7

GEAR,TOP

€ 60.00

8

131291599
ref: 8

GEAR,INPUT 2ND & 3RD

€ 85.00

9

92022198
ref: 9

WASHER-PLAIN

€ 3.50

10

131291227
ref: 10

GEAR,5TH

€ 60.00

11

131271033
ref: 11

GEAR,LOW

€ 109.50

12

92033026
ref: 12

CIRCLIP

€ 6.00

13

13144055
ref: 13
STD

SPROCKET-OUTPUT,13T

€ 28.50

13

131441006
ref: 13
OPT

SPROCKET-OUTPUT,14T

€ 24.00

14

92027163
ref: 14

COLLAR,25X30X10.1

€ 13.00

15

92055035
ref: 15

O RING

€ 3.00

16

131281029
ref: 16

OUTPUT SHAFT

€ 105.50

17

92022159
ref: 17

WASHER-THRUST,25MM

€ 5.50

18

131291232
ref: 18

GEAR,OUTPUT,4TH,22T

€ 40.50

19

131291234
ref: 19

TOP GEAR OUTPUT SHAFT

€ 85.00

20

920221072
ref: 20

WASHER,TOOTHED,25.3X3

€ 2.00

21

131291231
ref: 21

GEAR,3RD

€ 43.00

22

131291230
ref: 22

GEAR,2ND

€ 62.00

23

920281268
ref: 23

BUSHING,OUTPUT GEAR

€ 21.00

24

92024038
ref: 24

WASHER-LOCK

€ 4.00

25

131291352
ref: 25

GEAR,OUTPUT 5TH,20T

€ 87.50

26

131291229
ref: 26

GEAR,LOW

€ 66.00

27

92022112
ref: 27

WASHER,20.5X30X1,STEE

€ 6.00

28

920461170
ref: 28

BEARING-NEEDLE,KT2026

€ 9.00

29

92033029
ref: 29

CIRCLIP,18MM

€ 6.50
