REAR HUB/BRAKE/CHAIN ('81KDX250-

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

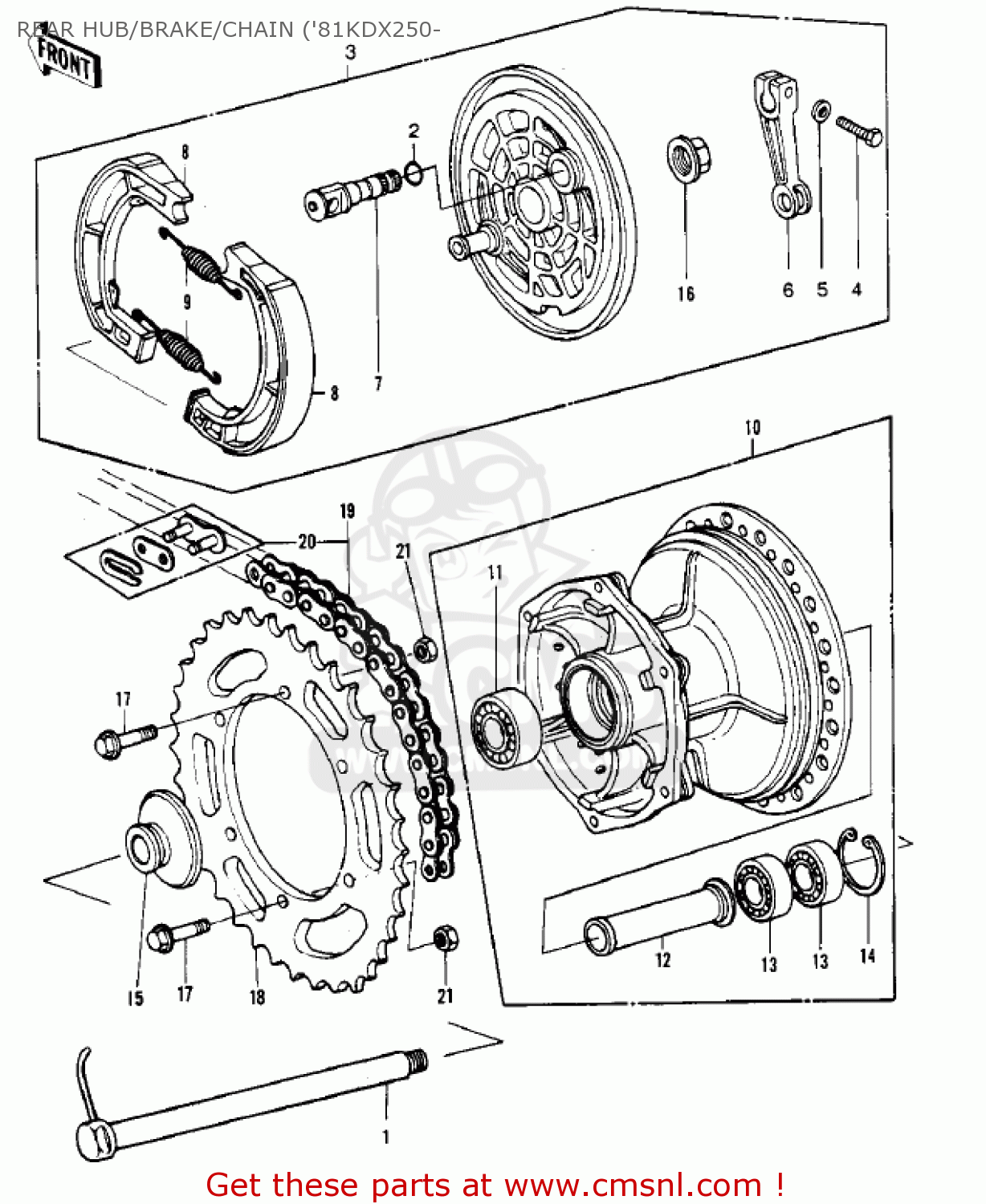

Rear hub/brake/chain ('81kdx250- diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

REAR HUB/BRAKE/CHAIN ('81KDX250- KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
REAR HUB/BRAKE/CHAIN ('81KDX250- KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
REAR HUB/BRAKE/CHAIN ('81KDX250- KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
1
410684002
ref: 1
AXLE,RR
€ 78.50
2
670B2015
ref: 2
O RING,15MM
670B2015
€ 1.00
3
410351047
ref: 3
PEDAL ASSY,REAR BRK
€ 193.00
4
112G0622
ref: 4
BOLT-UPSET
112G0622
€ 2.50
5
410B0600
ref: 5
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
6
410531022
ref: 6
LEVER-BRAKE CAM
410531022
€ 67.50
7
410501018
ref: 7
CAM-BRAKE
€ 17.00
8
410481018
ref: 8
SHOE BRAKE (MCA)
410481018
€ 13.50
9
42020004
ref: 9
SPRING-BRAKE SHOE
42020004
€ 5.50
10
410341019
ref: 10
DRUM ASSY,RR BRAKE
€ 369.50
11
601B6204UU
ref: 11
BEARING-BALL,6204UUC3
601B6204UU
€ 28.00
12
920271207
ref: 12
COLLAR,REAR DRUM
920271207
€ 36.00
13
601B6003U
ref: 13
BEARING-BALL,#6003UC3
601B6003U
€ 21.50
14
481J3500
ref: 14
CIRCLIP-TYPE-C,35MM
481J3500
€ 1.00
15
920274013
ref: 15
L.H.
COLLAR
€ 27.50
16
920151015
ref: 16
NUT,16MM
920151015
€ 13.50
17
920011041
ref: 17
BOLT,HEX HEAD,8X36
920011041
€ 6.50
18
420411006
ref: 18
STD
REAR SPROCKET,50T
€ 74.50
18
420411022
ref: 18
OPTION
REAR SPROCKET,48T
420411022
€ 72.00
18
420411008
ref: 18
OPTION
REAR SPROCKET,52T
€ 80.50
19
920571028
ref: 19
TSB 520 QR
CHAIN ASSY,DRIVE 116L
€ 109.50
20
920581002
ref: 20
JOINT,DRIVE CHAIN
920581002
€ 6.00
21
920151134
ref: 21
NUT,8MM
€ 3.50
