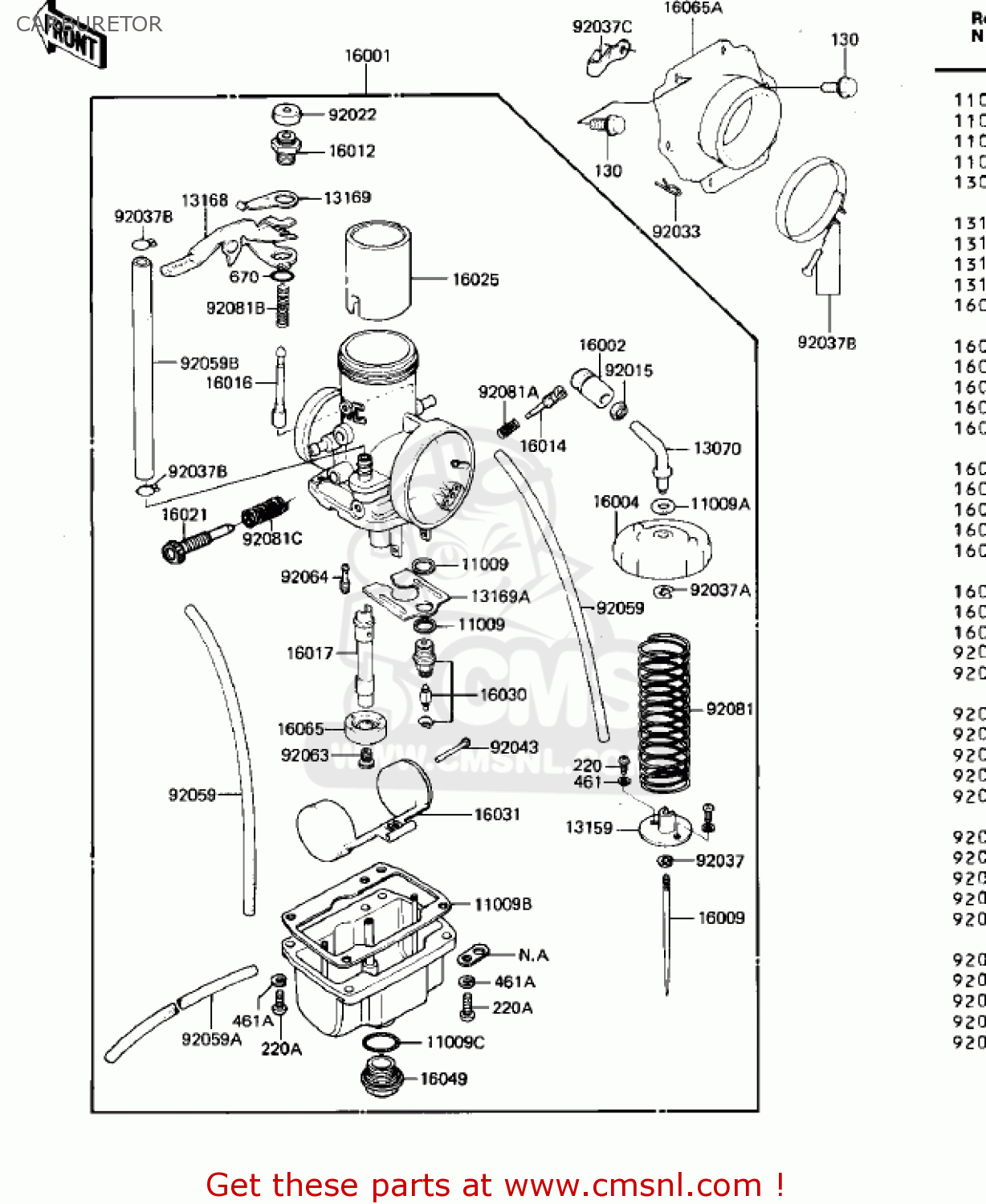

CARBURETOR

ref

part #

description

quantity

11009

110091076
ref: 11009

GASKET,FLOAT VALVE (NAS)

€ 2.00

11009A

110091191
ref: 11009A

GASKET,CABLE GUIDE (NAS)

€ 4.50

11009B

16019028
ref: 11009B

GASKET,FLOAT CHAMBER (NAS)

€ 11.50

11009C

16038009
ref: 11009C

GASKET,MAIN JET COVER

€ 5.50

13070

130701014
ref: 13070

GUIDE,CABLE

€ 24.50

13159

131591010
ref: 13159

CONNECTOR,THROTTLE

€ 9.00

13168

131681048
ref: 13168

LEVER STARTER PLUNGER

€ 15.00

13169

131691052
ref: 13169

SPRING PLATE STARTER

€ 8.50

13169A

131691520
ref: 13169A

PLATE,FLOAT CHAMBER

€ 7.50

16001

160011879
ref: 16001

CARBURETOR

€ 349.00

16002

160021006
ref: 16002

ADJUSTER-CABLE

€ 6.50

16004

160041010
ref: 16004

TOP,MIXING CHAMBER

€ 26.50

16009

160091117
ref: 16009

NEEDLE-JET,6FJ43

€ 21.00

16012

16012019
ref: 16012

CAP-STARTER PLUNGER

€ 12.50

16014

16014006
ref: 16014

SCREW-PILOT AIR

€ 9.00

16016

160161008
ref: 16016

PLUNGER,ASSY STARTER

€ 17.00

16017

160171112
ref: 16017

NEEDLE JET,R-6

€ 19.00

16021

160211034
ref: 16021

SCREW-THROTTLE STOP

€ 12.50

16025

160251072
ref: 16025

VALVE,THROTTLE CA3,0

€ 82.50

16030

160301015
ref: 16030

VALVE-FLOAT,#3.0

€ 31.50

16031

16031030
ref: 16031

FLOAT

€ 36.00

16065

160651045
ref: 16065

HOLDER-CARBURETOR,NEE

€ 40.50

16065A

160651048
ref: 16065A

HOLDER-CARBURETOR

€ 43.00

92015

16003004
ref: 92015

NUT-CABLE ADJUST LOCK

€ 4.50

92022

16039015
ref: 92022

CAP,STARTER PLUNGER

€ 4.50

92033

92036018
ref: 92033

CIRCLIP

€ 2.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

16008011
ref: 92037A

CLAMP,CABLE GUIDE

€ 4.50

92037B

92037056
ref: 92037B

CLAMP,FUEL TUBE

€ 3.00

92037C

92037116
ref: 92037C

CLAMP

€ 10.50

92043

16032008
ref: 92043

PIN,FLOAT

€ 4.00

92059

920591142
ref: 92059

TUBE,3.5X6.5X410

€ 16.50

92059A

920591235
ref: 92059A

TUBE,3.5X6.5X300

€ 3.50

92059B

920591443
ref: 92059B

TUBE,5.8X10.8X180

€ 19.50

92063

920631025
ref: 92063

JET-MAIN,#155R

€ 8.50

92064

92064031
ref: 92064

PILOT JET, # 60 A

€ 9.00

92081

16006028
ref: 92081

SPRING,THROTTLE VALVE

€ 8.50

92081A

16022007
ref: 92081A

SPRING-THR STOP SCREW

€ 5.50

92081B

920811181
ref: 92081B

SPRING,STARTER PLUNG

€ 3.00

92081C

920811200
ref: 92081C

SPRING,THROTT STP SCR

€ 5.50

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

214B0516A
ref: 220A

UNAVAILABLE IN PRICE BOOK

€ 0.50

461

461F0300
ref: 461

WASHER-SPRING,3MM

€ 0.50

461A

461F0500
ref: 461A

WASHER-SPRING,5MM

€ 0.50

670

670B1509
ref: 670

O RING,9MM

€ 1.00

all assemblies
