FRONT HUB/BRAKE ('81KDX250-B1)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

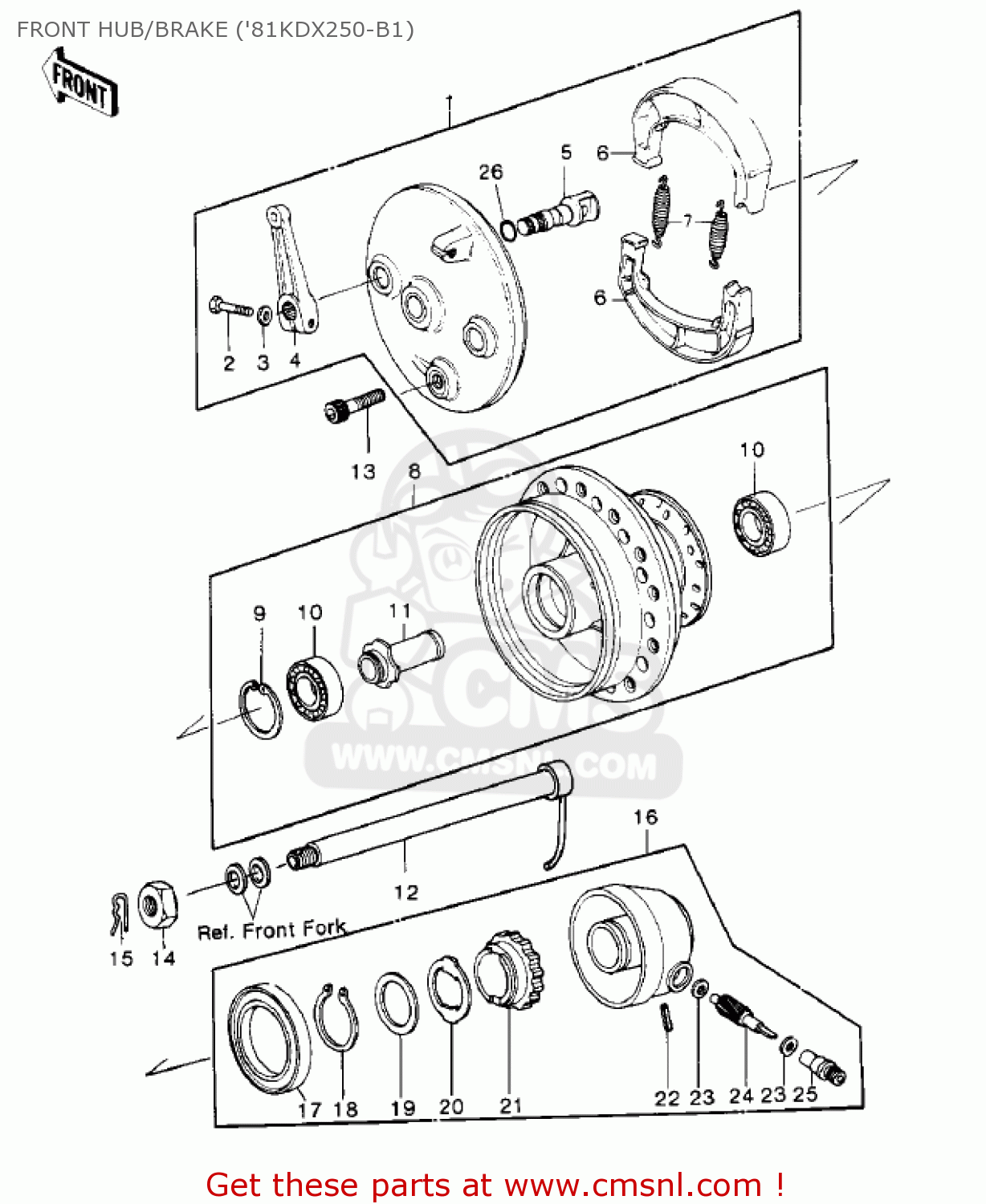

Front hub/brake ('81kdx250-b1) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

FRONT HUB/BRAKE ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
FRONT HUB/BRAKE ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
FRONT HUB/BRAKE ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
1
410351072
ref: 1
PANEL-ASSY-BRAKE,FR
€ 218.50
2
112G0622
ref: 2
BOLT-UPSET
112G0622
€ 2.50
3
410B0600
ref: 3
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
4
410531003
ref: 4
LEVER,FRNT BRAKE CAM
410531003
€ 43.50
5
410501002
ref: 5
CAM-BRAKE
410501002
€ 29.00
6
410481068
ref: 6
SHOE-BRAKE (NAS)
410481068
€ 16.00
7
42020004
ref: 7
SPRING-BRAKE SHOE
42020004
€ 5.50
8
410344001
ref: 8
DRUM ASSY FRONT BRAKE
€ 167.50
9
920331041
ref: 9
CIRCLIP,42MM
920331041
€ 4.00
10
92045033
ref: 10
BEARING,BALL,#6302NS
92045033
€ 20.00
11
920271034
ref: 11
COLLAR,FRNT BRAKE DRM
920271034
€ 15.00
12
410684001
ref: 12
AXLE FRONT
€ 36.00
13
920014002
ref: 13
BOLT SOCKET 10X40
€ 3.00
14
42045020
ref: 14
NUT,14MM
42045020
€ 6.50
15
550D3230
ref: 15
PIN-COTTER,3.2X30
550D3230
€ 1.50
16
41078011
ref: 16
GEAR BOX ASSY
41078011
€ 103.50
17
654A506509
ref: 17
OIL SEAL,#50659
654A506509
€ 10.50
18
480J2400
ref: 18
CIRCLIP-TYPE-C,24MM
480J2400
€ 3.50
19
41065005
ref: 19
WASHER,24.5X32X0.8
41065005
€ 2.00
20
41064015
ref: 20
RECEIVER-SPEEDOMETER
41064015
€ 5.50
21
41059027
ref: 21
25T
GEAR SPEEDOMETER
41059027
€ 21.00
22
41082001
ref: 22
PIN-SPRING
41082001
€ 2.50
23
41063001
ref: 23
WASHER-THRST SPD PINI
41063001
€ 3.00
24
41060015
ref: 24
8T
PINION,SPEEDOMETER
41060015
€ 17.00
25
41062005
ref: 25
BUSHING,SPEEDOMETER C
41062005
€ 12.00
26
670B2015
ref: 26
O RING,15MM
670B2015
€ 1.00
