IGNITION/GENERATOR

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

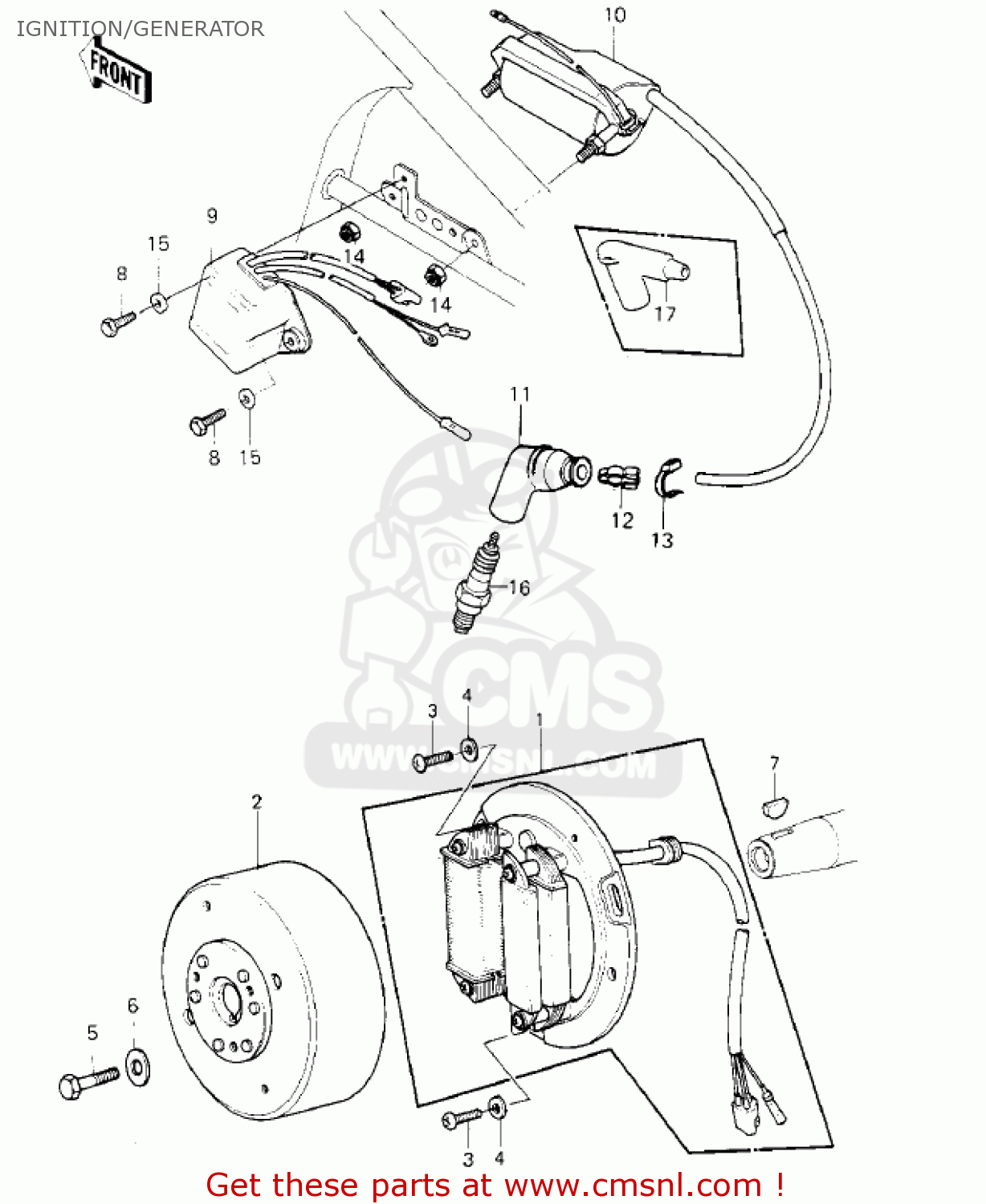

Ignition/generator diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

IGNITION/GENERATOR KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
IGNITION/GENERATOR KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
IGNITION/GENERATOR KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
1
210031036
ref: 1
STATOR ASSY
€ 375.00
2
210071031
ref: 2
ROTOR
€ 344.00
3
220B0620
ref: 3
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
4
411B0600
ref: 4
WASHER-PLAIN,6MM
411B0600
€ 0.50
5
115G0840
ref: 5
115G0840
6
92022276
ref: 6
WASHER,PLAIN,8MM
92022276
€ 6.50
7
92038001
ref: 7
WOODRUFF KEY
92038001
€ 3.00
8
112G0618
ref: 8
BOLT-UPSET
112G0618
€ 0.50
9
211191105
ref: 9
IGNITER
€ 361.00
10
211211050
ref: 10
COIL,IGNITION
€ 118.00
11
211301006
ref: 11
U.S.
CAP-SPARK PLUG
211301006
€ 18.00
12
21169001
ref: 12
U.S.
TERMINAL,PLUG CAP
21169001
€ 10.00
13
920371173
ref: 13
U.S.
CLAMP,SPARK PLUG CAP
920371173
€ 1.00
14
92019008
ref: 14
NUT-LOCK,6MM
92019008
€ 3.00
15
92022024
ref: 15
WASHER,7X16X1.2
92022024
€ 2.50
16
B8ESA
ref: 16
U.S.
NGK SPARK-PLUG B8ES
B8ESA
€ 3.00
16
BR8ESA
ref: 16
CANADA
NGK SPARK-PLUG BR8ES
BR8ESA
€ 3.50
17
211601009
ref: 17
CANADA
CAP-ASSY-PLUG
211601009
€ 28.00
