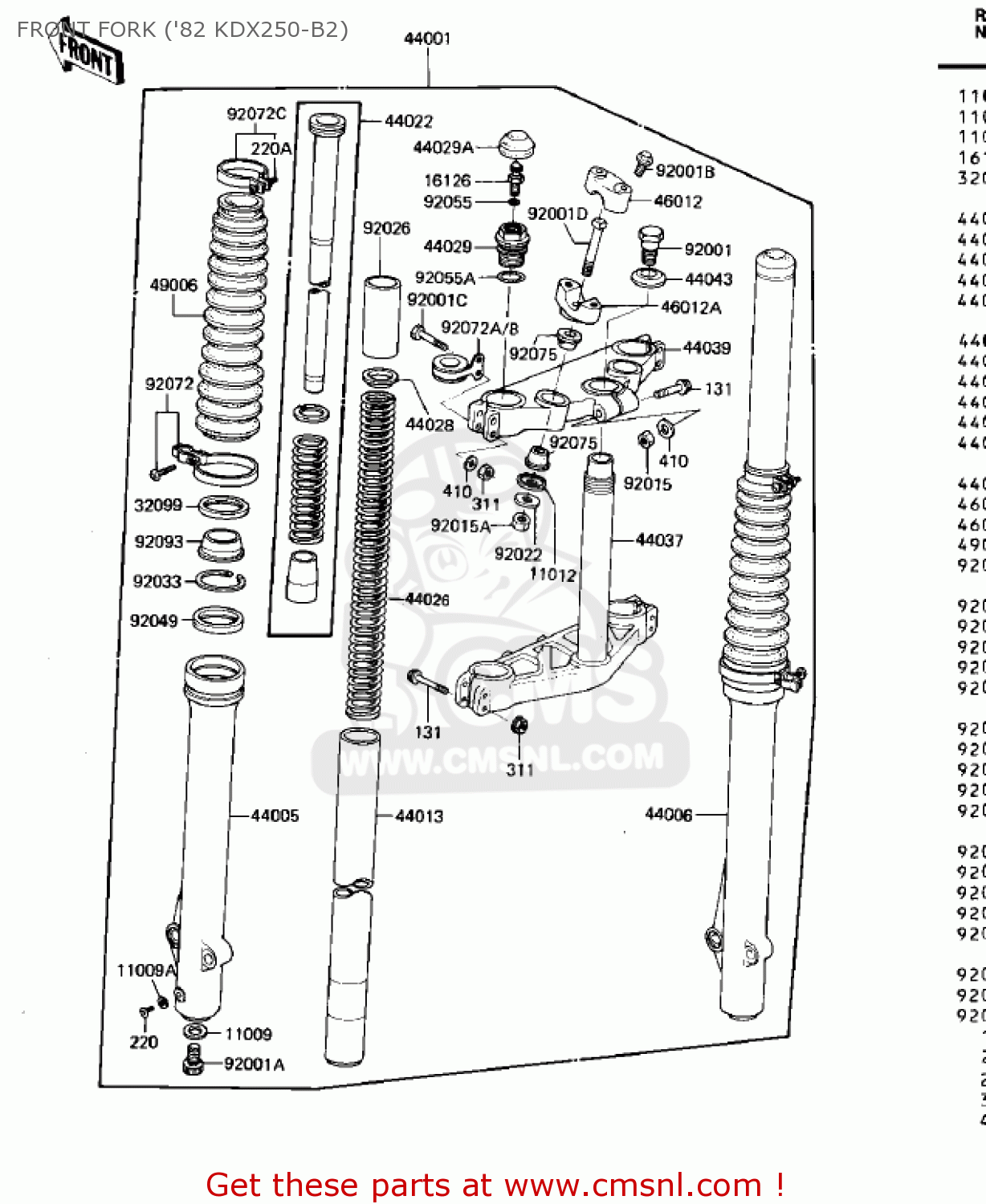

FRONT FORK ('82 KDX250-B2)

ref

part #

description

quantity

11009

110091127
ref: 11009

GASKET,FORK CYLID BOL (NAS)

€ 3.00

11009A

44045002
ref: 11009A

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

11012

110121165
ref: 11012

COVER-DAMPER RUBBER

€ 0.50

16126

161261003
ref: 16126

VALVE,AIR

€ 22.50

32099

320991013
ref: 32099

CASE,DUST SHIELD

€ 3.50

44001

440011334
ref: 44001

FORK-FRONT

€ 1,123.50

44005

440051095
ref: 44005

FORK OUTER TUBE,LH

€ 189.00

44006

440061095
ref: 44006

FORK OUTER TUBE,RH

€ 213.50

44013

440134001
ref: 44013

TUBE FORK INNER

€ 159.50

44022

440224001
ref: 44022

CYLINDER ASSY FORK

€ 58.50

44026

440264001
ref: 44026

SPRING FORK INNER

€ 33.50

44028

440281003
ref: 44028

GUIDE-FORK SPRING

€ 7.50

44029

440291008
ref: 44029

CAP,FORK TOP

€ 38.50

44029A

440291009
ref: 44029A

SEAT-FORK SPRING

€ 4.00

44037

440371065
ref: 44037

STEM,STEERING

€ 283.00

44039

440391040
ref: 44039

BRACKET-UPPER

€ 133.50

44043

44043052
ref: 44043

WASHER,PLAIN

€ 6.00

46012

460121003
ref: 46012

HOLDER,HANDLEBAR

€ 8.50

46012A

460121012
ref: 46012A

HOLDER-HANDLE

€ 18.00

49006

490061174
ref: 49006

BOOT,FORK

€ 43.00

92001

44041065
ref: 92001

BOLT,FORK TOP

€ 18.50

92001A

920011186
ref: 92001A

BOLT,FORK CYLINDER

€ 2.00

92001B

920011278
ref: 92001B

BOLT

€ 2.00

92001C

920011398
ref: 92001C

BOLT,FLANGED 8X55

€ 2.50

92001D

920011436
ref: 92001D

BOLT

€ 6.00

92015

920151124
ref: 92015

NUT,LOCK,8MM

€ 3.50

92015A

920151142
ref: 92015A

NUT

€ 3.00

92022

920221262
ref: 92022

WASHER,FORK OUTER PIP

€ 5.50

92026

920264002
ref: 92026

SPACER,FORK SPRING

€ 3.50

92033

920331035
ref: 92033

SNAP RING,FORK OUT TU

€ 2.50

92049

920491042
ref: 92049

OIL SEAL,FORK OUTE TU

€ 13.50

92055

920551018
ref: 92055

RING-O,AIR VALVE

€ 2.50

92055A

920551050
ref: 92055A

RING-O,FORK TOP CAP

€ 4.00

92072

920721026
ref: 92072

CLAMP,BOOT,L.H

€ 8.50

92072A

920721027
ref: 92072A

BAND,CABLE

€ 12.50

92072B

920721040
ref: 92072B

BAND,CABLE

€ 12.50

92072C

920721046
ref: 92072C

BAND,BOOT

€ 6.50

92075

920751307
ref: 92075

DAMPER RUBBER

€ 3.00

92093

920931035
ref: 92093

DUST SHIELD,FORK OUTR

€ 10.50

131

130G0855
ref: 131

BOLT-FLANGED,8X55

€ 1.50

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0420
ref: 220A

SCREW-PAN-CROS

€ 2.00

311

311G0800
ref: 311

NUT-HEX,8MM

€ 2.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50
