MUFFLER ('81KDX250-B1)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

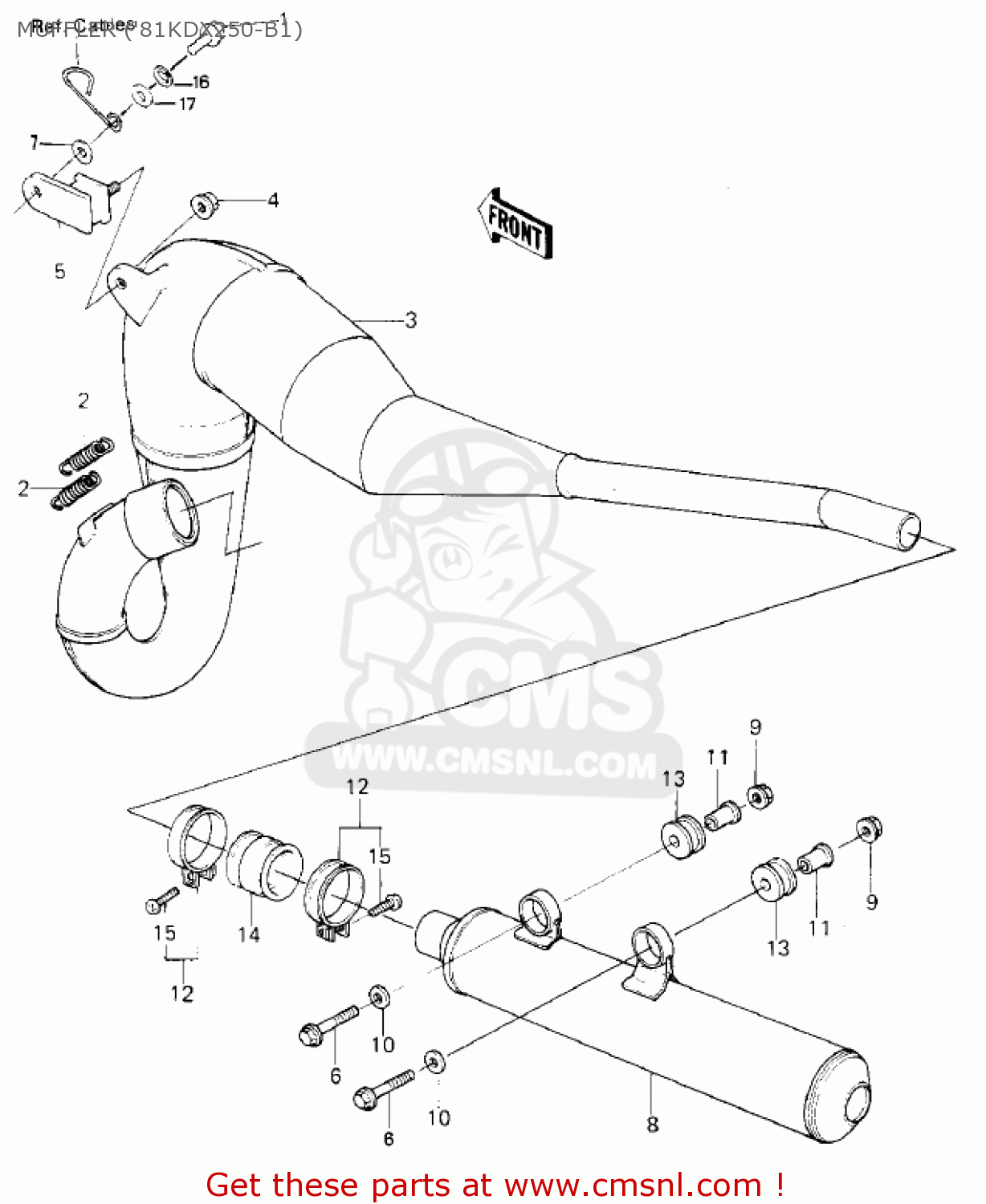

Muffler ('81kdx250-b1) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

MUFFLER ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
MUFFLER ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
MUFFLER ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
1
115G0825
ref: 1
BOLT-HEX,HEAD,8X25
115G0825
€ 3.00
2
18071003
ref: 2
SPRING,MUFFLER CONNEC
18071003
€ 7.50
3
180021126
ref: 3
BODY-COMP-MUFFLER,BLK
€ 186.00
4
920151124
ref: 4
NUT,LOCK,8MM
920151124
€ 3.50
5
920751060
ref: 5
DAMPER,MUFFLER FITTIN
920751060
€ 18.50
6
130G0830
ref: 6
BOLT,8X30
130G0830
€ 1.00
7
920221561
ref: 7
WASHER,8.5X20X1.6
920221561
€ 2.50
8
180021163
ref: 8
MUFFLER,F.BLACK
€ 204.50
9
920151124
ref: 9
NUT,LOCK,8MM
920151124
€ 3.50
10
92022298
ref: 10
WASHER,8.5X35X2.3
€ 9.50
11
920271134
ref: 11
COLLAR,FUEL TANK FITT
920271134
€ 7.00
12
92037177
ref: 12
CLAMP
€ 7.50
13
920751196
ref: 13
DAMPER,MUFFLER
920751196
€ 5.50
14
920931014
ref: 14
SEAL,MUFFLER
€ 19.50
15
220B0525
ref: 15
SCREW-PAN-CROS,5X25
220B0525
€ 2.50
16
461F0800
ref: 16
WASHER-SPRING,8MM
461F0800
€ 0.50
17
410B0800
ref: 17
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
