FENDERS ('81KDX250-B1)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

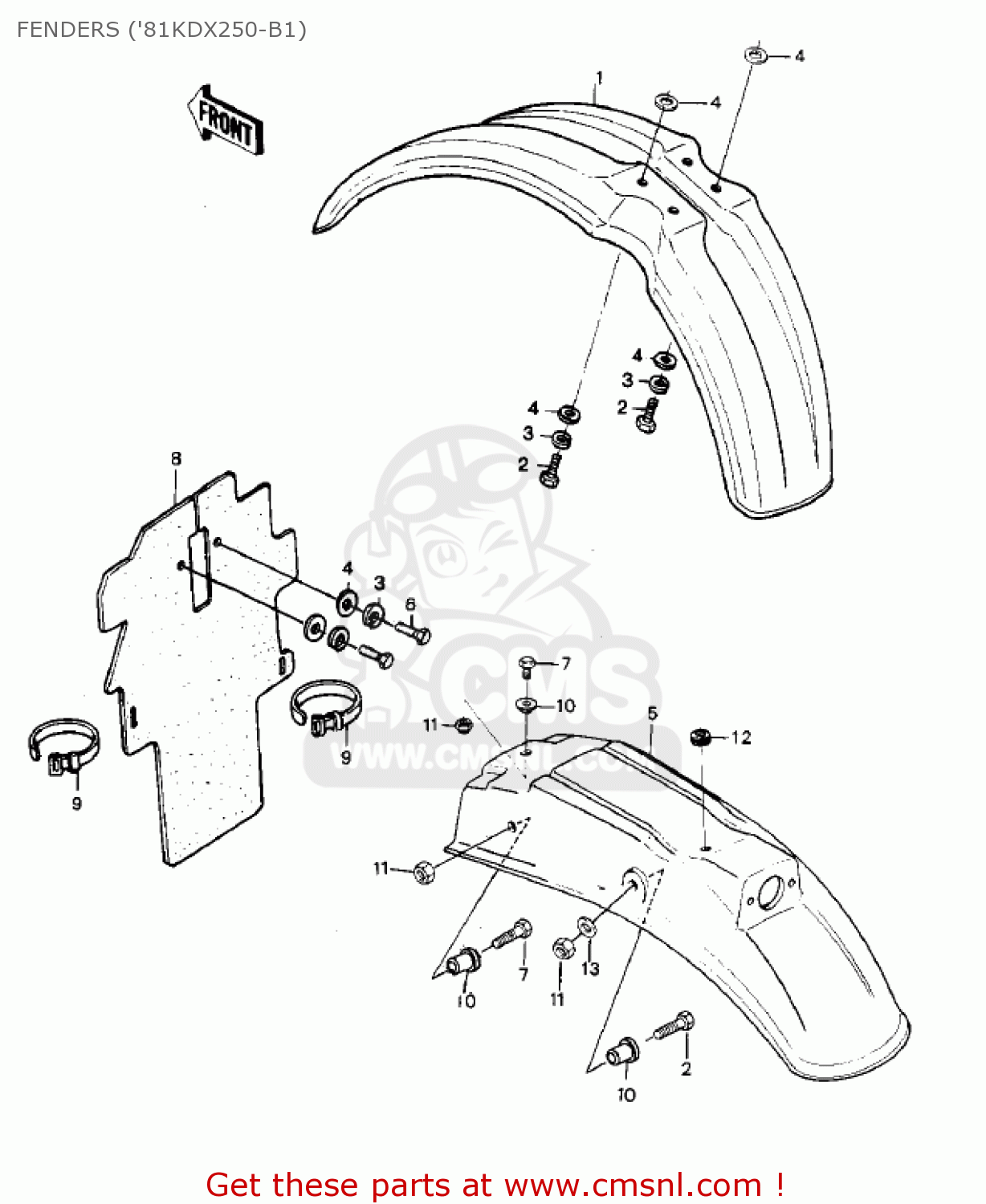

Fenders ('81kdx250-b1) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

FENDERS ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
FENDERS ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
FENDERS ('81KDX250-B1) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
1
3500412336W
ref: 1
FENDER-FRONT,L.GREEN
3500412336W
€ 61.50
2
112G0616
ref: 2
BOLT UPSET,6X16
112G0616
€ 1.00
3
461F0600
ref: 3
WASHER-SPRING,6MM
461F0600
€ 0.50
4
92022125
ref: 4
WASHER,6.5X20X1.6
92022125
€ 1.00
5
3502210686W
ref: 5
FENDER-COMP-REAR
€ 58.50
6
112G0612
ref: 6
BOLT-UPSET
112G0612
€ 2.50
7
112B0614
ref: 7
BOLT-UPSET 6X14
112B0614
€ 2.50
8
350191013
ref: 8
FLAP,FENDER
€ 8.50
9
920723505
ref: 9
BAND,L=203.2
€ 1.00
10
920271260
ref: 10
COLLAR
920271260
€ 4.00
11
92019008
ref: 11
NUT-LOCK,6MM
92019008
€ 3.00
12
92071024
ref: 12
GROMMET
92071024
€ 3.00
13
411B0600
ref: 13
WASHER-PLAIN,6MM
411B0600
€ 0.50
