HEADLIGHT ('82 KDX250-B2)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

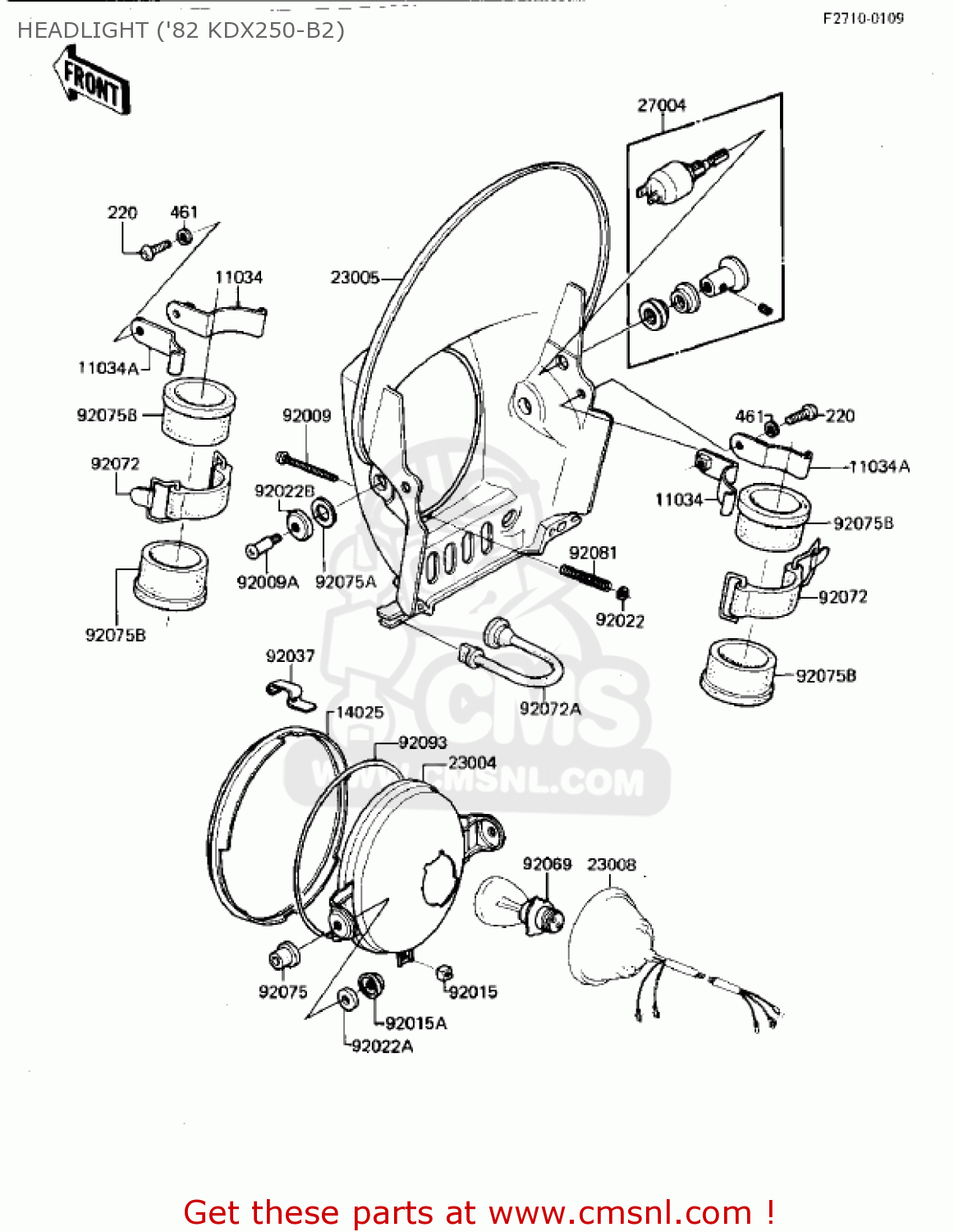

Headlight ('82 kdx250-b2) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

HEADLIGHT ('82 KDX250-B2) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

HEADLIGHT ('82 KDX250-B2) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11034

110341688
ref: 11034

BRACKET,HEAD LAMP FIT

€ 6.00

11034A

110341693
ref: 11034A

BRACKET,HEAD LAMP FIT

€ 4.50

14025

140254002
ref: 14025

COVER,HEAD LAMP

€ 18.00

23004

230044001
ref: 23004

LENS UNIT,HEAD LAMP

€ 35.00

23005

2300550027F
ref: 23005

BODY-COMP-HEAD LAMP,L

€ 102.00

23008

230081153
ref: 23008

SOCKET ASSEMBLY

€ 33.50

27004

270044001
ref: 27004

SWITCH ASSY,HEAD LAMP

€ 48.50

92009

920094002
ref: 92009

SCREW,ADJUSTING,4X43

€ 4.00

92009A

920094003
ref: 92009A

SCREW,HEAD LAMP

€ 1.50

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

23020023
ref: 92015A

NUT,5MM

€ 3.00

92022

23021004
ref: 92022

WASHER,4.1X8X0.8

€ 2.00

92022A

23021012
ref: 92022A

WASHER

€ 3.00

92022B

920221258
ref: 92022B

WASHER,7.2X21

€ 2.50

92037

920374001
ref: 92037

CLAMP,HEAD LAMP

€ 6.00

92069

920694001
ref: 92069

BULB,6V-35/25W

€ 9.00

92072

92072076
ref: 92072

BAND,L=40

€ 14.00

92072A

92072077
ref: 92072A

BAND

€ 3.50

92075

920751328
ref: 92075

DAMPER

€ 2.50

92075A

920751329
ref: 92075A

DAMPER

€ 1.50

92075B

920751375
ref: 92075B

DAMPER

€ 6.50

92081

920814003
ref: 92081

SPRING,FOCUS ADJUST

€ 1.50

92093

920934001
ref: 92093

SEAL,HEAD LAMP

€ 3.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
