SWING ARM

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

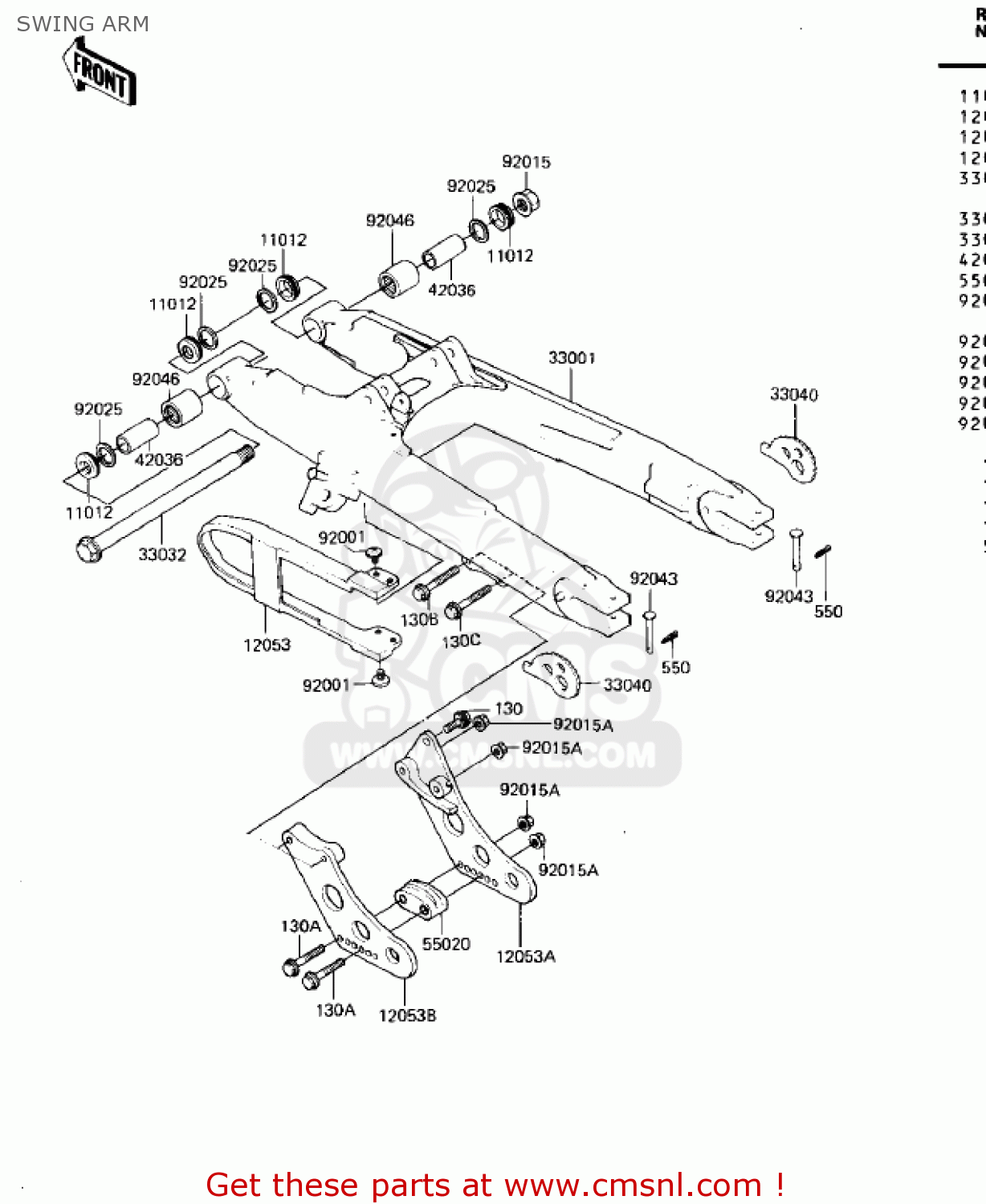

Swing arm diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

SWING ARM KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

SWING ARM KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121207
ref: 11012

CAP

€ 12.00

12053

120531062
ref: 12053

GUIDE-CHAIN

€ 34.50

12053A

120531063
ref: 12053A

GUIDE-CHAIN,INSIDE

€ 31.00

12053B

120531064
ref: 12053B

GUIDE-CHAIN,OUTSIDE

€ 31.00

33001

330011129
ref: 33001

ARM-COMP-SWING

€ 376.00

33032

330321042
ref: 33032

SHAFT-SWING ARM

€ 49.00

33040

330401060
ref: 33040

ADJUSTER-CHAIN

€ 21.00

42036

420361056
ref: 42036

SLEEVE,SWING ARM

€ 13.50

55020

550201060
ref: 55020

GUARD,CHAIN

€ 17.00

92001

920091286
ref: 92001

SCREW,6X10

€ 2.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92025

920251116
ref: 92025

SHIM,20X26.6X0.5

€ 2.50

92043

920431110
ref: 92043

PIN,6X44.5

€ 3.00

92046

920461031
ref: 92046

BEARING-NEEDLE,HMK203

€ 20.50

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

130A

130G0645
ref: 130A

BOLT,FLANGED,6X45

€ 0.50

130B

130G0655
ref: 130B

BOLT,FLANGED,6X55

€ 3.00

130C

130G0660
ref: 130C

BOLT-FLANGED,6X60

€ 3.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
