FENDERS ('82 KDX250-B2)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

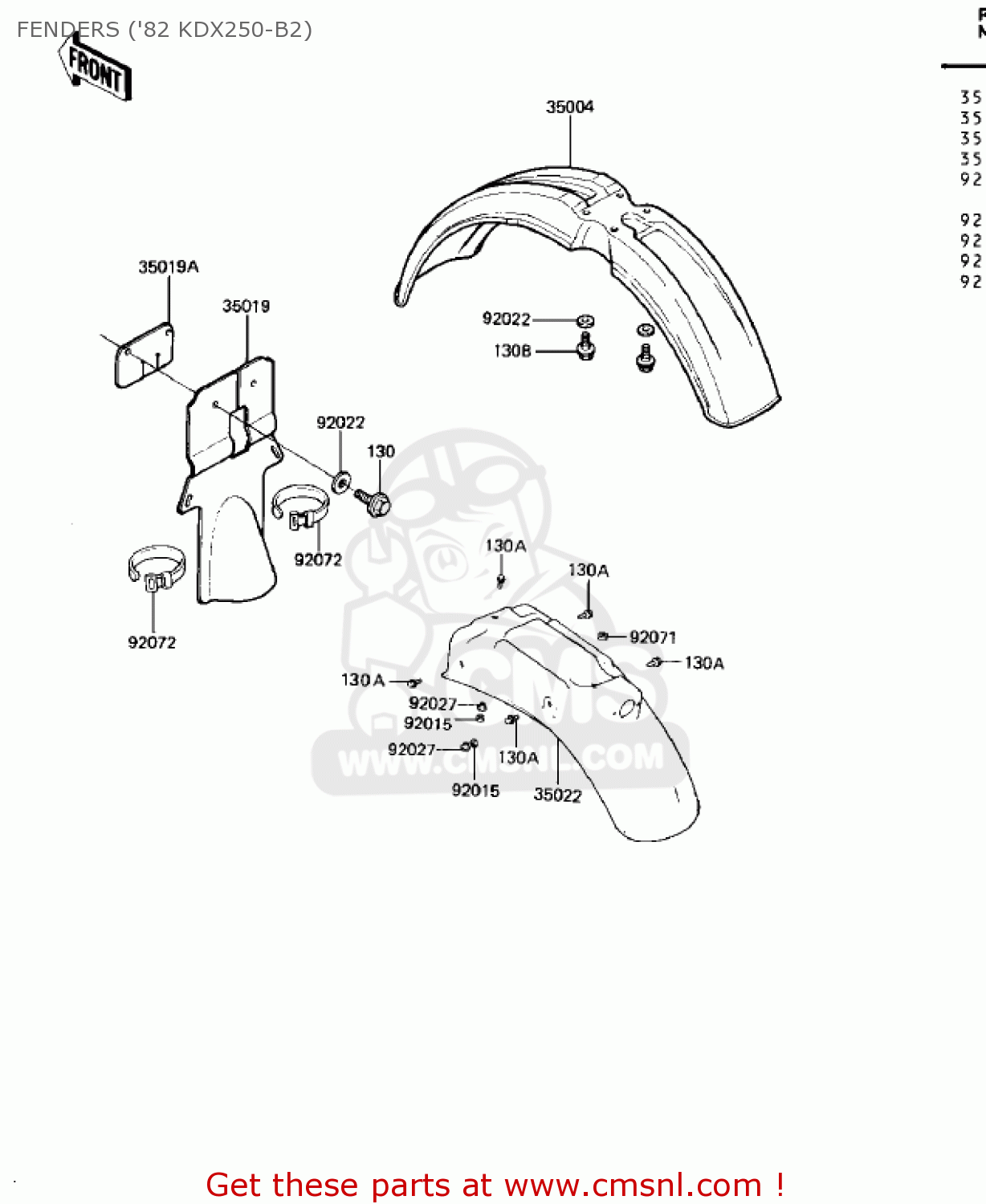

Fenders ('82 kdx250-b2) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

35004

3500412336W
ref: 35004

FENDER-FRONT,L.GREEN

€ 61.50

35019

350191035
ref: 35019

FLAP,REAR FENDER

€ 13.50

35019A

350191038
ref: 35019A

FLAP

€ 6.00

35022

3502210956W
ref: 35022

FENDER-COMP-REAR,L.GR

€ 23.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271260
ref: 92027

COLLAR

€ 4.00

92071

92071024
ref: 92071

GROMMET

€ 3.00

92072

92072056
ref: 92072

BAND,RUBBER

€ 3.00

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

130A

130G0614
ref: 130A

BOLT,FLANGED,6X14

€ 0.50

130B

130G0618
ref: 130B

BOLT-FLANGED,6X18

€ 1.00
