IGNITION

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

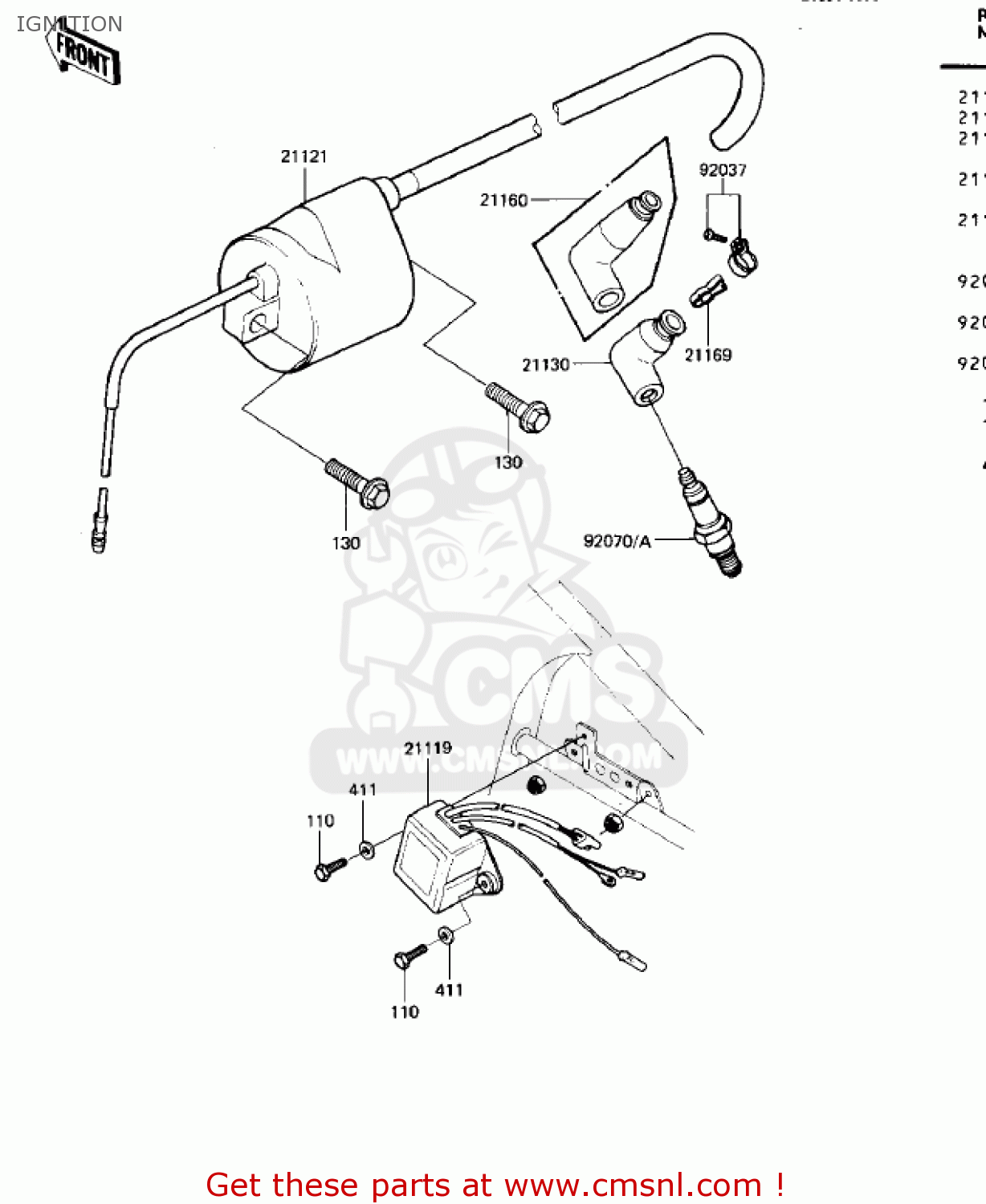

Ignition diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

21119

211191105
ref: 21119

IGNITER

€ 361.00

21121

211211056
ref: 21121

COIL-IGNITION

€ 69.50

21130

211301006
ref: 21130
US

CAP-SPARK PLUG

€ 18.00

21160

211601009
ref: 21160
CN

CAP-ASSY-PLUG

€ 28.00

21169

21169001
ref: 21169
US

TERMINAL,PLUG CAP

€ 10.00

92037

920371173
ref: 92037
US

CLAMP,SPARK PLUG CAP

€ 1.00

92070

B8ESA
ref: 92070
US

NGK SPARK-PLUG B8ES

€ 3.00

92070A

920701022
ref: 92070A
CN

BR8ES (NGK SPARKPLUG)

€ 3.50

110

112G0618
ref: 110

BOLT-UPSET

€ 0.50

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50
