FRONT HUB/BRAKE ('82 KDX250-B2)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

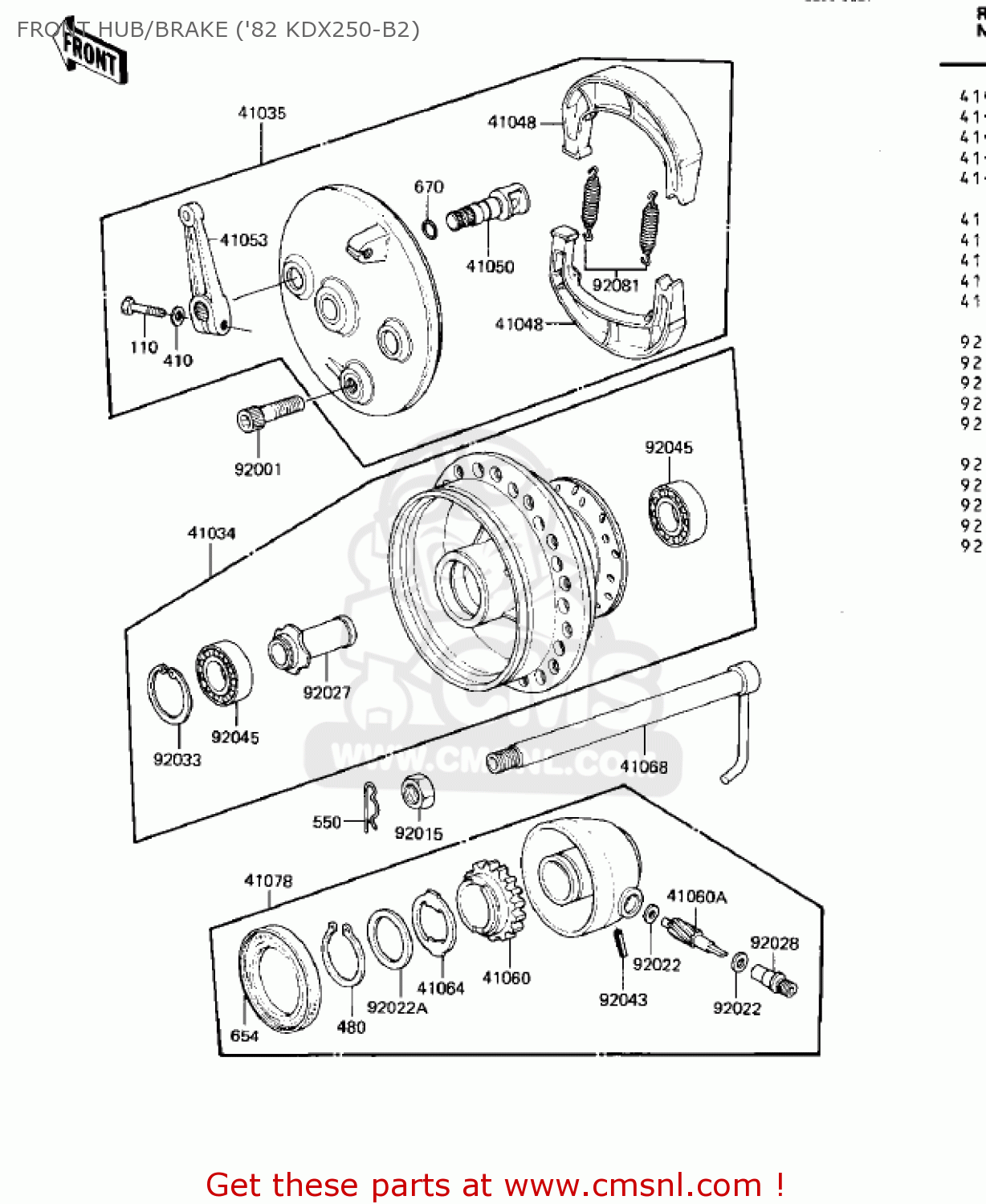

Front hub/brake ('82 kdx250-b2) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

FRONT HUB/BRAKE ('82 KDX250-B2) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

FRONT HUB/BRAKE ('82 KDX250-B2) KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

41034

410344001
ref: 41034

DRUM ASSY FRONT BRAKE

€ 167.50

41035

410351072
ref: 41035

PANEL-ASSY-BRAKE,FR

€ 218.50

41048

410481068
ref: 41048

SHOE-BRAKE (NAS)

€ 16.00

41050

410501002
ref: 41050

CAM-BRAKE

€ 29.00

41053

410531003
ref: 41053

LEVER,FRNT BRAKE CAM

€ 43.50

41060

41059027
ref: 41060

GEAR SPEEDOMETER

€ 21.00

41060A

41060015
ref: 41060A

PINION,SPEEDOMETER

€ 17.00

41064

41064015
ref: 41064

RECEIVER-SPEEDOMETER

€ 5.50

41068

410684001
ref: 41068

AXLE FRONT

€ 36.00

41078

41078011
ref: 41078

GEAR BOX ASSY

€ 103.50

92001

920014002
ref: 92001

BOLT SOCKET 10X40

€ 3.00

92015

42045020
ref: 92015

NUT,14MM

€ 6.50

92022

41063001
ref: 92022

WASHER-THRST SPD PINI

€ 3.00

92022A

41065005
ref: 92022A

WASHER,24.5X32X0.8

€ 2.00

92027

920271034
ref: 92027

COLLAR,FRNT BRAKE DRM

€ 15.00

92028

41062005
ref: 92028

BUSHING,SPEEDOMETER C

€ 12.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92043

41082001
ref: 92043

PIN-SPRING

€ 2.50

92045

92045033
ref: 92045

BEARING,BALL,#6302NS

€ 20.00

92081

42020004
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

110

112G0622
ref: 110

BOLT-UPSET

€ 2.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

480

480J2400
ref: 480

CIRCLIP-TYPE-C,24MM

€ 3.50

550

550D3230
ref: 550

PIN-COTTER,3.2X30

€ 1.50

654

654A506509
ref: 654

OIL SEAL,#50659

€ 10.50

670

670B2015
ref: 670

O RING,15MM

€ 1.00
