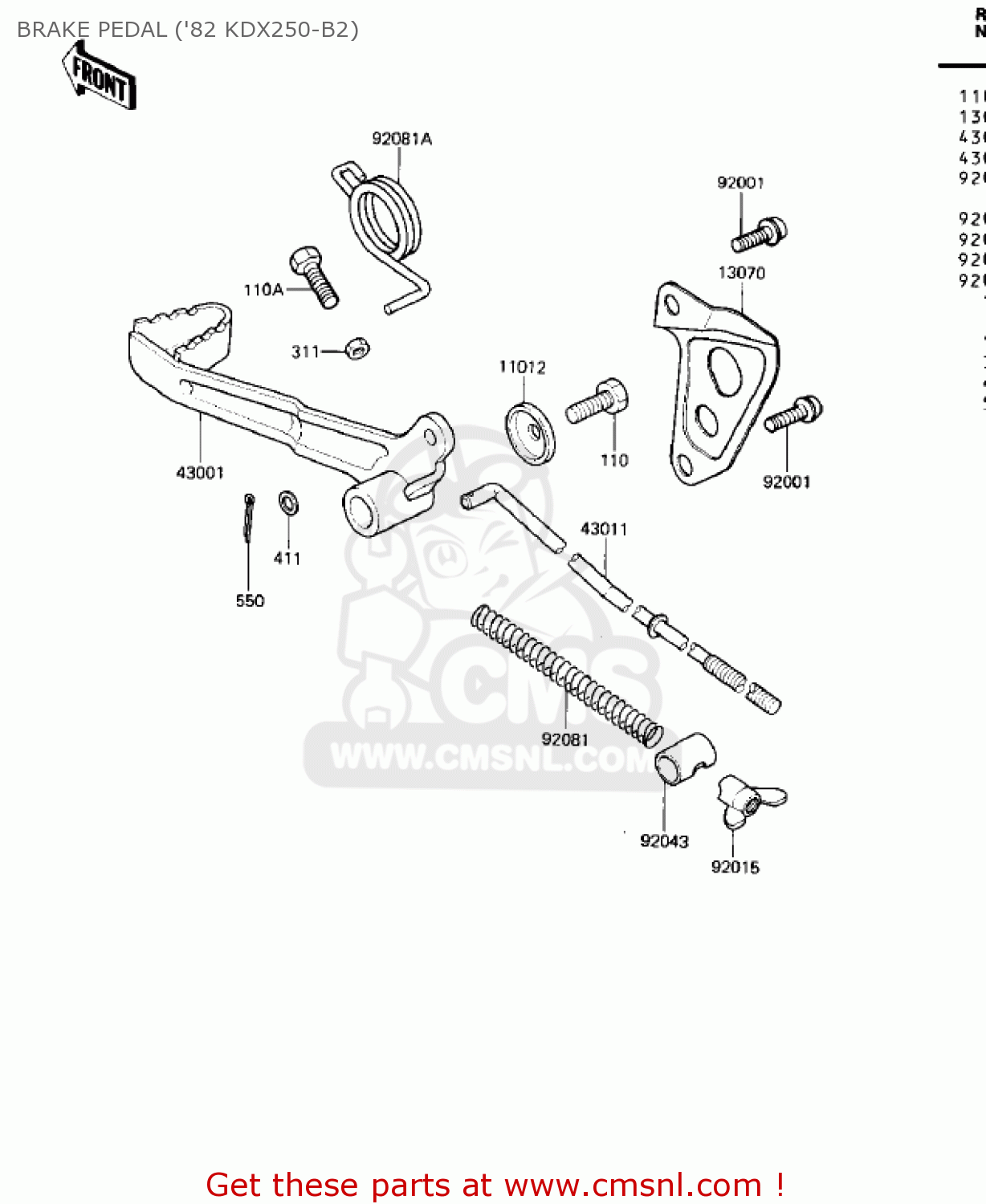

BRAKE PEDAL ('82 KDX250-B2)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

Brake pedal ('82 kdx250-b2) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121204
ref: 11012

CAP

€ 3.00

13070

130701055
ref: 13070

GUIDE

€ 4.50

43001

430011075
ref: 43001

LEVER-BRAKE

€ 36.00

43011

430111045
ref: 43011

ROD-BRAKE

€ 8.50

92001

920091286
ref: 92001

SCREW,6X10

€ 2.50

92015

920154004
ref: 92015

NUT,BRAKE ADJUSTING

€ 4.50

92043

920431024
ref: 92043

PIN,BRAKE

€ 6.00

92081

43012001
ref: 92081

SPRING,BRAKE ROD

€ 3.00

92081A

920811418
ref: 92081A

SPRING

€ 4.00

110

112G0610
ref: 110

BOLT,6X10

€ 0.50

110A

112G0620
ref: 110A

BOLT 6X20

€ 1.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
