AIR CLEANER ('81KDX250-B1)

KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

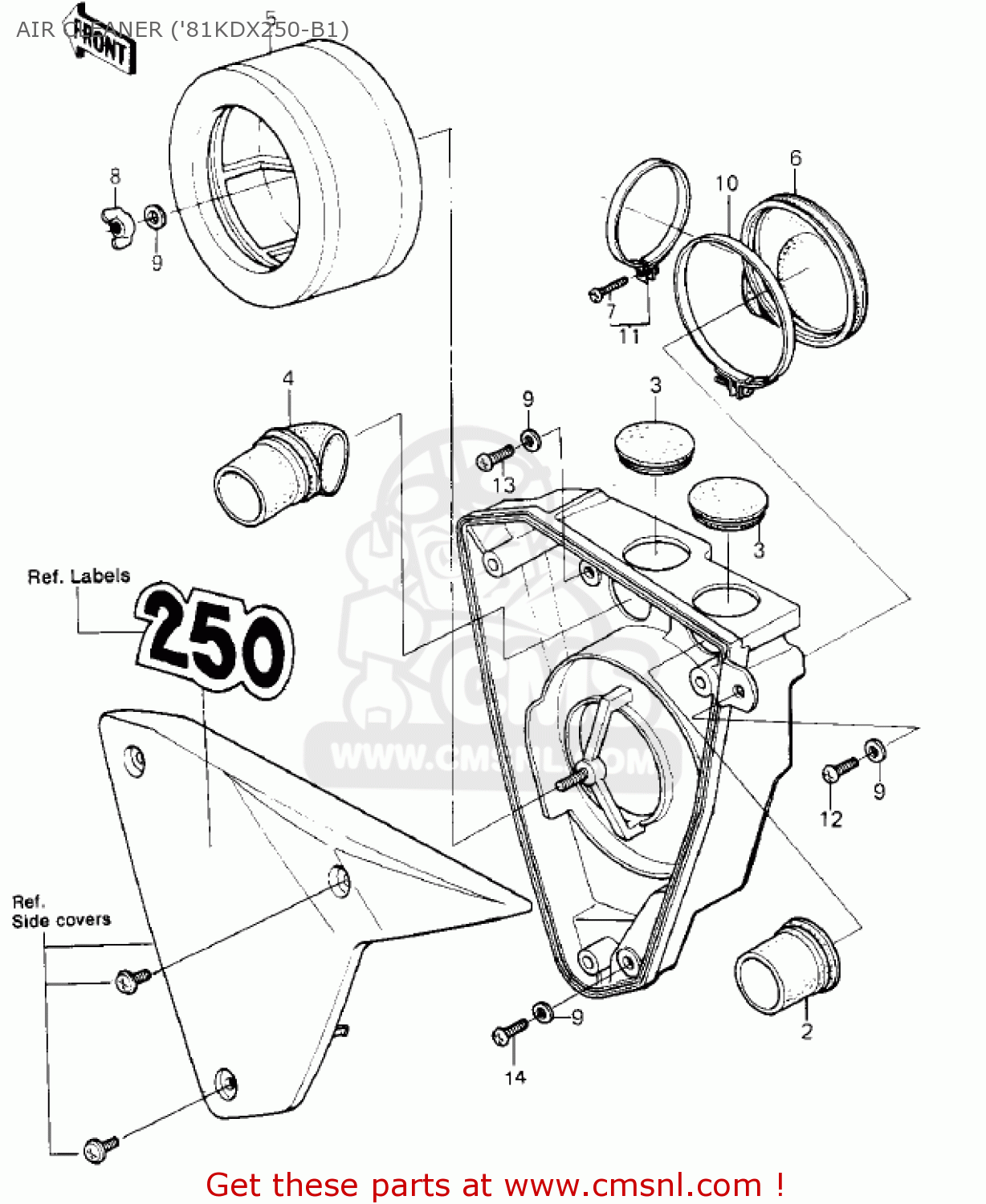

Air cleaner ('81kdx250-b1) diagram KDX250-B1 KDX250 1981 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

110111082
ref: 1

CASE-AIR FILTER

€ 35.50

110121109
ref: 2

CAP,AIR CLEANER

€ 9.00

110121111
ref: 3

CAP,AIR FILTER

€ 7.50

110121123
ref: 4

CAP,AIR FILTER

€ 12.50

110131036
ref: 5

ELEMENT-AIR FILTER

€ 36.50

140731035
ref: 6

DUCT,AIR CLEANER

€ 27.00

220B0635
ref: 7

SCREW-PAN HEAD,6X35

€ 1.00

92016062
ref: 8

NUT,6MM

€ 3.00

92022125
ref: 9

WASHER,6.5X20X1.6

€ 1.00

920371186
ref: 10

CLAMP,AIR CLEANER

€ 7.00

92037068
ref: 11

CLAMP

€ 7.50

220B0612
ref: 12

SCREW-PAN HEAD,6X12

€ 1.00

220B0618
ref: 13

SCREW-PAN HEAD,6X18

€ 2.50

220B0622
ref: 14

SCREW-PAN HEAD,6X22

€ 2.50
