TAIL LAMP

ZX900A10 GPZ900R 1993 NETHERLANDS FG

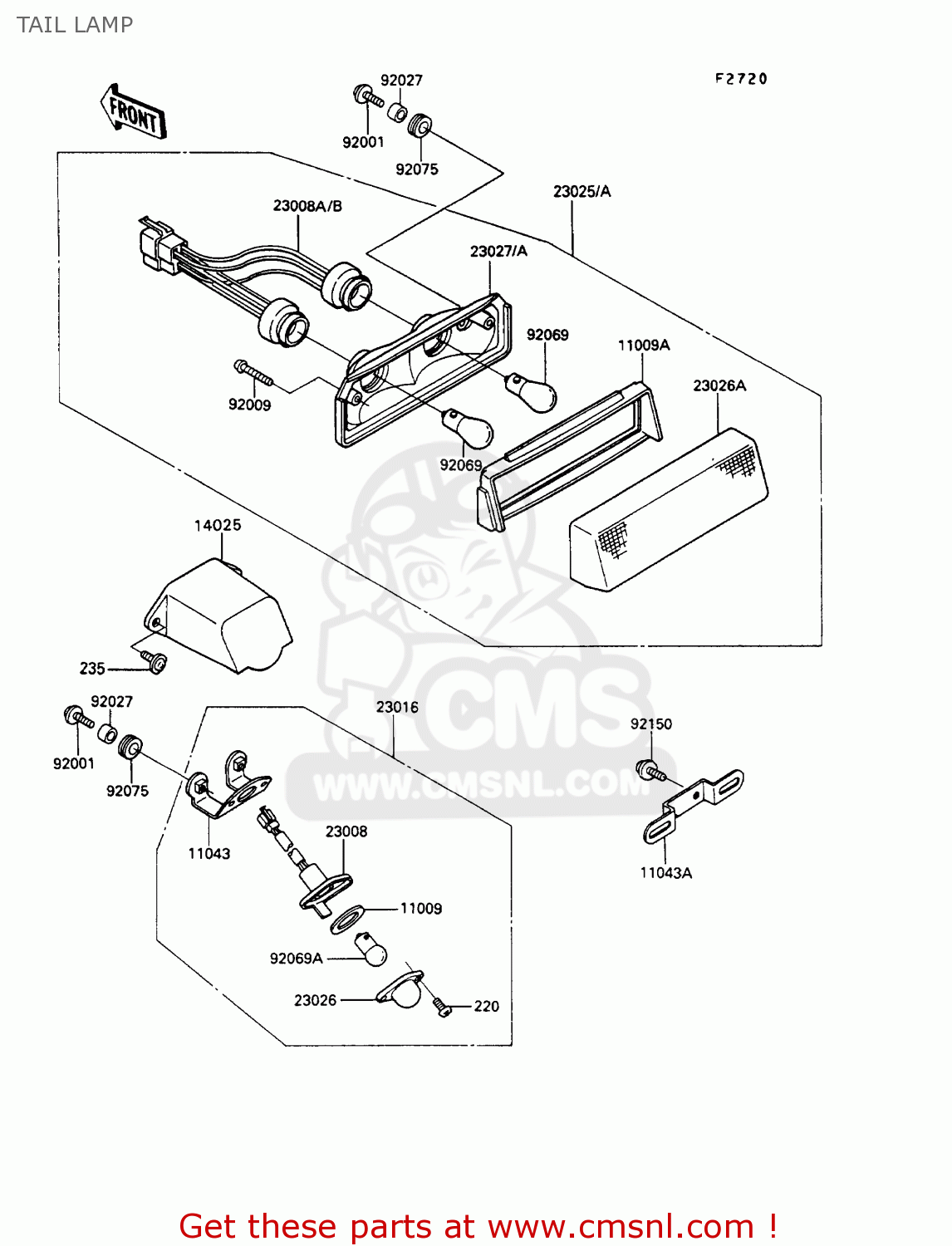

Tail lamp diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG

TAIL LAMP ZX900A10 GPZ900R 1993 NETHERLANDS FG
TAIL LAMP ZX900A10 GPZ900R 1993 NETHERLANDS FG
TAIL LAMP ZX900A10 GPZ900R 1993 NETHERLANDS FG
prices are in EUR
ref
part #
description
quantity
220
220B0410
ref: 220
SCREW-PAN-CROS
220B0410
€ 2.00
235
235C0616
ref: 235
SCREW-PAN-WP-CROS
235C0616
€ 2.50
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
110091372
€ 3.00
11009A
110091404
ref: 11009A
GASKET,TAIL LAMP (NAS)
110091404
€ 13.00
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
110431497
€ 10.00
11043A
110431499
ref: 11043A
BRACKET,REFLECTOR
110431499
€ 12.00
14025
140251821
ref: 14025
COVER,LICENSE PLATE L
140251821
€ 13.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
230081221
€ 7.50
23008A
230081225
ref: 23008A
NL
SOCKET-ASSY,TAIL LAMP
230081225
€ 29.50
23008B
230081238
ref: 23008B
FG
SOCKET-ASSY,TAIL LAMP
230081238
€ 22.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
230161054
€ 54.50
23025
230251106
ref: 23025
NL
LAMP-TAIL
230251106
€ 192.50
23025A
230251107
ref: 23025A
FG
LAMP-TAIL
230251107
€ 192.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
230261054
€ 7.00
23026A
230261056
ref: 23026A
LENS,TAIL LAMP
230261056
€ 22.50
23027
230271055
ref: 23027
FG
BODY-COMP-TAIL LAMP
230271055
€ 29.00
23027A
230271056
ref: 23027A
NL
BODY-COMP-TAIL LAMP
230271056
€ 48.00
92001
920011773
ref: 92001
BOLT,6X20
920011773
€ 2.50
92009
920091056
ref: 92009
SCREW,TAPPING
920091056
€ 2.50
92027
92027120
ref: 92027
COLLAR
92027120
€ 3.00
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
920691055
€ 4.00
92075
92075222
ref: 92075
DAMPER RUBBER,CASE
92075222
€ 4.50
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
