STARTER MOTOR

ZX900A10 GPZ900R 1993 NETHERLANDS FG

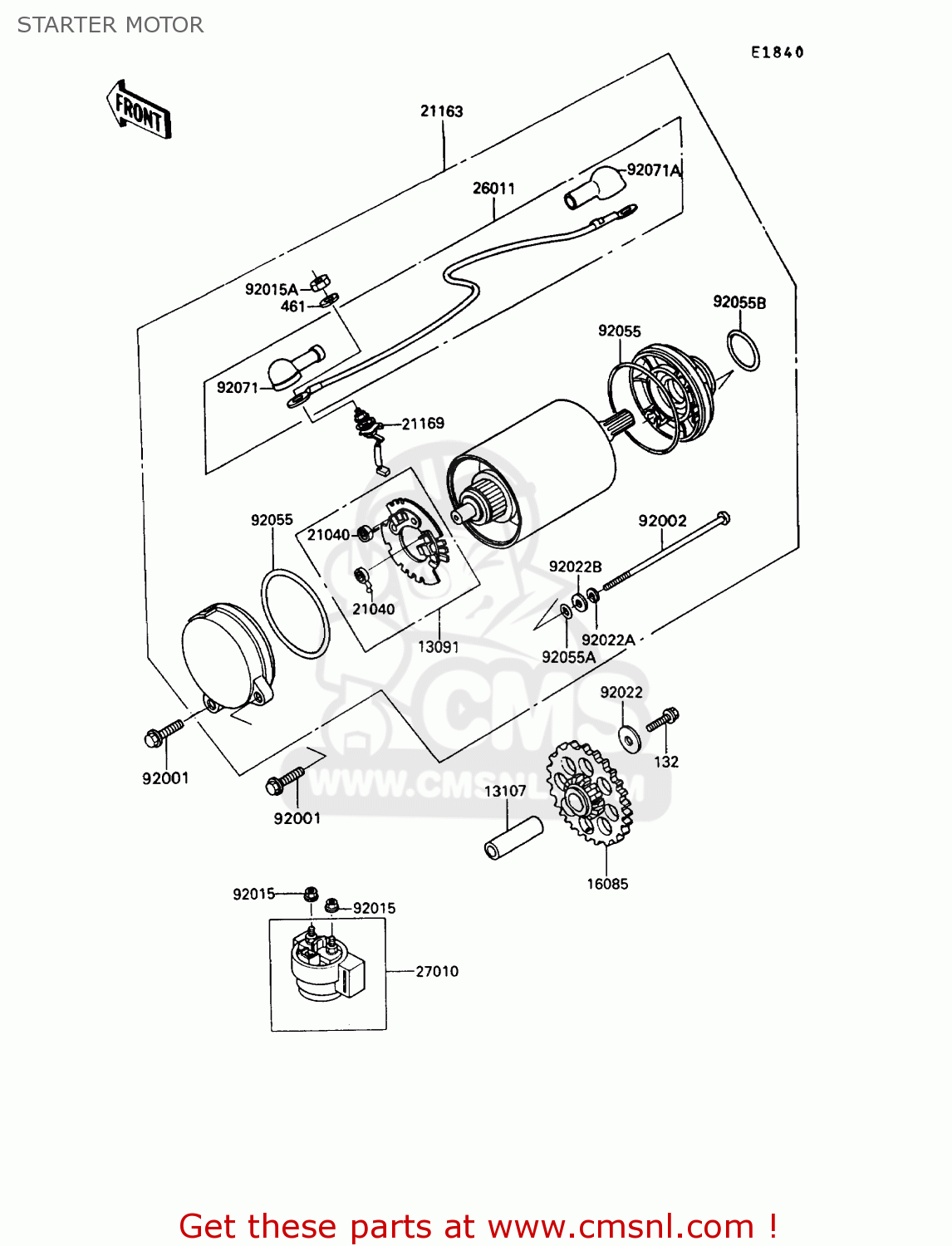

Starter motor diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG

STARTER MOTOR ZX900A10 GPZ900R 1993 NETHERLANDS FG
STARTER MOTOR ZX900A10 GPZ900R 1993 NETHERLANDS FG
STARTER MOTOR ZX900A10 GPZ900R 1993 NETHERLANDS FG
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
13091
130911325
ref: 13091
HOLDER,CARBON BRUSH
130911325
€ 55.00
13107
131071106
ref: 13107
SHAFT,IDLE GEAR
131071106
€ 11.50
16085
160851119
ref: 16085
GEAR,IDLE
160851119
€ 75.50
21040
210401051
ref: 21040
SPRING-BRUSH
210401051
€ 1.50
21163
211631060
ref: 21163
STARTER-ELECTRIC
€ 477.00
21169
211691051
ref: 21169
TERMINAL,STARTER
211691051
€ 49.50
26011
260111286
ref: 26011
WIRE-LEAD,STARTER MOT
260111286
€ 36.50
27010
270101314
ref: 27010
SWITCH,STARTER
270101314
€ 51.50
92001
920011947
ref: 92001
BOLT,6X20
920011947
€ 3.00
92002
920021377
ref: 92002
BOLT
€ 9.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151457
ref: 92015A
NUT,6MM
€ 2.00
92022
920221517
ref: 92022
WASHER,6X19.5X2
920221517
€ 1.50
92022A
920221622
ref: 92022A
WASHER,SPRING,5.1MM
920221622
€ 1.50
92022B
920221623
ref: 92022B
WASHER,5.1X11X1.4
€ 2.00
92055
920551260
ref: 92055
RING-O,62MM
920551260
€ 7.50
92055A
920551261
ref: 92055A
RING-O,4.5MM
920551261
€ 2.00
92055B
920551262
ref: 92055B
RING-O,24.4X3.1
920551262
€ 8.50
92071
920711120
ref: 92071
GROMMET,STARTER TERMI
920711120
€ 8.50
92071A
920711121
ref: 92071A
GROMMET,TERMINAL
€ 8.00
