ENGINE COVER
ZX900A10 GPZ900R 1993 NETHERLANDS FG

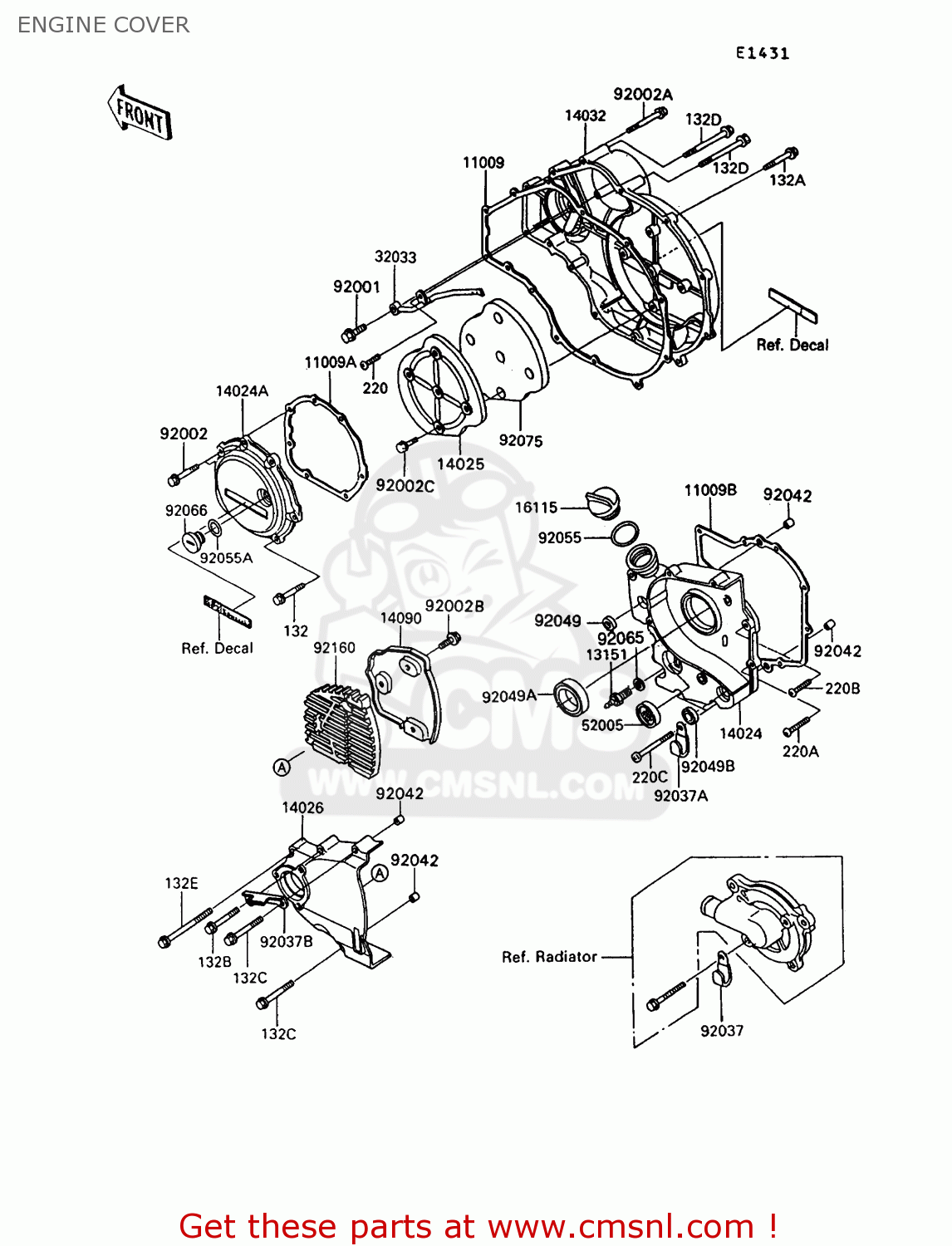

Engine cover diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
ENGINE COVER ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0640
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132J0650
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132J0655
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132J0680
ref: 132E
BOLT-FLANGED-SMALL
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
220A
220B0620
ref: 220A
SCREW-PAN HEAD,6X20
€ 2.50
220B
220B0625
ref: 220B
SCREW-PAN HEAD,6X25
€ 1.50
11009
110091860
ref: 11009
GASKET,CLUTCH COVER (NAS)
€ 9.50
11009A
110091863
ref: 11009A
GASKET,COVER,LH (NAS)
€ 6.50
11009B
110091982
ref: 11009B
GASKET (NAS)
€ 12.00
13151
131511007
ref: 13151
SWITCH,NEUTRAL
€ 9.00
14024
140241716
ref: 14024
COVER,TRANSMISSION
€ 148.50
14024A
140241721
ref: 14024A
COVER,PULSING
€ 111.50
14025
140251895
ref: 14025
COVER,SOUND ARRESTER
€ 14.50
14026
140261173
ref: 14026
COVER-CHAIN
€ 114.00
14032
140321179
ref: 14032
COVER-CLUTCH
€ 240.50
14090
140901142
ref: 14090
COVER,SOUND ARRESTER
€ 7.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
32033
320331204
ref: 32033
PIPE,CLUTCH COVER
€ 20.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
€ 17.50
92001
920011855
ref: 92001
BOLT,BANJO,8X20
€ 5.50
92002
920021343
ref: 92002
BOLT,6X20
€ 4.00
92002A
920021345
ref: 92002A
BOLT,6X40
€ 4.50
92002B
920021449
ref: 92002B
BOLT,6X10
€ 2.50
92002C
920021541
ref: 92002C
BOLT,6X10
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371539
ref: 92037A
CLAMP,L=45
€ 3.00
92037B
920371541
ref: 92037B
CLAMP,OIL HOSE
€ 9.00
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
€ 6.50
92049A
920491070
ref: 92049A
SEAL-OIL,AE2343F0
€ 11.50
92049B
920491186
ref: 92049B
SEAL-OIL,TB13205
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661163
ref: 92066
PLUG,COVER,LH
€ 10.00
92075
920751633
ref: 92075
DAMPER,CLUTCH COVER
€ 81.00
92160
921601308
ref: 92160
DAMPER,CHAIN
€ 24.00
220C
220B0650
ref: 220C
SCREW-PAN HEAD,6X50
€ 2.00
