CARBURETOR PARTS
ZX900A10 GPZ900R 1993 NETHERLANDS FG

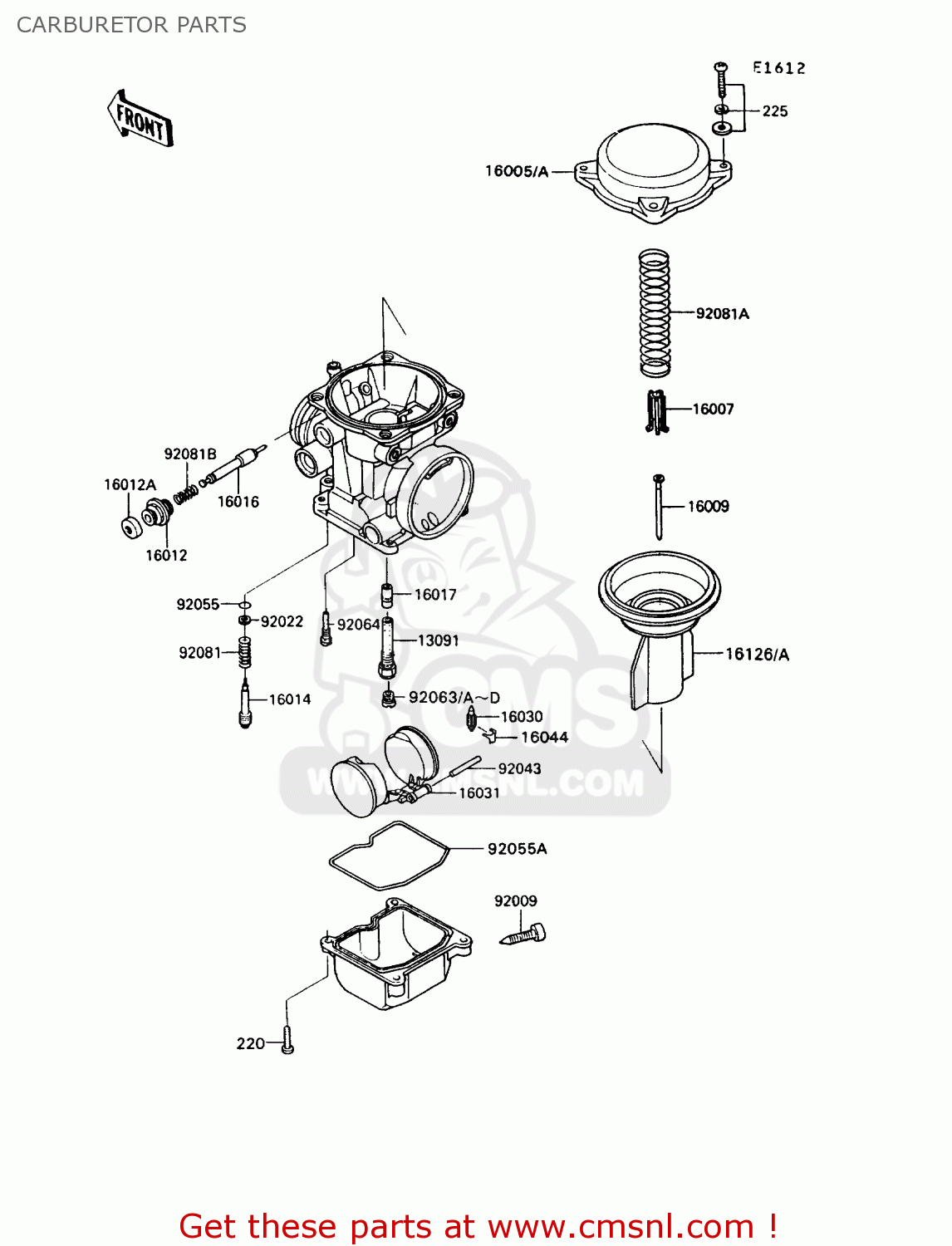

Carburetor parts diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
CARBURETOR PARTS ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
13091
130911347
ref: 13091
HOLDER,NEEDLE JET
€ 20.00
16005
160051054
ref: 16005
NL
TOP-CHAMBER,MIXING
€ 30.50
16005A
160051055
ref: 16005A
FG
TOP-CHAMBER,MIXING
€ 47.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091618
ref: 16009
NEEDLE-JET,N67I
€ 27.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171266
ref: 16017
JET-NEEDLE,#6
€ 39.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261163
ref: 16126
NL
VALVE,VACUUM
€ 157.50
16126A
161261170
ref: 16126A
FG
VALVE,VACUUM
€ 168.00
92009
920091551
ref: 92009
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551222
ref: 92055A
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631001
ref: 92063
JET-MAIN,#95
€ 10.00
92063A
920631005
ref: 92063A
JET-MAIN,#98
€ 10.00
92063B
920631008
ref: 92063B
JET-MAIN,#100
€ 9.00
92063C
920631009
ref: 92063C
JET-MAIN,#105
€ 10.00
92063D
920631115
ref: 92063D
JET-MAIN,#102
€ 10.00
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811760
ref: 92081A
SPRING,VACUUM VALVE
€ 15.00
92081B
920811761
ref: 92081B
SPRING,STARTER PLUNGE
€ 6.00
