REAR HUB

ZX900A10 GPZ900R 1993 NETHERLANDS FG

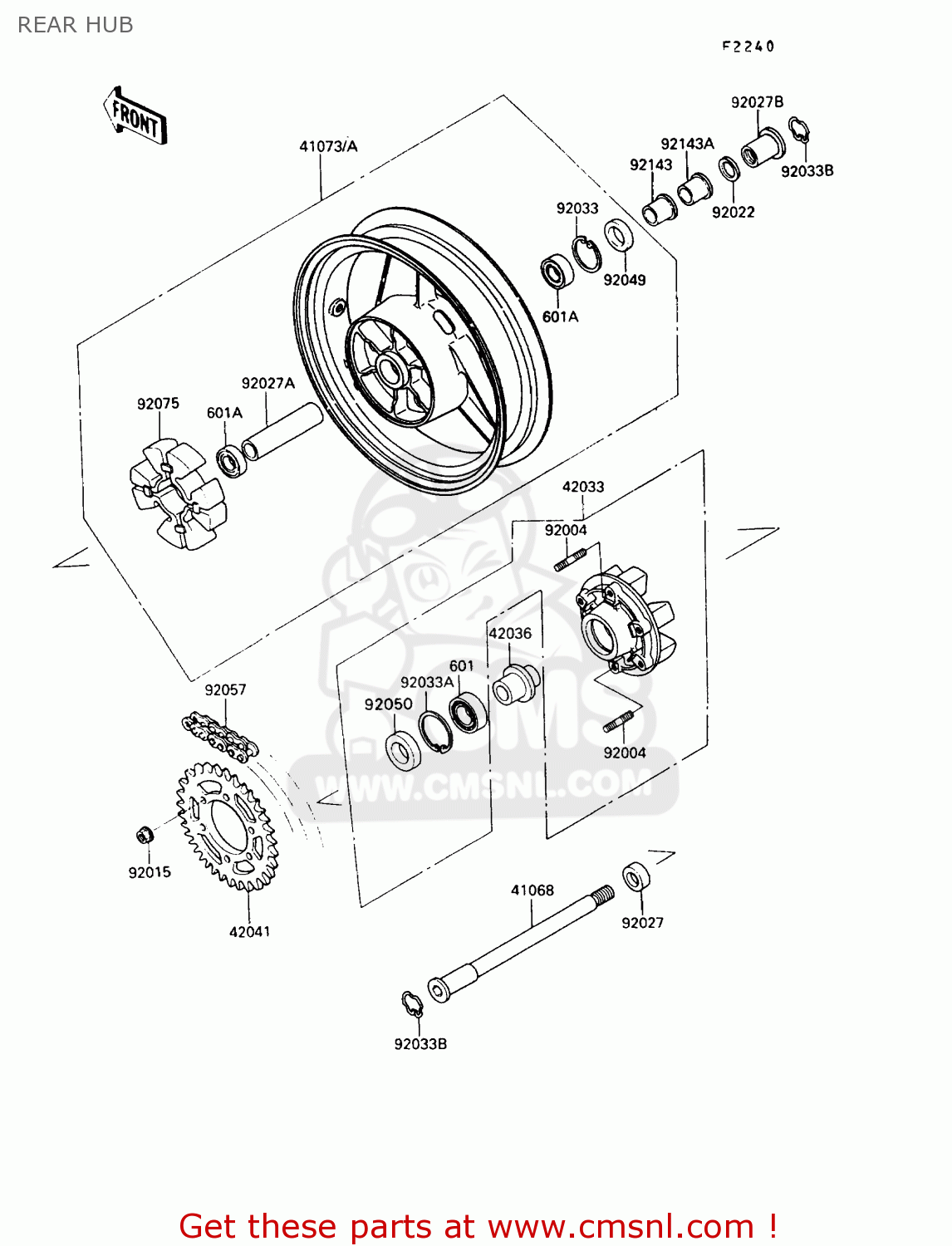

Rear hub diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG

REAR HUB ZX900A10 GPZ900R 1993 NETHERLANDS FG
REAR HUB ZX900A10 GPZ900R 1993 NETHERLANDS FG
REAR HUB ZX900A10 GPZ900R 1993 NETHERLANDS FG
prices are in EUR
ref
part #
description
quantity
601
601B6206G
ref: 601
BEARING
601B6206G
€ 19.50
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
41068
410681162
ref: 41068
AXLE,RR
410681162
€ 75.00
41073
410731471EF
ref: 41073
WHEEL-ASSY,RR,GOLD NO
€ 969.00
41073A
410731471X4
ref: 41073A
WHEEL-ASSY,RR,RED
€ 814.50
42033
420331110
ref: 42033
COUPLING-ASSY,RR HUB
€ 302.00
42036
420361030
ref: 42036
SLEEVE,RR HUB COUPLIN
420361030
€ 19.00
42041
420411202
ref: 42041
SPROCKET-HUB,48T
420411202
€ 62.50
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92022
920221618
ref: 92022
WASHER,23X32X2.3
920221618
€ 4.00
92027
920271713
ref: 92027
COLLAR,RR HUB COUPLIN
920271713
€ 16.00
92027A
920271714
ref: 92027A
COLLAR,L=104
920271714
€ 14.50
92027B
920271810
ref: 92027B
COLLAR,RR AXLE,L=28
920271810
€ 21.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331044
ref: 92033A
CIRCLIP 62 M/M
920331044
€ 7.50
92033B
920331156
ref: 92033B
RING-SNAP,RR AXLE
920331156
€ 3.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92050
92050027
ref: 92050
OIL SEAL
92050027
€ 13.50
92057
920571163
ref: 92057
CHAIN,DRIVE,EK50KVD0X
920571163
€ 129.50
92075
920751593
ref: 92075
DAMPER,SHOCK,RR HUB
920751593
€ 59.00
92143
921431210
ref: 92143
COLLAR,RR AXLE,L=26
921431210
€ 13.50
92143A
921431405
ref: 92143A
COLLAR,RR AXLE,L=35.5
€ 25.50
